How to Wirelessly Connect Remote Temperature/Humidity
Sensors over IP to the E-2D

Product Application Notes

The E-MICRO-T(RHP) Remote Temperature/Humidity Sensors over IP can function as an IP-connected remote sensor for the E-2D. To add a remote IP sensor, access the web interface and select Monitoring > IP Sensors. Click on the "Add New IP Sensor" link on the bottom and key in the description and IP address of the E-MICRO-T(RHP) to connect it to the E-2D. Up to eight remote IP sensors can be connected. All sensors connected, including the Remote Temperature/Humidity Sensors over IP, to the E-2D can be viewed on one summary page

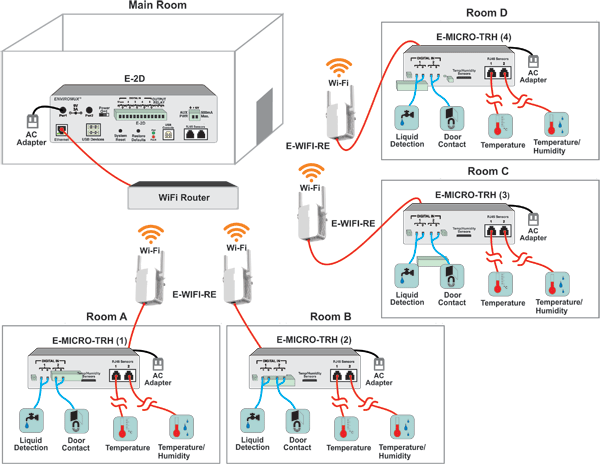

Using a wireless router, connect the E-MICRO-T(RHP) to a Wi-Fi Range Extender to create a Wireless Environment Monitoring System. This will allow you to configure, monitor, and receive alerts without the use of a wired network connection.

Application Note - How to Wirelessly Connect Remote Temperature/Humidity Sensors over IP to the E-2D
