Clearance: Rackmount TFT/LCD Monitor

7RU 17" monitor provides a wide viewing angle with high contrast.

Limited stock. All sales final on clearance items.

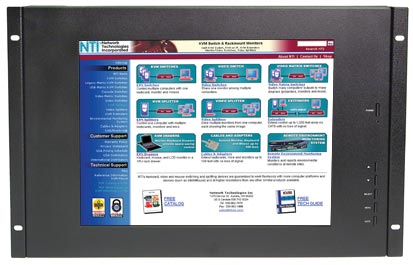

RACKMUX-VV17 rackmount TFT LCD Flat Screen Monitor

RACKMUX-VV17-CL

Price each:
~~$1,100~~
$600

Limited stock.
All sales final on
clearance items.

Features & Applications
The RACKMUX® Rackmount TFT/LCD Monitor provides a wide viewing angle with high brightness and contrast. It supports true plug-and-play functionality and does not require any additional video drivers or interface adapters. Equipped with On Screen Display (OSD). Lexan™ shield protects the TFT panel.	Space-saving. Extra rackmounting space available behind the monitor. 7RU (12.25") high. Designed to fit in a standard 19" rack/cabinet. Always visible. Gives an impressive look to your server rack.

Specifications

17" active matrix TFT LCD flat panel monitor.
1280x1024 maximum video resolution.
Sync Frequency:
- Horizontal: 31 to 82 KHz.
- Vertical: 56 to 75 Hz.
Sync: H/V Separate (TTL).
250 nits brightness and 400:1 contrast ratio typical.
OSD controls for brightness, contrast, horizontal and vertical position, and auto adjust.
Supports the DDC1 and DDC2B protocol.

Hosts

Compatible with PC, SUN or MAC computers.

Power

110 or 220 VAC at 50 or 60 Hz via AC adapter.

Environmental

Operating temperature: 32°F to 122°F (0°C to 50°C).
Storage temperature: -4°F to 140°F (-20°C to 60°C).
Operating Relative Humidity: 10% to 85% RH.

Cables

6 ft. 15-pin HD VGA cable.
6 ft. IEC line cord.

Dimensions

WxDxH (Inches): 19x2.5x12.25
Weight: 25 lbs.
