SUN KVM SPLITTERS

ALLOW UP TO 3 KEYBOARDS, MICE & MONITORS
TO BE CONNECTED TO THE SAME SUN COMPUTER

Access one SUN computer from multiple locations. Also know as Sun KVM splitter, keyboard monitor mouse splitter, Sun keyboard splitter, reverse kvm switch.

VOPEX-2KM-SUN and VOPEX-4K-SUN

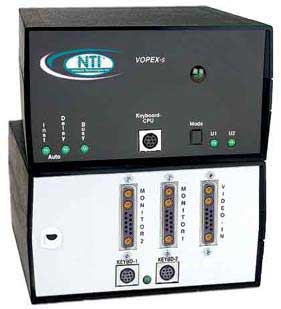

VOPEX-2KM-SUN Splitter (Front & Back)

Features & Applications

Connect up to three keyboards, mice and monitors to one SUN computer.
  • Access one computer from multiple locations.
  • Multiple users can enter data into the same program.
  • Interconnect NTI switches and splitters for complex applications.
  • Compatible with all models of SUN computer.
  • Startup keys are supported.
Sparc International Member Call Me Toll Free
Instant call back
(8am-6pm EST)

Specifications

Monitor
  • Female 13W3 connectors.
  • Bandwidth is 200 MHz.
  • 1900x1200 resolution with no degradation.
Keyboard
  • Female 8 pin miniDIN connectors.
  • Compatible with type 4 and 5.
  • Typing activates that keyboard.
Mouse
  • Connects to keyboard.
  • Moving activates that mouse in Inst or Delay Mode.
Power
  • 110 or 220 VAC at 50 or 60 Hz.
Environmental
  • Operating temperature: 32°F to 100°F (0°C to 38°C)
  • Storage temperature: -20°F to 140°F (-30°C to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH
Cables
  • Three-foot interface cables are provided for connecting your SUN computer to the NTI splitter.

Control Methods

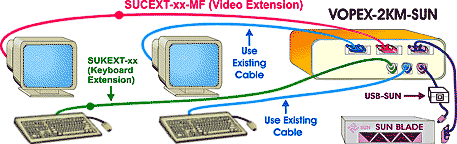

Block diagram of SUN KVM splitter
  • Press MODE button to cycle through all 4 modes. LEDs indicate which mode is selected.
  • USER 1 Mode Only USER 1 can type or move the mouse.
  • USER 2 Mode Only USER 2 can type or move the mouse.
  • USER 3 Mode (FOR 3K-SUN/3KM-SUN) Only USER 3 can type or move the mouse.
  • INST Mode All user(s) have immediate access after last keystroke or mouse movement occurs on active user.
  • DELAY Mode Locked out user(s) must wait five seconds after last keystroke or mouse movement occurs on active user.
AVAILABLE SIZES
Supported Devices NTI Part # # of
Ports
Desktop Size
WxDxH (In.)
Keyboard &
Mouse
VOPEX-2K-SUN 2 6x6.2x2.5
VOPEX-3K-SUN 3 6x6.2x2.5
Keyboard,
Monitor & Mouse
VOPEX-2KM-SUN 2 6x6.2x2.5
VOPEX-3KM-SUN 3 6x6.2x2.5
