Ultra Compact Rackmount PS/2 KVM Drawer

Monitor Keyboard Drawer provides space-saving, convenient control. Designed to fit in shallow racks/cabinents.

Also known as: rack mount keyboard drawer, keyboard monitor drawer, PS2 KVM drawers, keyboard LCD drawer, rackmount keyboard drawer, folding monitor.

Discontinued
No longer available

Additional Product Information

CAD Drawing:
KVM Drawer - RACKMUX-P10

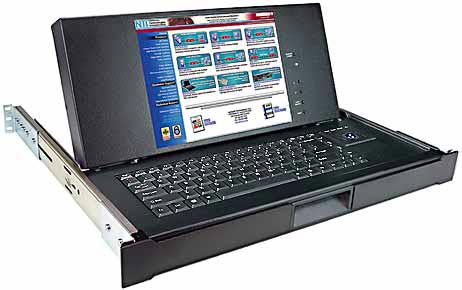

RACKMUX-P10 Rack Mount KVM Drawer

Features & Applications

The RACKMUX® Ultra Compact PS/2 KVM Console Drawer combines a rack mount LCD monitor, keyboard and trackball mouse in a space-saving 1RU industrial strength drawer. This KVM drawer takes 85% less space and requires 80% less ventilation than a standard keyboard, monitor and mouse.
  • Available with 10.4” Active Matrix TFT LCD flat panel monitor.
  • Equipped with On Screen Display (OSD).
  • Drawer locks into place when open to prevent it from sliding out of the rack.
  • Designed to fit in shallow racks/cabinets.

Specifications

Hosts
  • Compatible with PS/2 and Unix computers.
  • Use with NTI Multi-Platform KVM Switches to control PC, SUN and MAC computers.
Monitor
  • 10.4" Active Matrix TFT LCD Flat Panel Monitor.
  • 1024x768 video resolution.
  • Supports separate TTL level sync and composite sync. Does not support Sync on Green. Not compatible with all Sun Microsystems.
  • Sync Frequency: Horz 31.5 KHz-80 KHz, Vert 56-75 Hz.
  • OSD controls for brightness, contrast, auto adjust, Horz- and Vert-center alignment, clock/phase, color adjustment.
  • 150 nits brightness and 450:1 contrast ratio typical.
Trackball Mouse
  • 6 pin MiniDIN (PS/2) connector for connecting to host.
Regulatory Approvals
  • RoHS
Keyboard
  • 87-key US layout keyboard.
  • 6 pin miniDIN connector for connecting to host.
Cables
  • 5-foot 15HD VGA cable included.
  • 7-foot 6-pin miniDIN keyboard/mouse Y-cable included.
  • 6-foot DC power supply cable included.
Power
  • 110 or 220 VAC at 50 or 60 Hz via AC Adapter.
  • Power consumption: 25W
  • Maximum Inrush Current: 15A
Dimensions
  • WxDxH (in): 19x19x1.75
  • Fits 19" to 29" rack depths via adjustable mounting brackets.
  • Weight: 20.5 lbs.
Environmental
  • Operating temperature: 50°F to 122°F (10°C to 50°C).
