Clearance: KVM Drawer with PC SUN KVM Switch

Control up to 8 PC and SUN computers from 1RU of rack space.

Limited stock. All sales final on clearance items

Additional Product Information

Customer Testimonial
CAD Drawings:
RACKMUX-P15-4UNV-CLR
RACKMUX-P15-8UNV-CLR

zoom Click here to zoom in on image

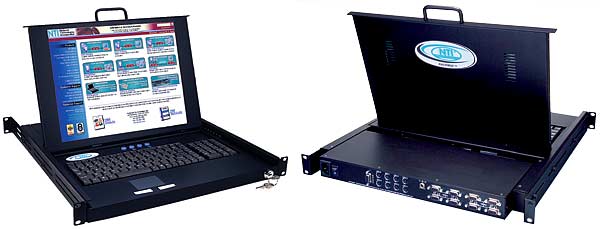

RACKMUX-P15-8UNV-CLR (Front and Back)



Features & Applications

The RACKMUX-Pxx-xUNV combines a rackmount LCD monitor, PS2 keyboard, PS2 touchpad mouse and NTI's NODEMUX® 4- or 8-port PC SUN KVM Switch into a space-saving 1RU industrial strength drawer.
  • Available with forward-folding 15" Active Matrix LCD monitor.
    • 1024x768 video resolution
  • Equipped with On Screen Display (OSD).
  • Front panel conceals the unit when it is not in use.
  • Designed to fit into a standard 19" rack/cabinet.
  • Display automatically powers off when in closed position.
  • Control up to eight PC, SUN, and MAC computers.
  • Drawer locks into place when open to prevent it from sliding out of the rack.

Specifications


KVM drawer rack with SUN Switch
Power
  • Monitor: 110 or 220 VAC at 50 or 60 HZ via AC adapter.
  • Switch: 110 or 220 VAC at 50 or 60 Hz via IEC connector.
  • Power consumption: 25W
  • Maximum Inrush Current: 17A
MTBF
  • RACKMUX-P15-4UNV: 38,016 hrs
  • RACKMUX-P15-8UNV: 36,381 hrs
Dimensions
  • WxDxH (in): 19x21.6x1.75
  • Drawer is adjustable to various rack depths from 21.6" to 31.5".
Environmental
  • Operating temperature: 32°F to 104°F (0°C to 40°C).
  • Storage temperature: -4°F to 140°F (-20°C to 60°C).
  • Operating and Storage Relative Humidity: 5 to 95% non-condensing RH.

Rackmount PS/2 KVM Drawer Specifications
NODEMUX® PC SUN KVM Switch Specifications

Extension Rail Option


RACKMUX-EXT-RL
  • Allows adjustments to various rack depths from 24.1" to 34.8"

KVM Drawer with SUN KVM Switch

NTI Part # Screen Size # of CPUs Price $ # to Buy Download a
PDF Manual
RACKMUX-P15-4UNV-CLR 15" 4 1,830 1,290 PDF Manual
RACKMUX-P15-8UNV-CLR 15" 8 1,960 1,420
RACKMUX-EXT-RL N/A N/A 55

Limited stock. All sales are final on clearance items.

13W3 SUN Video Port to VGA Port Adapter
NTI Part# Price $ # to Buy
13W3M-15HDF 17

Cables

Connects PS/2 Computers to an NTI Universal
Switch (Male to Male) VKTINT-xx-MM
Length(ft.) Price $ # to Buy Length(ft.) Price $ # to Buy
35 2510
66 3523
107 5030
158
Connects SUN Computers to an NTI Universal
Switch (Male to Male) SKTINT-xx-MM
Length(ft.) Price $ # to Buy Length(ft.) Price $ # to Buy
34 2510
66 3521
107 5029
158
Connects VGA & SVGA video port to an NTI Universal
Switch (Male to Male) VEXT-xx-MM
Length(ft.) Price $ # to Buy Length(ft.) Price $ # to Buy
313 3538
618 5053
1020 7563
1522 10080
2528
