Clearance: KVM Drawer with USB KVM Switch

Control up to 8 USB computers from 1RU of rack space.

Limited stock. All sales final on clearance items

Additional Product Information

View CAD Drawings CAD Drawings:
RACKMUX-UW15-4USB-CLR
RACKMUX-UW15-8USB-CLR

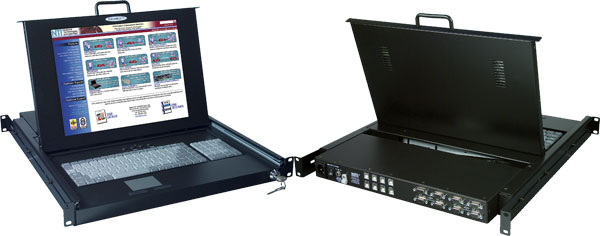

RACKMUX-15USBV-8 Rackmount KVM Drawer with USB Switch
zoom Click here to zoom in on image
RACKMUX-UW15-8USB-CLR (Front and Back)

Features & Applications

The RACKMUX-UW15-xUSB-CLR combines a rackmount LCD monitor, USB keyboard, USB touchpad mouse and NTI's UNIMUX™ 4- or 8-port USB KVM Switch into a space-saving 1RU industrial strength drawer.
  • Available with a forward-folding 15" TFT/LCD monitor.
    • 1024x768 video resolution
  • Control up to eight USB-enabled PC, SUN, and MAC computers.
  • Display automatically powers off when in closed position.
  • Designed to fit into a standard 19" rack/cabinet.
  • Front panel conceals the unit when it is not in use.
  • Drawer locks into place when open to prevent it from sliding out of the rack.
  • Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.

Specifications

Power
  • Monitor: 110 or 220 VAC at 50 or 60 HZ via AC adapter.
  • Switch: 110 or 220 VAC at 50 or 60 Hz via IEC connector.
  • Power consumption: 30W
  • Maximum Inrush Current: 21A
MTBF
  • RACKMUX-UW15-4USB-CLR: 44,067 hrs
  • RACKMUX-UW15-8USB-CLR: 38,223 hrs
Dimensions
  • WxDxH (in): 19x21.6x1.75
  • Drawer is adjustable to various rack depths from 21.6" to 31.5".
Environmental
  • Operating temperature: 32°F to 104°F (0°C to 40°C).
  • Storage temperature: -4°F to 140°F (-20°C to 60°C).
  • Operating and Storage Relative Humidity: 5 to 95% non-condensing RH.

Rackmount USB KVM Drawer Specifications
UNIMUX USB KVM Switch Specifications

Extension Rail Option

Extension Rail
RACKMUX-EXT-RL
  • Allows adjustments to various rack depths from 24.1" to 34.8".
Example application

USB KVM Drawers with USB KVM Switch

NTI Part # Screen
Size		 # of
CPUs		 Size (In.)
WxDxH		 Price
$		 # to
Buy		 Download a
PDF Manual
RACKMUX-UW15-4USB-CLR 15 4 19x21.6x1.75 1,875 1,335 Download PDF Manual
RACKMUX-UW15-8USB-CLR 15 8 19x21.6x1.75 1,975 1,435
RACKMUX-EXT-RL N/A N/A N/A 55
Limited stock. All sales final on clearance items.
Compatible All-in-1 VGA +
USB KVM Male to Male Cable
(USBVEXT-xx-MM)
Length (Feet) Price $ # to Buy
3 13
6 18
10 23
15 31
VGA + USB KVM Cable
USBVEXT-xx-MM
