SUN KVM SWITCH OPTIONS

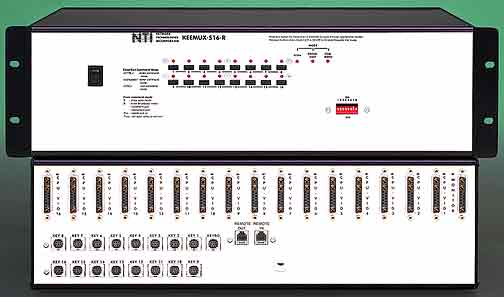

Control

• Baud rate 300 through 9600, DIP switch selectable.
• Use DIP switches to address up to 15 units, all of which can be daisy chained and controlled by one serial port.
• Seven segment displays show what input is connected to each output.

Commands

• RS - causes switch to reset so that IN1 connects to OUT1, IN2 connects to OUT2, etc.
• CS - Causes one INx/OUTx connection to occur.
• CA - causes all inputs to connect to specified output.
• RO - reads what input is connected to specified output.
• RU - Reads size of matrix, reports number of inputs and number of outputs on specified switch.

• Optional - sold separately.

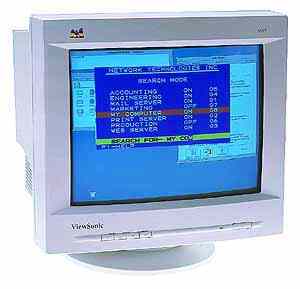

• Select or list computers by name or port number.
• Type <CONTROL> + <`> (accent) to activate OSD.
• Names can have up to 14 characters.
• CONTROL, SCAN and BROADCAST functions.
• Shows computers' names on cascaded switches on up to 128 separate ports.
• SEARCH MODE lets the user type in the first few letters of the computer's name and the OSD will locate it.
• Help Screens assist users with the On Screen Display.
• Power status of each computer is displayed.
• OS and software independent.
• Our OSD comes built in to your switch, so you don't have to install additional hardware or software.
• Add "-OSD" to the end of the part number when ordering this option.
