USB KVM SWITCH OPTIONS

RS232 CONTROL

Features & Applications
Control
  • Baud rate 300 through 9600.
  • Address up to 15 units, all of which can be daisy-chained and controlled by one serial port.
Commands
  • RS - causes switch to reset so that IN1 connects to OUT1, IN2 connects to OUT2.
  • CS - causes one INx/OUTx connection to occur.
  • CA - causes all inputs to connect to specified output.
  • RO - reads what input is connected to specified output.
  • RU - reads size of matrix, reports number of inputs and number of outputs on specified switch.

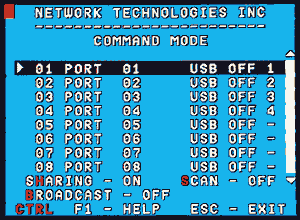

(OSD) ON SCREEN DISPLAY OPTION

On Screen Display Option Features & Applications
  • Not available on 2 port switches.
  • Use keyboard or mouse to operate the Universal switch from menus superimposed onto your monitor.
  • Type CONTROL +` to activate OSD.
  • Control, Scan, & Broadcast functions.
  • View vital port information.
  • Search for ports by name.
  • Search Mode lets the user type in the first few letters of the computer's name and the OSD will locate it.
  • Names can by up to 12 characters long.
  • Shows names of computers on cascaded switches up to 128 ports.
  • Displays the computer's platform next to its name.
  • Modify the size and position of the OSD.
  • Help Screens assist users with the OSD.
  • OS- and software-independent.
  • Our OSD comes built into your switch, so you do not have to install additional hardware or software.

SECURITY FEATURE Built into (OSD)

Features & Applications
Control
  • New advanced security available.
  • Old units can be modified to include new security features.
  • Each user password & name can be up to 15 characters long, and each switch can store up to 63 users.
Commands
  • Administrator can enable or disable all security features and select which computers each user can access.
  • Once security is enabled, a user or administrator must "log in" in order to access any of the computers connected to the switch.


RACKMOUNT OPTION

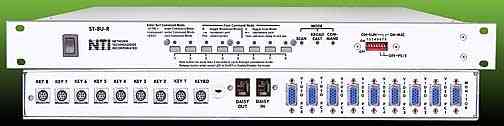

8 Port Universal Switch in Rackmount Enclosure

Features & Applications

  • A 8 port switch for keyboard, monitor & mouse in rack enclosure.
  • Any NTI switch is available in a rackmount enclosure, see the price list for cost and size information.
  • Add "-R" to Part # for Rackmounted in a 19" metal case.

Prices and Sizes
Prices & Sizes
