Multiple KVM Extender

Extend control away from up to 10 PCs and/or NTI KVM switches

Also known as: Multiple KVM extender, KVM extender, kvm extension, pc extender, Rackmount KVM Extender, Rack mount KVM Extension, CAT5 KVM Extender.
XTENDEX-ST-C5KVMX10-600-R Multiple KVM Extender

Additional Product Information

Application Note: Quick Reconfiguration between Secure/Non-Secure Data Centers
Application Note: Extend control from multiple PS/2 computers up to 600 feet
Customer Testimonial
Data Sheet (PDF)
 zoom Click here to zoom in on image

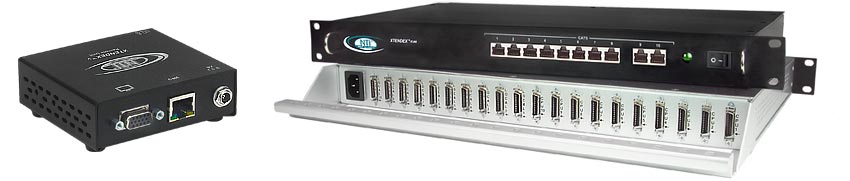

ST-C5KVM-R-600 Receiver with XTENDEX® ST-C5KVMX10-600-R (Front and Back)
Designed and manufactured in the USA

Features & Applications

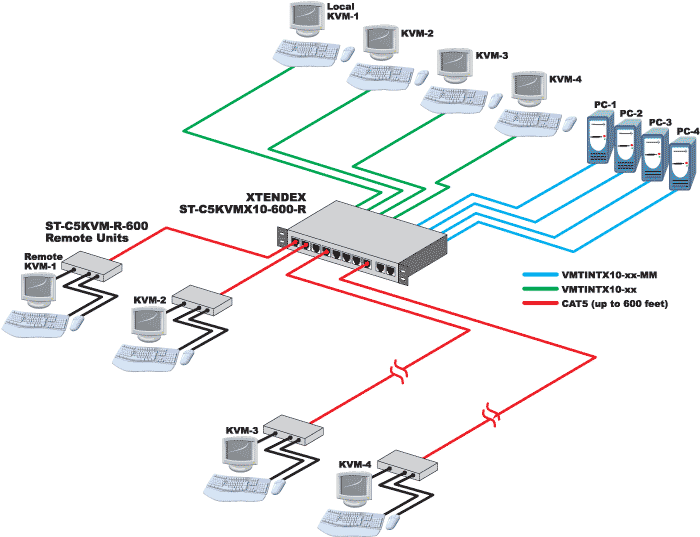

The XTENDEX® Multiple KVM Extender consists of ten ST-C5KVM-L-600 local units grouped together in a 1RU rack. Connect up to ten ST-C5KVM-R-600 remote units up to 600 feet with CAT5 cable.
  • Sharpest and clearest VGA quality over CAT5 of any manufacturer.
  • Supports twenty users: ten local and ten remote.
  • Provides local KVM access.
  • Allows local and remote access to network servers.
  • Cabling runs are simplified with NTI's high density KVM cables - used for local KVM access and computer connection.
  • Built-in surge protection.
  • Keep-alive keyboard/mouse emulation for flawless operation.
  • Use in-house CAT5 wiring to locate a keyboard, monitor and mouse remotely.
  • Features a power LED to indicate when power has been applied.
  • Cable management shelf included.
  • Available with optional stereo audio or RS232 control.
  • High quality construction.

Specifications

Rackmount Local Unit
Hosts
  • Supports ten PCs and/or NTI Switches.
  • Multiplatform support: Windows 2000/XP/Vista/Server 2000/2003/2008, Linux, and FreeBSD.
  • Female 26-pin SCSI II connectors for computer connection.
Local Access
  • Crisp and clear 1920x1440 video resolution.
  • Female 26-pin SCSI II connectors for local KVM connection.
Power
MTBF
  • ST-C5KVMX10-600-R: 59,825 hrs, ST-C5KVMAX10-600-R: 58,890 hrs, ST-C5KVMRSX10-600-R: 56,030 hrs
Environmental
  • Operating temperature: 32°F to 100°F (0°C to 38°C)
  • Storage temperature: -20°F to 140°F
    (-30°C to 60°C)
  • Operating and Storage Relative Humidity:
    17 to 90% non-condensing RH.
Video Quality Adjustment
  • Automatically adjusts the video quality to compensate for varying lengths of CAT5 cable.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years
Receiver (Remote Unit)
  • Crisp and clear 1024x768 resolution at 600 feet; higher resolution supported at shorter distances.
  • Female 15-pin HD connector.
  • Female 6-pin miniDIN connectors.
  • Optional 3.5mm stereo audio connection.
  • Optional male 9-pin D connector for RS232.
Video Quality Adjustment
  • Automatically adjusts the video quality to compensate for varying lengths of CAT5 cable.
Power
MTBF
  • ST-C5KVM--R-600: 80,375 hrs, ST-C5KVMA-R-600: 79,710 hrs, ST-C5KVMRS-R-600: 79,237 hrs
Environmental
  • Operating temperature: 32°F to 100°F (0°C to 38°C)
  • Storage temperature: -20°F to 140°F (-30°C to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Cables

Options
  • NTI High Density cables between user devices and the XTENDEX Multiple KVM Extenders are required for proper operation.
  • NTI High Density cables between the CPUs and the XTENDEX Multiple KVM Extenders are required for proper operation.
  • Cables not included.
Stereo Audio
  • Stereo audio can be heard both locally and remotely.
  • Frequency response: 20 Hz to 20 kHz, +/-1 dB.
  • Signal-to-Noise Ratio (SNR): 76 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%.
  • Stereo crosstalk: -70 dB
  • Input impedance: 10k Ohms.
  • Line level output; supports multimedia speakers.
  • Maximum I/O levels: 3.1 Vp-p (line level).
RS232
  • Supports TXD, RXD, DTR, DSR, CTS, and RTS.
  • Baud rate up to 56,000.
  • Support for a touch screen monitor.
XTENDEX ST-C5KVMX10-600-R Multiple KVM Extender

Distances and Resolutions for
CAT5/CAT5e and CAT6 cables
Cable Distance
(feet)		 Resolution
CAT5/
CAT5e
 600 1024x768 at 60Hz
400 1280x1024 at 60Hz
300 1600x1200 at 60Hz
100 1920x1440 at 60Hz
CAT6 300 1024x768 at 60Hz
200 1280x1024 at 60Hz
100 1920x1440 at 60Hz

Download a PDF Manual

ST-C5KVMX10-600-R Download PDF Manual
ST-C5KVMAX10-600-R
ST-C5KVMRSX10-600-R

Multiple KVM Extender

Ten Local Transmitters in 1RU Price $ # to Buy Remote Receiver Price $ # to Buy
ST-C5KVMX10-600-R 2,075 ST-C5KVM-R-600 200
Cables for KVM to Local Rack
(Male to Female) VMTINTX10-xx		 Cables for PC to Local Rack
(Male to Male) VMTINTX10-xx-MM
Part # Length Price $ # to Buy Part # Length Price $ # to Buy
VMTINTX10-33 ft. 22 VMTINTX10-3-MM 3 ft. 22
VMTINTX10-6 6 ft. 26 VMTINTX10-6-MM 6 ft. 26
VMTINTX10-10 10 ft. 34 VMTINTX10-10-MM 10 ft. 34
VMTINTX10-1515 ft. 41 VMTINTX10-15-MM 15 ft. 41
VMTINTX10-2525 ft. 56 VMTINTX10-25-MM 25 ft. 56

Multiple KVM Extender With Audio
Ten Local Transmitters in 1RU Price $ # to Buy Remote Receiver Price $ # to Buy
ST-C5KVMAX10-600-R 2,365 ST-C5KVMA-R-600 215
Cables for KVM & Audio to Local Rack
(Male to Female) VMATINT-xx		 Cables for PC w/ Audio to Local Rack
(Male to Male) VMATINT-xx-MM
Part # Length Price $ # to Buy Part # Length Price $ # to Buy
VMATINT-3 3 ft. 27 VMATINT-3-MM 3 ft. 27
VMATINT-6 6 ft. 32 VMATINT-6-MM 6 ft. 32
VMATINT-10 10 ft. 42 VMATINT-10-MM 10 ft. 42
VMATINT-15 15 ft. 51 VMATINT-15-MM 15 ft. 51
VMATINT-25 25 ft. 69 VMATINT-25-MM 25 ft. 69

Multiple KVM Extender With RS232
Ten Local Transmitters in 1RU Price $ # to Buy Remote Receiver Price $ # to Buy
ST-C5KVMRSX10-600-R 2,365 ST-C5KVMRS-R-600 210
Cables for KVM & RS232 to Local Rack
(Male to Female) VMRSTINT-xx		 Cables for PC w/ RS232 to Local Rack
(Male to Male) VMRSTINT-xx-MM
Part # Length Price $ # to Buy Part # Length Price $ # to Buy
VMRSTINT-3 3 ft. 26 VMRSTINT-3-MM 3 ft. 26
VMRSTINT-6 6 ft. 30 VMRSTINT-6-MM 6 ft. 30
VMRSTINT-10 10 ft. 38 VMRSTINT-10-MM 10 ft. 38
VMRSTINT-15 15 ft. 45 VMRSTINT-15-MM 15 ft. 45
