KVM Switch Expansion Unit

Combine switches for a total of 512 CPU ports

Also known as: Switch expansion unit, multiplexor box, multiple computers.

XPANDMUX Matrix KVM Switch
zoom Click here to zoom in on image

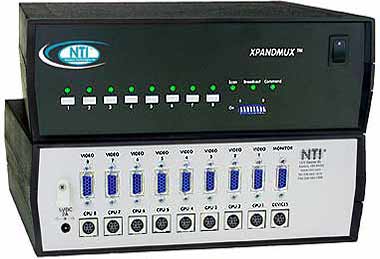

XPANDMUX™ ST-MX-8O SWITCH EXPANSION UNIT
(Front & Back)

Features & Applications

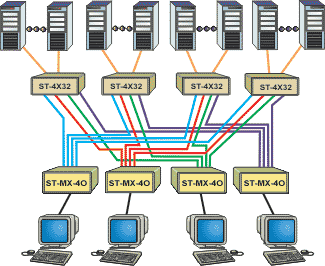

The XPANDMUX™ ST-MX-xO Switch Expansion Unit is used to combine up to 16 NODEMUX ST-nXm-U Universal Matrix KVM Switches together to create a total capacity of eight users and 512 computers--all with true non-blocking matrix switching.

All users can access any computer at any time without interfering with each other. You can add switches as your operation grows instead of replacing them. On Screen Display (OSD) is standard on all models.


Specifications

Keyboard & Mouse
  • Female 8 pin miniDIN connectors.
  • User devices can be PS/2, SUN or MAC.
Monitor
  • Crisp & clear 1900x1200 resolution.
  • A multiscan VGA monitor is required.
  • Female 15 pin HD connectors.
  • Bandwidth is 150 MHz
Box Configuration
  • Unit configured via DIP switches on front panel for PS/2, SUN, MAC keyboard & mouse
  • User keyboard & mouse must be of the same platform as defined above.
Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter.
Environmental
  • Operating temperature: 32°F to 100°F
    (0°C to 38°C)
  • Storage temperature: -20°F to 140°F
    (-30°C to 60°C)
  • Operating and Storage Relative Humidity:
    17 to 90% non-condensing RH
On Screen Display
  • Standard on all models.
Rackmount Option
  • Add "-R" to part number for a rackmount in a 19" case.

Cables

  • Interface cables between the NODEMUX ST-nXm-U and the XPANDMUX ST-MX-xO are required for proper operation.
    • Connections are made from the ST-MX-xO to the ST-nXm-U using a VKTINT-1 and a VKTINT-xx-MM cable for the mouse and keyboard connections and a VEXT-xx-MM cable for the video connection.
  • NTI Universal cables between user devices and the XPANDMUX ST-MX0xO are required for proper operation.
  • Cables not included.
