CONTROL MULTIPLE MACs

Keyboard & Mouse

• All connectors are female 4 pin miniDIN.
• Switch will hard or soft boot all MAC's 100% of the time
• NUM LOCK, CAPS LOCK & SCROLL LOCK lights are updated upon switching
• Multiple keyboards can be connected to this switch.

Monitor

• All connectors are female 15 pin D.
• Bandwidth is 150MHz.
• Resolution other than 640x480 requires a MAC-ID-14 adapter on each MAC.
• Up to 1900x1200 resolution with no degradation.

Power

• 110 or 220 VAC at 50 or 60Hz.

Compatibility

• Supports startup keys.
• Supports dongle devices.
• Compatible with Duo Docks.

Cascade To Add Ports To Your Switch

• Combine 4, 8 and 16 port switches together to create a larger switch with up to 128 MAC's.
• When connecting one switch to another, one port is used.
• All slave units (max. 8) must be the same size & connect to one master unit.
• Control signal is daisy chained.
• Multiple switches operate as one, from one control point.

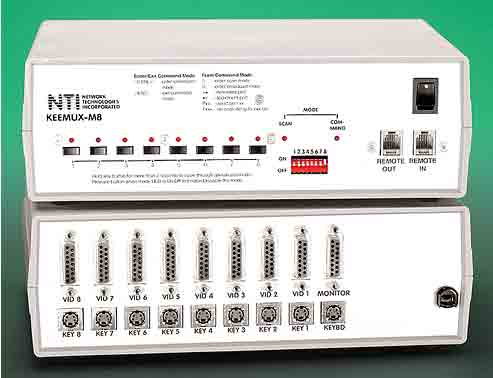

Buttons on Front

• Touch a button to select a computer.
• LEDs on front indicate the mode of operation and show currently selected port.
• Hold in any button for more than 2 seconds for SCAN or COMMAND MODE.
• SCAN causes the switch to sequentially display the video from "powered on" computers for 2-999 seconds.
• COMMAND MODE allows the user to give instructions to the switch through their keyboard.
• In NORMAL OPERATING MODE, the user can directly operate the selected computer with transparent presence of the NTI switch.

Keyboard

• Type <CTRL> + <`> to go into COMMAND MODE. ("`" is the accent mark located on the same key as the tilde "~").
• SCAN or COMMAND MODE are available from the keyboard.

Options

• Optional-sold separately
  On Screen Display Option
• Optional-sold separately
  LCD Option
• Optional-sold separately
  RS232 Option
• Optional-sold separately
  Rackmount
• Optional-sold separately

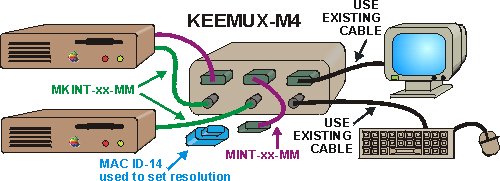

Keyboard
4 pin miniDIN

Mouse Connects
to Keyboard

Monitor
15 pin D

MKINT-xx-MM
(To 15 Ft.)

or

MKEXT-xx-MM
(To 250Ft.)

MINT-xx-MM
(640 x 480)

or

MEXT-xx-MM
(1900x1200)
