MULTIPLE USERS CONTROL MULTIPLE PC's

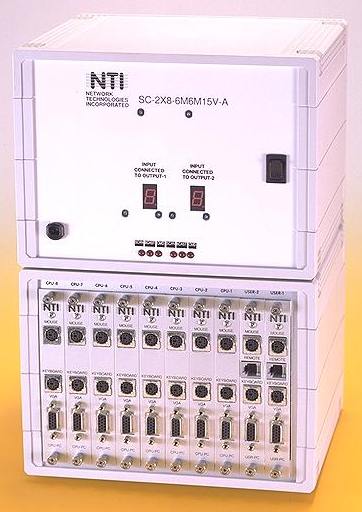

SC-2X8-6M6M15V-A
Features & Applications
These server switches allow multiple keyboards, monitors & mice to control many PS/2 computers.
  • a maximum of 8 users and 32 PC's can be connected at one time
  • 1600x1200 video resolution with no degradation
  • supports laptop computers
  • compatible with all PS/2 mice, including IntelliMouse
Specifications

Keyboard & Mouse
PS/2 compatible with 6 pin miniDIN connectors. Computers can boot without the keyboard & mouse connected, then hot-plug them to operate the PC.
Monitor
Must use a multiscan VGA monitor that can display the video from all the computer platforms.
Control
Switching is controlled from the keyboard, an optional hardwired remote, or a global RS232 port.

AVAILABLE SIZES

NTI PART# # of
Users
# of CPU
Ports
Size(in)
WxDxH
Rack Size
WxDxH

SC-2X8-6M6M15V-A

2

8

8.8X7.8X6.5

19x10x5.2

SC-4X8-6M6M15V-A

4

8

NA

19x12x7

SC-2X16-6M6M15V-A

2

16

NA

19x12x7

SC-4X16-6M6M15V-A

4

16

NA

19x13x8.8

SC-2X24-6M6M15V-A

2

24

NA

19x13x8.8

SC-4X24-6M6M15V-A

4

24

NA

19x13x8.8

SC-8X24-6M6M15V-A

8

24

NA

19x13x8.8

SC-2X32-6M6M15V-A

2

32

NA

19x13x8.8

SC-4X32-6M6M15V-A

4

32

NA

19x13x8.8

SC-8X32-6M6M15V-A

8

32

NA

19x13x8.8
