Transparent USB DVI Extender

Extend four USB devices and a digital DVI display up to 250 feet

Also known as: CAT5 USB DVI extender, remote keyboard mouse monitor printer usb device, usb extension 250 feet long, dvi balun.


Supports remote USB flash drives

Additional Product Information

View Data Sheet Data Sheet (PDF)
 Extend USB keyboard, USB mouse and DVI monitor up to 250 feet.

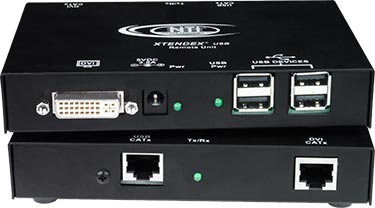

ST-C5USBD-250 (Remote Unit, Front and Back)

Features & Applications

The Transparent USB DVI Extender extends four USB devices and a single link digital DVI display up to 250 feet via two CAT5e/6/7 cables. Each USB DVI extender consists of a local unit that connects to a computer, and a remote unit that connects to four USB devices and a DVI display.
  • Supports fully transparent USB connections – able to support all common hardware platforms including PC, SUN and MAC and their associated peripherals.
  • Extend devices such as keyboards, mice, printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.
  • Supports resolutions to 1920x1200.
  • Compliant with USB 2.0 (low/full speed) standards.
  • Supports Plug-n-Play specification.
  • Built in default EDID configuration table.

Specifications

Local Unit
  • Supports USB computers (PC, SUN and MAC) with single link digital DVI video.
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • One female DVI-I and one female USB Type B connectors.
Remote Unit
  • One female DVI-I and four female USB Type A connectors.
  • Supports resolutions to 1920x1200.
  • Provides support for full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices.
Power
  • Local and remote unit: 90 to 240 VAC at 50 or 60 Hz via AC adapter.

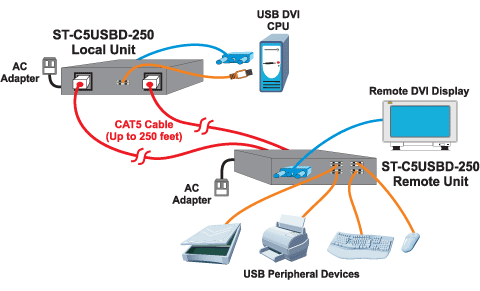

Example application of ST-C5USBD-250
Cables
  • For best results, CAT6 550 MHz UTP solid cable with TIA/EIA-568B wiring terminated with standard RJ45 connectors is recommended (not included).
  • Use DVI-IS-xx-MM cable to connect a DVI source or display (not included).
  • Use male USB Type A to male USB Type B cable to connect source (not included).
Dimensions WxDxH (in):
  • 5.5x3.5x1
Warranty
  • Two years


Distances and Resolutions for
CAT5e, CAT6, and CAT7 Cables
Cable Distance
(feet)		 Maximum Standard Resolution
CAT5e Solid (UTP) 100 1920x1200 at 60Hz
150 1280x1024 at 60Hz
230 1024x768 at 60Hz
CAT6 Solid (UTP) 150 1920x1200 at 60Hz
200 1600x1200 at 60Hz
550MHz CAT6 Solid (UTP) 150 1920x1200 at 60Hz
200 1600x1200 at 60Hz
250 1024x768 at 60Hz
CAT6 Solid (STP) 200 1280x1024 at 60Hz
CAT7 Solid (STP) 200 1920x1200 at 60Hz

USB Extenders with DVI-D Video

NTI Part # Description Price
Each $		 # to
Quote		 # to
Buy		 Download a
PDF Manual
ST-C5USBD-250 USB Extender with DVI-D Video 450 Download the Manual

DVI-D Single Link Interface Cable, Male to Male

Part # Length Price $ # to Quote # to Buy
DVI-DS-2M-MM 2 Meters 14.00

USB 2.0 A-B Cables

Part # Length Price $ # to Quote # to Buy
USB2-AB-05M-5T 0.5 meters 1.50
USB2-AB-1M-5T 1 meter 2.25
USB2-AB-2M-5T 2 meters 3.00
USB2-AB-3M-5T 3 meters 3.75
USB2-AB-5M-5T 5 meters 4.75

CAT6 Solid Unshielded Bulk Cable, 550 MHz, 23 AWG, Gray, 1,000 ft,
Part # Description Price $ # to Quote # to Buy
CAT6-BULK-GRAY 1,000 ft shielded bulk cable, gray 123

CAT7 Shielded, Solid Bulk Cable, 600 MHz, 23 AWG, Gray, 1,000 ft,

Part # Description Price $ # to Quote # to Buy
CAT7-BULK-STP-GRAY 1,000 ft shielded bulk cable, gray 680

Low-Profile Strain Relief Boots for CAT6 Cable, Gray

Part # Description Price $ # to Quote # to Buy
BOOT-SKNY6-GRAY 6mm cable boot, gray 0.25

CAT6 RJ45 Plugs

Part # Description Price $ # to Quote # to Buy
6-PLG-SOLID CAT6 Solid 0.92
