VGA Video/Audio Splitter/Extender via CAT5: 4-, 8-, and 16-Port

Drive up to 16 monitors and speakers 600 feet away from one computer

Also known as: CAT5 VGA video splitter, video multi-point extender, audio video port expander, cat5 vga splitter, monitor splitter, vga video splitter, extend multiple monitors, VGA video distribution over cat 5 wiring, share video, split vga video, video splitter hub, VGA CAT5 extender.

VGA Video/Audio Splitter/Extender via CAT5

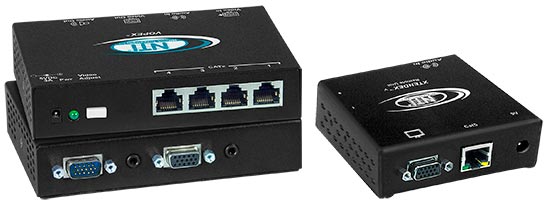

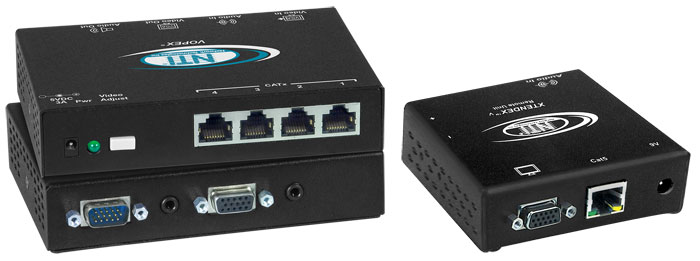

VOPEX-C5VA-4C Local Unit (Front & Back) and ST-C5VA-600 Remote Unit
  • HDMI Extender for use with Digital Signage
  • Designed and Manufactured in the U.S.A.

The VOPEX® VGA Video Splitter/Extender simultaneously broadcasts ±high-resolution video from one computer to 4, 8, or 16 remote monitors located up to 600 feet away using CAT5/5e/6 cable. Optional audio functionality using self-powered stereo speakers enhances presentations.


The VOPEX VGA video splitter/extender system has two components: the VOPEX-C5V-xC VGA broadcast unit, which connects to the host computer and also supplies video to a local monitor, and an XTENDEX® ST-C5V-R-600 remote unit for each remote monitor. The units are interconnected by CAT5/5e/6 cable.


The VOPEX® VGA Video Splitter/Extender simultaneously broadcasts high-resolution video from one computer to 4, 8, or 16 remote monitors located up to 600 feet away using CAT5/5e/6 cable. Optional audio functionality using self-powered stereo speakers enhances presentations.


The VOPEX VGA video splitter/extender system has two components: the VOPEX-C5V-xC VGA broadcast unit, which connects to the host computer and also supplies video to a local monitor, and an XTENDEX® ST-C5V-R-600 remote unit for each remote monitor. The units are interconnected by CAT5/5e/6 cable.


  • Supports resolutions up to 1920x1440.
  • Optional audio can be broadcast to self-powered stereo speakers at the local unit and each remote location.
  • Easily expandable. Add remote units as you add monitors.
  • Meets the electrostatic discharge (ESD) immunity requirements of IEC/EN 61000-4-2.
  • High quality rugged steel construction with durable powder coat finish.
  • Available in optional rackmount enclosure.
    • Includes cable management shelf.
  • Ideal for digital signage, movie theater lobbies, point of purchase displays, conference centers, airports, and other applications that require multiple displays.

Local Unit

Video Input
  • Supports a PC, SUN or MAC with VGA video.
  • Male 15-pin HD connector.
  • Input frequency ranges:
    • Horizontal: 15 to 130 kHz.
    • Vertical: 30 to 150 Hz
  • Supports Separate and Composite TTL level sync and Sync on Green.
  • Input impedance: 75 Ohms.
  • Maximum input levels: 1.45 p-p.
  • Video is DC coupled.
Video Output
  • Female RJ45 connectors for CAT5/5e/6 cable to remote units.
  • Female 15-pin HD connector for local monitor.
  • Crisp and clear 1920x1440 video resolution.
  • Output impedance: 75 Ohms.
  • Maximum output level: 1.45Vp-p
Optional Audio
  • 3.5 mm female stereo audio jacks.
  • Frequency response: 20 Hz to 20 kHz, ±1dB.
  • Signal-to-Noise Ratio (SNR): 76 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%
  • Stereo Crosstalk: -70 dB.
  • Input impedance: 10k Ohms.
  • Line level output; supports multimedia speakers.
    • CD quality audio output.
  • Maximum I/O levels for audio: 3.1 Vp-p (line level).
Cables
  • 3-foot (0.91-meter) VGA cable included.
  • 3-foot (0.91-meter) audio cable included with units with audio option.
  • Use CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter.
    • VOPEX-C5V(A)-xC: US, EURO, UK OR AUS AC adapter included.
    • VOPEX-C5V(A)-16 and VOPEX-C5V(A)-xR: country-specific adapter included.

MTBF
NTI Part # MTBF (hrs)
VOPEX-C5V-4C 47,310
VOPEX-C5V-4R 461,439
VOPEX-C5V-8C 45,086
VOPEX-C5V-8R 311,565
VOPEX-C5V-16 56,244
VOPEX-C5V-16R 113,495
VOPEX-C5VA-4C 46,652
VOPEX-C5VA-4R 405,709
VOPEX-C5VA-8C 44,444
VOPEX-C5VA-8R 283,124
VOPEX-C5VA-16 49,918
VOPEX-C5VA-1R 90,382
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -20 to 140°F (-30 to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Remote Unit

Video Output
  • Female 15-pin HD connector.
  • Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.
    • When using CAT6 cable, some degradation may be experienced, depending on the construction of the cable.
  • Output impedance: 75 Ohms.
  • Maximum output level for video: 1.45Vp-p.
  • Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for video-only units and automatically for audio/video units.
Optional Audio
  • 3.5 mm stereo audio jack.
  • Frequency response: 20 Hz to 20 kHz, ±1dB.
  • Signal-to-Noise Ratio (SNR): 76 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%.
  • Stereo crosstalk: -70 dB.
  • Line level output; supports multimedia speakers.
    • CD quality audio output.
  • Maximum output levels: 3.1Vp-p (line level).
Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter (country-specific adapter included).
  • Power consumption: 10 W

MTBF
NTI Part # MTBF (hrs)
ST-C5V-R-600 89,155
ST-C5VA-R-600 87,915
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -20 to 140°F (-30 to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Distances and Resolutions for CAT5/CAT5e and CAT6 cables
Cable Distance Maximum Resolution
CAT5/CAT5e (UTP) 600 feet (183 meters) 1024x768 at 60 Hz
400 feet (122 meters) 1280x1024 at 60 Hz
300 feet (91 meters) 1600x1200 at 60 Hz
100 feet (30 meters) 1920x1440 at 60 Hz
CAT5/CAT5e (STP) CAT6 (UTP) 300 feet (91 meters) 1024x768 at 60 Hz
200 feet (61 meters) 1280x1024 at 60 Hz
100 feet (30 meters) 1920x1440 at 60 Hz

Low Cost Twisted Pair CAT5 BNC Extenders

BNC + S-Video to VGA Converter
BALUN-STBNC
BNC + S-Video to VGA Converter
BALUN-STBNC-RA
BNC + S-Video to VGA Converter
BALUN-STBNC
  • Low cost solution for transmitting Composite Video or S-Video using twisted pairs of CAT5 cable.
  • S-Video extension requires two twisted pairs of CAT5 cable.
  • Composite video extension requires a single twisted pair of CAT5 cable, up to three extenders can be used on a single CAT5 cable.
  • Modify the video input cable to transmit Composite Video or S-Video signal through an 15-pin HD connector.
  • Connectors: 75 ohm male BNC Video, positive and negative screw terminal connectors.
  • Wire: 16-24 AWG Unshielded Twisted Pair
  • DC Loop Resistance: 52 ohms per 1,000 ft (305 m).
  • Bandwidth: 6 MHz.
  • Available in Straight Orientation, Right Angle Orientation, and with Attached Cable.

Application Drawings

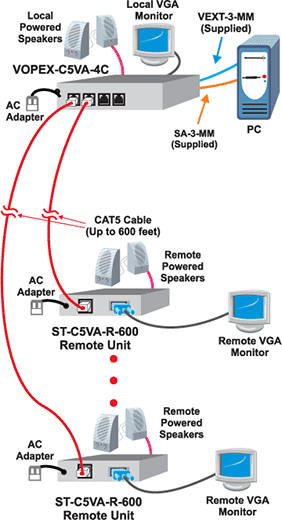

  • VGA Video/Audio Splitter/Extender via CAT5: 4-Port
    VGA Video/Audio Splitter/Extender via CAT5: 4-Port - Application Drawing
    How to Drive up to 4 monitors and speakers 600 feet away from one computer

Application Notes

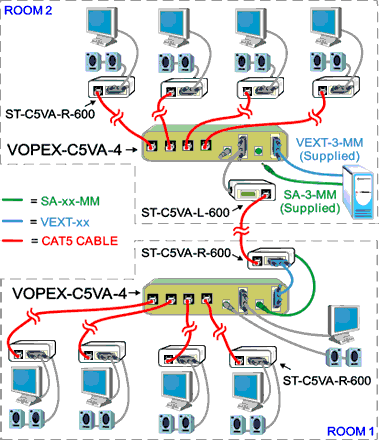

  • Drive Multiple Monitors and Speakers Located in Two Rooms from One PC, Using Single CAT5 Cable
    Drive Multiple Monitors and Speakers Located in Two Rooms from One PC, Using Single CAT5 Cable
    Drive multiple monitors and speakers located in two rooms from one PC, using a single CAT5 cable between the rooms. The distance between the monitors and speakers in the two rooms can not exceed 600 feet.
  • Extend Composite Video or S-Video using Low Cost Twisted Pair CAT5 BNC Extenders
    Extend Composite Video or S-Video using Low Cost Twisted Pair CAT5 BNC Extenders

    With a simple modification to the video input cable, the VOPEX CAT5 VGA Video Splitter/Extender can extend composite video or s-video using low cost twisted pair CAT5 BNC extenders. The modification to the video input cable allows s-video to be extended using two twisted pairs of CAT5 cable, or allows composite video to be extended using a single twisted pair of CAT5 cable. Transmitting composite video using this method triples the number of available receivers per CATx port of the VOPEX video splitter/extender at a fraction of the cost.

    To modify the video input cable, take either a composite video yellow RCA cable (RRCVEXT-xx-MM), or a s-video 4-pin Mini DIN cable (SVEXT-xx-MM), and wire one end to a female 15HD solder cup connector (15HDF-SLDR) using the following wiring diagram. Use this cable to connect the video source to the video input of the VOPEX CAT5 VGA Video Splitter/Extender. To extend the signal, connect one end of a CAT5 patch cable terminated with a RJ45 connector to the desired CAT5 video output port, and connect the corresponding unterminated twisted pair wires to the BALUN-STBNC remote unit.


    Wiring Diagram – Composite video cable to 15HD and S-Video cable to 15HD

CAD Drawings

  • Compact VGA + Audio Splitter/Extender via CAT5 (VOPEX-C5VA-4C)
    Compact VGA + Audio Splitter/Extender via CAT5
(VOPEX-C5VA-4C)

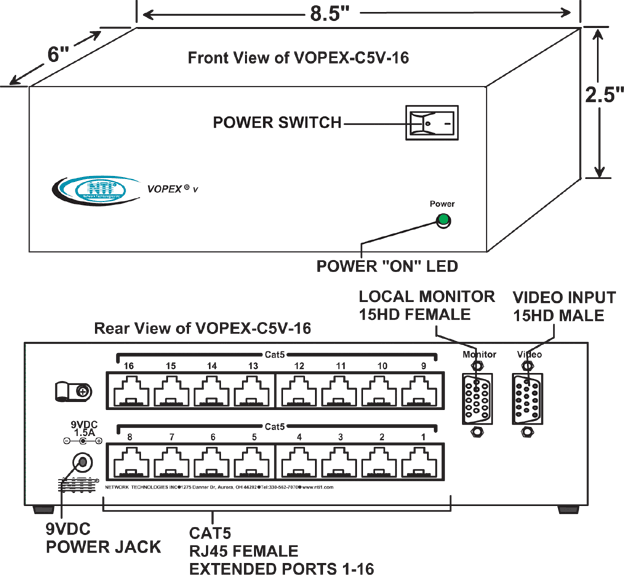

  • VGA Video Splitter/Extender via CAT5 (VOPEX-C5V-16)
    VGA Video Splitter/Extender via CAT5 (VOPEX-C5V-16)

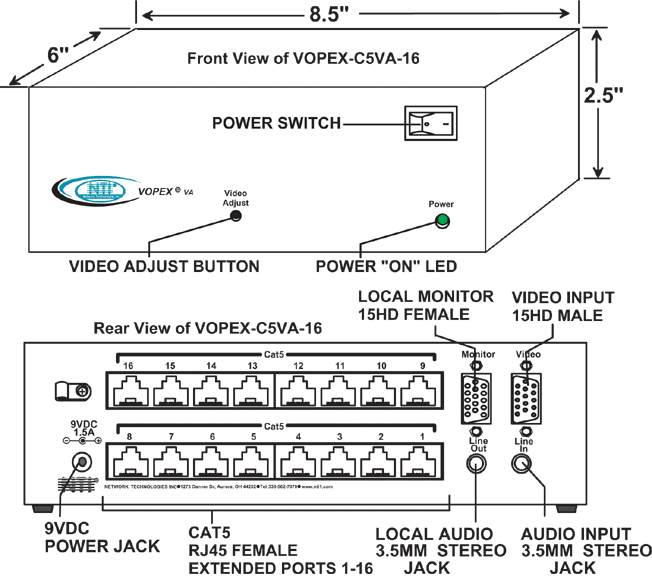

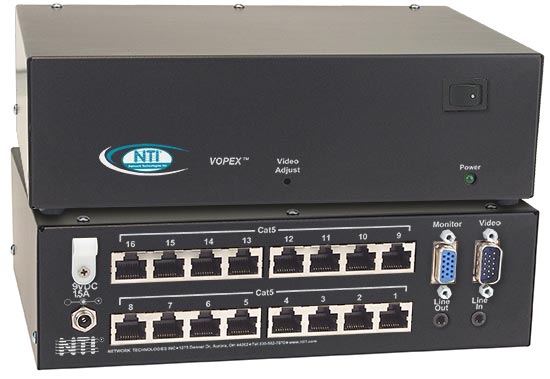

  • VGA Video + Audio Splitter/Extender via CAT5 (VOPEX-C5VA-16)
    VGA Video + Audio Splitter/Extender via CAT5 (VOPEX-C5VA-16)

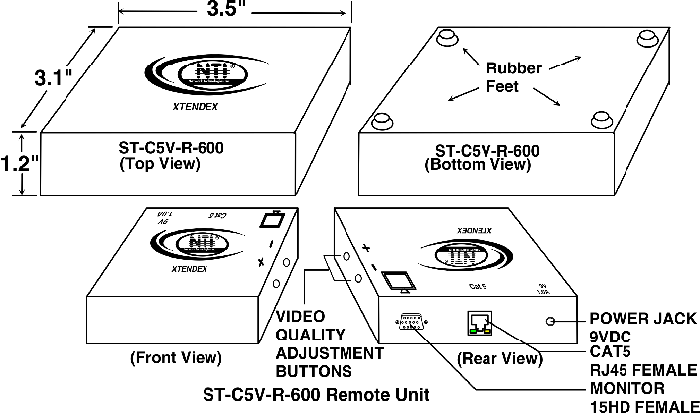

  • VGA Remote Receiver (ST-C5V-R-600)
    VGA Remote Receiver (ST-C5V-R-600)

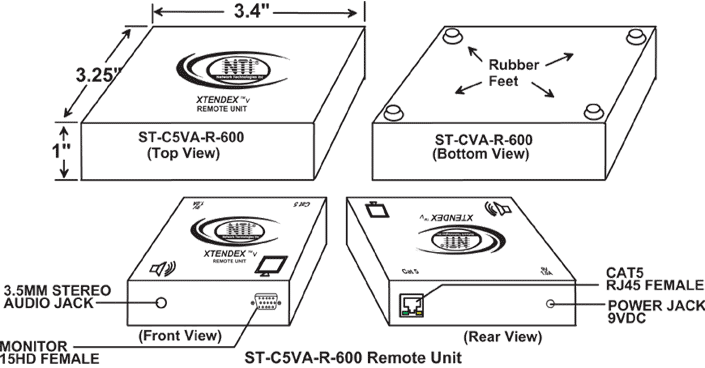

  • VGA + Audio Remote Receiver (ST-C5VA-R-600)
    VGA + Audio Remote Receiver (ST-C5VA-R-600)
  • "We needed to place the CPU in the ICS closet and run 200 feet to the ST-C5VA-L-600 unit where the local output went to a local monitor at the nurse station and the Ethernet connection went to the ST-C5VA-R-600 remote unit in a data closet 50 feet away. From there, the remote unit connected into the VOPEX-C5VA-4C Splitter/Extender input which then split off to 4 remote nurses stations another 200 feet away. The VOPEX-C5VA-4C, ST-C5VA-600, and ST-C5VA-R-600'S worked VERY well for our application."

    Victor Boike
    Dräger Medical
    Homer Glen, IL
  • "Love your guy's products. We use the VOPEX-C5V-8C in our press box to run our stats program out to different screens so people can keep up with what going on in the game. Keep up the good work; love the products!"

    David Bartlett
    Mizzou Athletics
    Columbia, MO
  • "I first used your VOPEX® VGA Splitter/Extenders to push video content to our five doctors' lounges in one hospital. The hospital liked it, and now we have used your products for 4 different projects. Now 3 hospitals are using NTI.

    I just got word that our CIO liked my solution to distribute VGA video across our hospital. Now he wants to know how I did it. Our CIO wants to use our hospital solution for our entire division, 13 hospitals. Who knows, once the company sees what we have done they might decide to standardize for all our divisions (over 300 hospitals)."

    Javier Moreno
    Valley Regional Medical Center
    Brownsville, TX
  • "We own a commodity brokerage company. Historically, we have had a "quote monitor" on everyone's desktop with a price feed. In our old, smallish office, we ran miles of VGA cable into and out of splitter boxes... We moved last week into a new space that was built out for us - fancy stuff, like internet/Cat-5 wiring in the walls. We were not interested in recreating the VGA cable mess, so we were looking for solutions that delivered the data to several different locations conveniently and cost-effectively. Our IT service found the NTI thing online and we thought we would give it a go. So, today, we are operational in our new office with 10 flat screen televisions/monitors mounted all over the place, with Cat-5 coming out of the wall into the NTI boxes and a VGA cable going into the monitors. No flicker. Signal is clear. No cables running across the floor."

    Phil Plourd
    Blimling and Associates, Inc.
    Cottage Grove, WI
  • "Thanks for your help in assisting me with choosing the right product. I like that we did not have to use the heavy VGA cables; this CAT5 splitter/extender is great. Also, I was surprised that we received it so quickly; thank for your courteous service. When a need arises in the future, you will be the first one that I call."

    Cecilia Keyton
    NGC Medical
    Altamonte Springs, FL
  • "Recently we purchased the "CAT5 VGA VIDEO 4 PORT SPLITTER plus 4 REMOTE RECEIVERS". Our rep at NTI was very knowledgeable on all of the products, and helped guide us to the correct solution for our project. Shipping was extremely fast. The splitter was very easy to set up. The quality exceeded our expectations. The sound and picture quality were perfect.

    Thanks to NTI for getting us the right product, the fast shipping, and the easy setup, our project was completed days before we planned on. I look forward to purchasing more products from NTI."

    Brian Hope
    BenefitVision, Inc.
    Harrisburg, PA
  • "Your VOPEX-C5V-4C and ST-C5V-R-600 CAT5 Video Splitters are working out great for us, and we look forward to doing more business with NTI in the near future."

    Glyn Holmes
    Herman's Building Centers
    Herman's Building Centers
  • "Thank you for offering such a high quality unit that supports great resolution at longer distances. We now have 4 units installed and they are all working great. We love the option of being able to add on to this system in the future and will keep you in mind for other projects."

    Michael Lampton
    NDL Enterprises
    Denver, CO
  • "We have 11 Kiosks up and running in all our coffee bars. The image looks great even stretched to near the max of 400ft at a resolution of 1280x1024. You make an excellent product!"

    Matt Herbort
    Alliance Engineering
    Houston, TX
  • "We are a church in Pittsburgh with a small 29-computer network. I asked an associate in the Church Business Administrator organization for a recommendation on what company to deal with for VGA splitters and remotes. He recommended NTI.

    My experience was nothing short of amazing. I browsed the NTI website, and found some products that looked appropriate. When I called to talk with a CSR, I was greeted by Kristie. She led me through the decision process to identify what I needed. She then offered to send me a quote. (This was late Friday.) Her quote was waiting for me when I got back on Monday afternoon. I called her back on Tuesday afternoon and placed the order. The box was on my desk this morning (Wednesday) at 9:30!! Wow!

    BUT, and this is the part that made me walk around the office and share with my co-workers, there was a hand written envelope on top of the products with a nicely composed thank you note. I'm very impressed by the attitude conveyed by Kristie and as actually demonstrated. I hope I have reason to do business with you again."

    Ralph Fink
    Fox Chapel Presbyterian Church
    Pittsburgh, PA
  • "In a manufacturing environment, we are always looking to move displays around for operator convenience. We were using another brand of VGA to Cat 5 extender and always had a problem with the remote monitor picture blinking on and off. When I called for technical support, I could never get a satisfying answer. A few years ago I had tried an NTI VOPEX-C5V-4 Splitter/Extender on another process that is similar and thought maybe it would work here also. I called Tammy to order what I had used before and expressed my dissatisfaction with the other brand. I needed assurance that this system would work right away. She said if there was a problem that NTI would make it work. The units showed up a few days later and I gave them to my electrician to install. I never heard back from them. So I went out to check for myself if they were working. The operator was there so I asked her if the monitors were working and she said the electrician came by a few days ago, put in a new box and they have not had a problem since. Thank you NTI for your good equipment and sales person (Tammy, who really knows her stuff!!)"

    Lee Dawson
    TI Automotive
    Warren, MI
  • "We were using an outdated system of VGA to TV converters for our information marquee kiosks. The resolution was low and the picture quality was poor. We had problems sending the signal long distances in our large campuses. I contacted NTI, and they put me on the phone with a sales engineer who designed a system using VGA over Cat5e cabling to feed our new LCD monitors. It works so well; it is now the standard for our entire University, over 200 campuses and learning centers. It looks gorgeous, and we can send a signal 200 yards over inexpensive Cat5e cabling. It is a great infrastructure for our upcoming technology that is going to give us up-to-the minute information automatically. This will be great technology built on a foundation of great technology. NTI made the marquees look good, and they made me look good. I couldn't ask for more."

    Dave Persyn
    University of Phoenix Southern Region
    Denham Springs, LA
  • "We received the VOPEX-C5VA-4 and ST-C5VA-R-600 from NTI and attached them to our CERES-86 and a 37 inch LCD. The units worked just great and the sound was excellent. We ordered another three of the ST-C5VA-R-600 and connected them to different display units. They all worked without a problem. Since the NTI units worked so well with our Network Players, we will begin to offer them in addition to our own products whenever possible."

    Jay G. Shipley
    Corn Digital Inc.
    City of Industry, CA
  • "Techorium has provided Toronto's Grand Cinemas with a video broadcasting solution using NTI's video splitters/extenders via CAT5.

    After testing many other solutions on the market, the management at the cinemas were overwhelmed by the quality delivered by NTI's video solution.

    NTI's video splitters/extenders via CAT5 is the only solution that can provide simultaneous broadcast to our 16 theatres at the same time while maintaining excellent video quality."

    Cinema Management
    Toronto, Canada
  • "The solution required to split and extend the signal from the single media server that was generating all pre-show advertisements and previews.

    Today all their cinemas are equipped with this solution.

    This product is also used to broadcast movie trailers and advertisements on the entrances and food court of the cinemas."

    Ed Chaudhry
    Techorium Inc
    Toronto, Canada
  • "We are sending audio and video signals across 600 meters in one of the largest malls in Singapore. This solution adopted fiber optic cable as its backbone, and we completed the link using NTI's VGA splitter/extender via CAT5 to connect all of the plasmas.

    With the use of structured cabling technology together with NTI's VGA splitter extender, it has proven to lower end-user recurring cost tremendously."

    Nick Lee
    Wire & Wireless Pte Ltd
    Singapore

CAT5 VGA Video Splitter/Extenders, Local Unit

NTI Part # Supported Features Desktop or Rackmount # of Ports Size WxDxH (In.) Price Quote Buy
VOPEX-C5V-4C VGA Video Desktop 4 5.1x3.4x1.1 $140.00

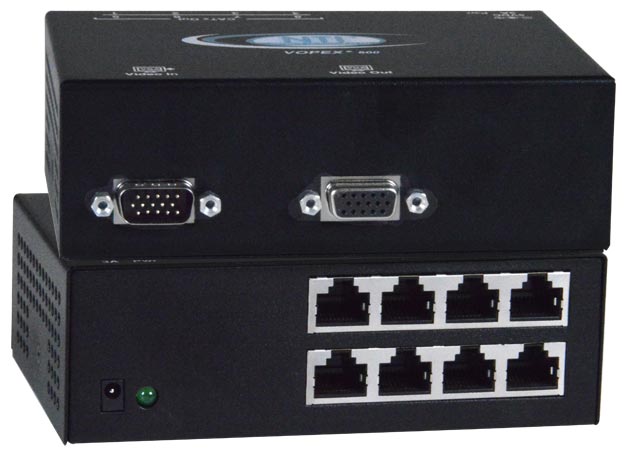

VOPEX-C5V-8C VGA Video Desktop 8 5.1x3.4x1.7 $235.00
VOPEX-C5V-16 VGA Video Desktop 16 8.5x6x2.5 $595.00
VOPEX-C5VA-4C Video + Audio Desktop 4 5.1x3.4x1.1 $200.00
VOPEX-C5VA-8C Video + Audio Desktop 8 5.1x3.4x1.7 $345.00
VOPEX-C5VA-16 Video + Audio Desktop 16 8.5x6x2.5 $810.00
VOPEX-C5V-4R VGA Video Rackmount 4 19x10.5x1.75 $355.00
VOPEX-C5V-8R VGA Video Rackmount 8 19x10.5x1.75 $415.00
VOPEX-C5V-16R VGA Video Rackmount 16 19x10.5x1.75 $665.00
VOPEX-C5VA-4R VGA + Audio Rackmount 4 19x10.5x1.75 $445.00
VOPEX-C5VA-8R VGA + Audio Rackmount 8 19x10.5x1.75 $525.00
VOPEX-C5VA-16R VGA + Audio Rackmount 16 19x10.5x1.75 $875.00

CAT5 VGA Video Extenders, Remote Unit

NTI Part # Supported Features # of Ports Size WxDxH (In.) Price Quote Buy
ST-C5V-R-600 VGA Video NA 3.5x3.1x1.2 $135.00
ST-C5VA-R-600 Video + Audio NA 3.5x3.1x1.2 $165.00

Low Cost Twisted Pair CAT5 BNC Composite Video or S-Video Extenders

NTI Part # Orientation Price Quote Buy
BALUN-STBNC Straight $7.00
BALUN-STBNC-RA Right Angle $7.00
BALUN-STBNC-C With Attached Cable $12.00
