SUN VIDEO ONLY SWITCH

SHARE ONE MONITOR AMONG MULTIPLE SUN COMPUTERS

Also known as SUN video switch, SUN monitor switch, SUN switch, SUN video only switch, video only switch, share switch, video switches.


SE-13W3-2 and SE-13W3-2-TTL SUN Video Switches

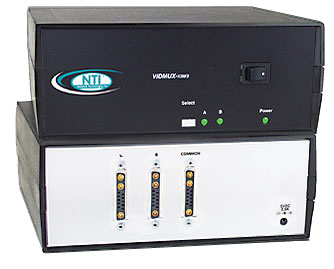

SE-13W3-2 (Front & Back) SUN Video Switch

Features & Applications

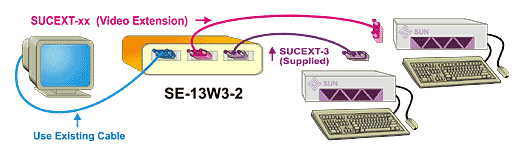

Sun video switch allows one monitor to be switched to multiple Sun SPARCs.
  • Ideal for classrooms and boardrooms.
  • Eliminate redundant monitors.
  • Interconnect NTI switches & splitters for complex applications.
  • Available with RS232 control option.
Call Me Toll Free
Instant call back
(8am-6pm EST)		Sparc International Member

Specifications
For 2 Port Models

Specifications
For 2 Port-TTL Models

Specifications
For 4-16 Port Models

Monitor
  • Crisp & clear 1900x1200 resolution.
  • Female 13W3 connectors.
  • Bandwidth is 300 MHz.
Control
  • Touch buttons on front with LED indication of port selection.
Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter.
Environmental
  • Operating temperature: 32°F to 100°F
    (0°C to 38°C)
  • Storage temperature: -20°F to 140°F
    (-30°C to 60°C)
  • Operating and Storage Relative Humidity:
    17 to 90% non-condensing RH
Cables
  • 3-foot multicoax cable included.
Monitor
  • Crisp & clear 1900x1200 resolution.
  • Female 13W3 connectors.
  • Bandwidth is 300 MHz.
Control
  • Female 9 pin D connector for remote control.
    • Pin 1=Ground.
    • Pin 2=TTL or contact closure signal.
  • LED indication of port selection.
Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter.
Cables
  • 3-foot multicoax cable included.
Monitor
  • Crisp & clear 1900x1200 resolution.
  • Female 13W3 connectors.
  • Bandwidth is 150 MHz.
Control
  • Touch buttons on front with LED indication of port selection.
Power
  • 110 or 220 VAC at 50 or 60 Hz.
Options Sold Separately
SE-13W3-2
AVAILABLE SIZES
NTI Part # # of
Ports		 Desktop Size
WxDxH (In.)		 Rack
Units		 Rack Size
WxDxH (In.)
SE-13W3-2 2 6x6.2x3.2 NA
SE-13W3-2-TTL 2 6x6.2x3.2 NA
SE-13W3-4-L 4 6x6.2x3.2 1RU 19x12x1.75
SE-13W3-8-L 8 6x6.2x3.2 1RU 19x12x1.75
