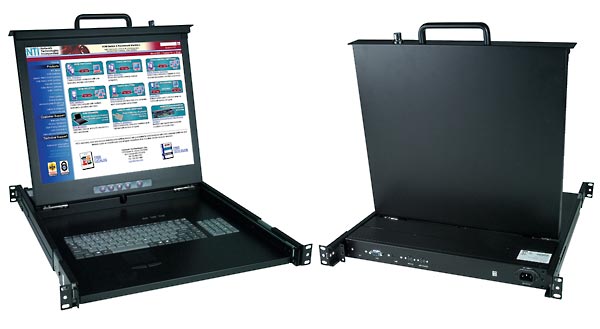

| | The RACKMUX PS/2 KVM drawer combines a 19" LCD monitor, keyboard and touchpad in a compact 1RU industrial strength drawer.
- Available with 19" Active Matrix flat panel monitor.
- Equipped with built-in On Screen Display (OSD) for screen adjustments.
- Display automatically powers off when in closed position.
|
- Designed to make drawer installation a one-person job.
- Front panel conceals the unit when not in use.
- Drawer locks into place when open to prevent it from sliding in and out of the rack.
- Security lock on front panel.
- Designed to fit in a standard 19" rack/cabinet
| |
| |
Hosts
- Compatible with PS/2 computers.
Monitor
- 19" Active TFT LCD flat panel monitor.
- 1280x1024 video resolution.
- OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
- 250 nits brightness and 500:1 contrast ratio typical.
- Viewing Angle:
- Horizontal: 140°, Vertical: 140°
Devices
- Two female 6-pin miniDIN connectors for connecting to PS/2 host.
- 106-key US-layout keyboard.
- Two button touchpad mouse.
Cables
- One 6-foot 15HD VGA male to male cable included.
- Two 6-foot 6-pin miniDIN male to male cables included.
- One 6-foot AC power supply cable included.
|
Power- Input Voltage: AC 100 - 240V, 50 - 60Hz
- Power consumption: 25W
Environmental
- Operating temperature: 32°F to 122°F (0°C to 50°C).
- Storage temperature: -4°F to 140°F (-20°C to 60°C).
- Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Dimensions
- WxDxH (in.): 18x19x1.75.
- Drawer is adjustable to various rack depths ranging from 22" to 39"
