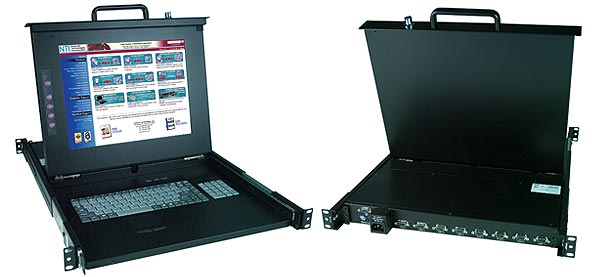

| | The RACKMUX® KVM drawer with integrated KVM switch combines a 15” LCD monitor, PS/2 keyboard, touchpad mouse and an 8 port KVM switch in a compact 1RU industrial strength drawer.
- Control up to 8 PCs with one keyboard, monitor and mouse.
- Available with 15” Active Matrix TFT LCD flat panel monitor.
- Equipped with built-in On Screen Display (OSD) for screen adjustments.
- Display automatically powers off when in closed position.
|
- Designed to make drawer installation a one-person job.
- Front panel conceals the unit when not in use.
- Drawer locks into place when open to prevent it from sliding in and out of the rack.
- Security lock on front panel.
- Designed to fit in a standard 19" rack/cabinet.
| |
| |
Hosts
- Compatible with PS/2 computers.
Monitor
- 15" Active TFT LCD flat panel monitor.
- 1024x768 video resolution.
- OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
- 250 nits brightness and 400:1 contrast ratio typical.
- Viewing Angle:
- Horizontal: 130°, Vertical: 100°
Devices
- 106-key US-layout keyboard.
- Two-button touchpad mouse
Cables
- 6-foot 3-in-1 VGA & PS/2 KVM male to male cable included.
- 6-foot AC power supply cable included.
|
Power- Input Voltage: AC 100-240, 50-60Hz
- Power consumption: 16W
Environmental
- Operating temperature: 32°F to 122 °F (0°C to 50°C).
- Storage temperature: -4°F to 140°F (-20°C to 60°C).
- Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Dimensions
- WxDxH (in.): 18x19x1.75.
- Drawer is adjustable to various rack depths ranging from 20" to 39"
Regulatory Approvals
| |
