DVI Splitter/Extender via CAT5e/6
Drive up to 4 remote displays from one DVI video source
Also known as: DVI-D splitter extender CAT5e, multiple DVI monitors, digital DVI video distribution over CAT6, monitor splitter, share video, split DVI video, hub.
Features & Applications |
The VOPEX® DVI Splitter/Extender simultaneously distributes high resolution single link DVI video from one computer to up to four displays located up to 220 feet away using CAT5e/6 STP cable.

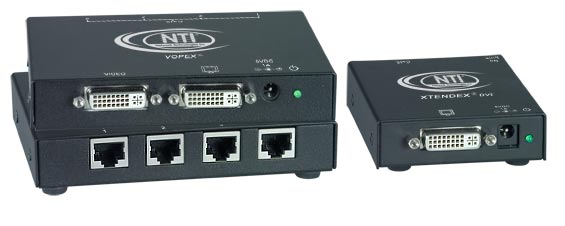

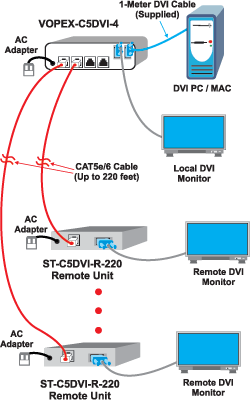

The VOPEX system consists of two components: the DVI broadcast unit, which connects to the host video source and also supplies video to a local display, and a remote unit for each remote display. The units are interconnected by CAT5e/6 STP cable.
- Broadcast real-time DVI video to multiple display locations.
|
- Supports crisp and clear resolutions to 1920x1200 (WUXGA).
- Compliant with DDWG DVI standard.
- EDID learning for the support of any DVI display device.
- Easily expandable. Add remote units as you add monitors.
- Inexpensive CAT5e/6 cable replaces bulky video cables.
- A pure hardware solution – no software conflicts.
- High quality, rugged steel construction with durable powder coat finish
- Ideal solution for digital signage applications.
|
Specifications |
Local Unit
Video Input
- One female DVI connector for digital video source connection.
- Does not support DVI-A analog video sources.
- Compatible with computers with single link DVI-D outputs.
- One female DVI port for local output
- Four female RJ45 ports for video extension; one to each remote unit
- Supports resolutions to 1920x1200 (WUXGA)
- Compliant with DDWG DVI standard.
Cables
- One-meter male to male DVI cable for connecting DVI source is included.
- Use DVI-HDMI-xx-MM cable to connect an HDMI source or display. Cable not included.
- Use CAT5e/6 STP solid straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors. Cables not included.
- For best results, use CAT6 UTP solid 550 MHz cable or CAT6 STP solid cable.
- Refer to the resolution chart below for resolutions at different lengths.
Power
- 110 or 220 VAC at 50 or 60 Hz via AC adapter.
Dimensions
Warranty
|
Remote Unit
Video
- One female DVI connector for display
- One female RJ45 port for receiving DVI signal from local unit
- Supports resolutions to 1920x1200 (WUXGA)
- Compliant with DDWG DVI standard.
Power
- 110 or 220 VAC at 50 or 60 Hz via AC adapter.
Dimensions
Warranty
Warning!
- Never connect the VOPEX-C5DVI-4 or ST-C5DVI-R-220 to an Ethernet card, Ethernet router, hub or switch or other Ethernet RJ45 connector of an Ethernet device. Damage to devices connected to the Ethernet may result.
|
 |
Distances and Resolutions for
CAT5e/CAT6 Cables |
| Cable |
Distance
(feet) |
Maximum Standard Resolution |
| CAT5e (UTP) |
100 |
1920x1200 at 60Hz |
| Longer Length Not Recommended |
| CAT5e (STP) |
100 |
1920x1200 at 60Hz |
| Longer Length Not Recommended |
| CAT6 (UTP) |
100 |
1920x1200 at 60Hz |
| Longer Length Not Recommended |
| CAT6 (UTP) 550MHz |
150 |
1920x1200 at 60Hz |
| 200 | 1280x1024 at 60Hz |
| 250 | 1024x768 at 60Hz |
| CAT6 (STP) |
100 |
1920x1200 at 60Hz |
| 200 | 1280x1024 at 60Hz |
| 300 | 800x600 at 60Hz |
|
