HDMI Extender Fiber Optic Cable Single Strand 1080p 3280 feet

Extend a digital HDMI display up to 3,280 feet (1,000 meters).

Also known as: HDMI Optical Extension, HDMI extender, HDMI digital to singlemode fiber,
optical extender, graphic extension modules, fiber optic digital video extender, balun.

· Resolutions to 1080p
· Single Strand Fiber
Extension

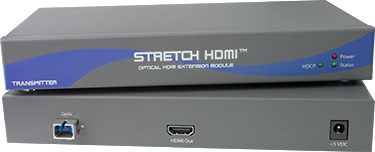

ST-FOHDMI-SC (Local and Remote Unit)

Features & Applications

The XTENDEX® HDMI Extender via One Fiber Optic Cable locates an HDMI display up to 3,280 feet (1,000 meters) away from a video source using fiber optic cable. Each extender consists of a transmitter that connects to a video source and a receiver that connects to a display.

Signal transmission via one strand singlemode SC fiber optic cable — no RF interference.
Supports HDTV resolutions to 1080p and computer resolutions to 1920x1080.

HDCP compliant.
LEDs indicate power and status.
Cables can be installed in conduit prior to extender installation.
Low RFI/EMI for sensitive applications.
No software to install.
Built-in default EDID configuration table.
EDID learning for the support of any EDID compatible display device.

Specifications

Connectors (for transmitter and receiver): one female HDMI Type A connector and one simplex SC connector.
EDID learning for the support of any HDMI display device.
Low RFI/EMI.
Audio: supports LPCM, Dolby Digital (AC3) (Plus), DTS, DSD, Dolby TrueHD, DTS-HD Master Audio.
Supports 24-bits per pixel color depth.
Does not support CEC (consumer electronic control).

Environmental

Operating Temperature: 14°F to 122°F (-10°C to 50°C).
Storage Temperature: -22°F to 185°F (-30°C to 85°C).
Operating and Storage Relative Humidity: 5 to 80% non-condensing RH.

Cables

Use a simplex singlemode SC 8-micron or 9-micron fiber optic cable to extend the receiver from the transmitter up to 3,280 feet (not included).
Use HDMI-xx-MM cable to connect a HDMI source or display (not included).

Dimensions WxDxH (in):

4.4x8.5x1.3

Regulatory Approvals

CE, FCC, RoHS.

Warranty

Two years
