Rackmount PS/2 KVM Drawer with Speakers

Monitor Keyboard Speaker Drawer provides space-saving, convenient control with security lock on front panel.

Also known as: rack mount keyboard drawer with speakers, audio keyboard monitor drawer, KVM drawers, keyboard LCD drawer, rackmount keyboard drawer, folding monitor.


zoom Click here to zoom in on image

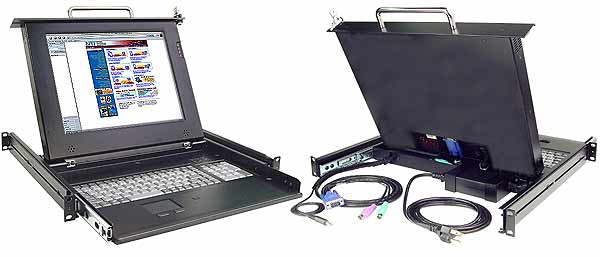

RACKMUX-P17-A-CL (Front & Back)

Price each:
$1,800
$1,170
Buy Now
All sales final on
clearance items

Features & Applications

The RACKMUX® KVM Console Drawer combines a rack mount LCD monitor, keyboard, touchpad mouse, and built-in speakers in a space-saving 1RU industrial strength drawer. This KVM drawer takes 85% less space and requires 80% less ventilation than a standard keyboard, monitor and mouse.
  • Available with 17" Active Matrix LCD flat panel monitor.
  • Equipped with On Screen Display (OSD).
  • Compact, heavy-duty tactile keyboard.
  • Front panel conceals the unit when not in use.
  • Drawer locks into place when open to prevent it from sliding out of the rack.
  • Built-in amplified and powered stereo speakers.
  • Built-in key lock to prevent unauthorized access.
  • Designed to fit in a standard 19" rack/cabinet.
  • Fits 16.25" to 30" rack depths via adjustable mounting brackets.

Specifications

Hosts
  • Compatible with PS/2 and Unix computers.
  • Use with NTI Multi-Platform KVM Switches to control PC, SUN and MAC computers.
Monitor
  • 17" Active Matrix LCD Flat Panel Monitor.
  • One male 15-pin HD connector for connecting to host.
  • 1280x1024 video resolution for 17" monitor.
  • Supports separate TTL level Sync. Does not support Composite Sync or Sync on Green. Not compatible with Sun Microsystems.
  • Sync Frequency: Horz 30 KHz-70 KHz, Vert 50-85 Hz.
  • Response Frequency: 40 KHz-20 KHz.
  • OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, color adjustment.
  • Brightness and contrast ratio:
    • 17": 240 nits brightness and 350:1 contrast ratio typical.
Keyboard
  • 6 pin MiniDIN (PS/2) connector for connecting to host.
  • 104-key Keyboard.
Touchpad Mouse
  • 6 pin MiniDIN (PS/2) connector for connecting to host.
Audio
  • Two 2-watt stereo speakers.
    • Built-in amplified and powered stereo speakers.
  • 3.5mm stereo audio jack.
Control Panel
  • Enables you to adjust monitor parameters, adjust and mute volume, and select a connected computer for controlling remotely.
Cables
  • One 3-in-1 KVM cable.
  • One audio cable
  • One power cord.
Power
  • 100 or 240 VAC at 50 or 60 Hz via AC Adapter.
Dimensions
  • WxDxH (in.): 19x16.25x1.75
  • Weight: 35 lbs.
Environmental
  • Operating temperature: 32°F to 104°F (0°C to 40°C).
  • Storage temperature: -4°F to 140°F (-20°C to 60°C).
  • Operating and Storage Relative Humidity: 10 to 90% non-condensing.
