Control a SUN and PC or MAC with 1 Keyboard, Monitor & Mouse

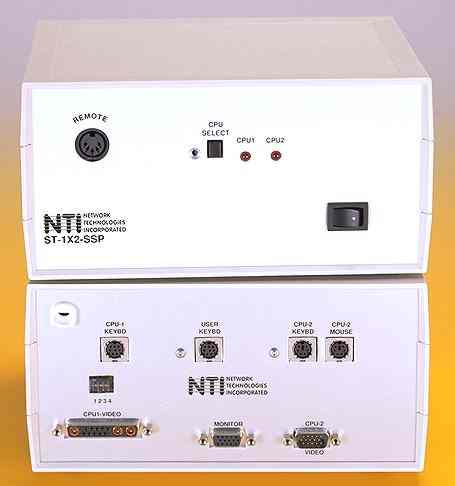

ST-1X2-SSP

Features & Applications These electronic switches allow 2 different computer platforms to be controlled by the same keyboard and mouse. Two types are available: ST-1X2-SSP - A SUN and a PC controlled by a SUN keyboard and mouse ST-1X2-SSM - A SUN and a MAC controlled by a SUN keyboard and mouse Both types require a multisync VGA monitor for viewing Control from keyboard, push buttons, or remotely 1900x1200 video resolution with no degradation Embedded micros simulate keyboard and mouse presence 100% of the time Automatic keyboard and mouse booting of both computer Keyboard and mouse can be hot swapped at any time Keyboard and mouse protocols are translated between computer types CAPS, NUM, COMPOSE & SCROLL LOCK are updated when switched Supports all keystrokes across both platforms

SPECIFICATIONS Keyboard & Mouse SUN compatible with 8 pin miniDIN connector Both computers can boot without the keyboard and mouse connected, then hot-plug them to operate the computers (except non-USA keyboards) Monitor Must use a Multisync VGA monitor that is able to display the video from both computer platforms Connector is female 15 pin high density Control Switching is controlled from the keyboard, front panel push buttons or an optional hard wired remote ST-1X2-SSP (SUN & PS/2) SUN CPU Interface Keyboard connector is a female 8 pin miniDIN Video connector is a female 13W3 with 4 DIP switches for setting monitor resolution PS/2 CPU Interface Keyboard and mouse connectors are female 6 pin miniDIN Video connector is a male 15 pin high density ST-1X2-SSM (SUN & MAC) SUN CPU Interface Keyboard connector is a female 8 pin miniDIN Video connector is a female 13W3 with 4 DIP switches for setting monitor resolution Macintosh CPU Interface Keyboard connector is a female 4 pin miniDIN (mouse plugs into keyboard) Video connector is a female 15 pin D with 14 DIP switches for setting monitor resolution

Prices & Sizes

Supporting Cables
