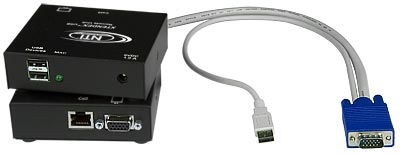

The XTENDEX® ST-C5USBV-300 USB KVM extender extends a USB keyboard/mouse and VGA display up to 300 feet via
CAT5/5e/6 cable. Each ST-C5USBV-300 consists of a local unit that connects to a computer and provides local keyboard, monitor and mouse
connections, and a remote unit that connects to a keyboard, monitor and mouse. The local and remote units are interconnected via CAT5/5e/6 cable.
- Supports local and remote access.
- Compatible with all video resolutions up to WUXGA (dependant upon CAT5/5e/6 extension length).
|
- Maximum 1280x1024 video resolution at 300 feet; higher resolutions are supported at shorter distances up to 1920x1440 (see resolution chart below).
- Keyboard and mouse are hot-pluggable.
- Keep-alive keyboard/mouse emulation for flawless operation.
- Built-in surge protection.
- Allows users to back-rack broadcast quality servers without impact to post-production operations.
|
Local UnitHost Connection
- One male 15-pin HD / one male USB Type A connectors.
- Supports any USB-enabled PC, SUN or MAC computer, or NTI UNIMUX™ KVM switch.
Local Access
- Crisp and clear 1920x1440 video resolution.
- One female 15-pin HD connector.
- Two female USB Type A connectors.
- NTI recommends using identical keyboards and mice at local and remote units.
- Supports most wireless keyboards and mice.
Remote Unit
- Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.
- One female 15-pin HD connector.
- Two female USB Type A connectors.
- The ST-C5USBV-300 will only work with USB keyboards and mice. It is not designed to support other USB devices.
- Keyboard and mouse must be of the same platform.
- Supports most wireless keyboards and mice.
|
Video Quality Adjustment
- Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually.
Cables
- Use CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors.
- Cables not included.
Power
- 110 or 220 VAC at 50 or 60 Hz via AC adapter.
Environmental
- Operating temperature: 32°F to 100°F (0°C to 38°C).
- Storage temperature: -20°F to 140°F (-30°C to 60°C).
- Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Dimensions
Regulatory Approvals
Warranty
Distances and Resolutions for
CAT5/CAT5e and CAT6 Cables |
| Cable |
Distance (feet) |
Resolution |
| CAT5/CAT5e (UTP) | 300 | 1280x1024 at 60Hz |
| 150 | 1600x1200 at 60Hz |
| 100 | 1920x1440 at 60Hz |
CAT5/CAT5e (STP),
CAT6 (UTP) | 300 | 1024x768 at 60 Hz |
| 150 | 1280x1024 at 60Hz |
| 100 | 1600x1200 at 60Hz |
Note: CAT6 cable has a higher skew than CAT5/5e cable, which causes colors to smear. Since these extenders do not
have internal skew compensation, they work at shorter distances with CAT6 cable.
|
|
