HDMI/DVI Video Splitter/Extender via CAT5e/6

Drive up to 16 remote monitors from one computer

Also known as: CAT5 HDMI video splitter, video extender, audio video port expander, CAT5 HDMI splitter, monitor splitter,
HDMI video splitter, extend multiple monitors, HDMI video distribution over CAT5 wiring, share video, split HDMI video.

CAT5 HDMI video splitter
VOPEX-C5HDMI-8 Local Unit (Front & Back)


Designed and Manufactured<br> in the U.S.A.

Video Splitter/Extender via CAT5 Digital Signage Product  RoHS Compliant Video Splitter/Extender via CAT5

Features & Applications

The VOPEX® HDMI/DVI Splitter/Extender simultaneously distributes high resolution HDMI or DVI video and digital or analog stereo audio to multiple displays and speakers up to 300 feet away using two CAT5e/6 cables. The splitter supports HDCP 1.2, allowing encrypted video content to be distributed to all displays. It also supports DDC2B through the use of a mixing algorithm to ensure the video source will display the highest possible resolution common to all connected displays.
  • Broadcast real-time HDMI or DVI video or audio/video to multiple display locations.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
  • Supports digital audio through HDMI ports or 24-bit stereo audio through 3.5mm port.
  • Compliant with HDMI 1.2 and HDCP 1.2 standards.
  • Compliant with DDWG DVI standard.
  • Supports DDC2B protocol.
  • Easily expandable. Add remote units as you add monitors.
  • Inexpensive CAT5e/6 cable replaces bulky video cables.
  • A pure hardware solution — no software conflicts.
  • 1RU case is standard. Includes rack mounting kit.
  • High quality, rugged steel construction with durable powder coat finish
  • Ideal solution for digital signage applications.

Specifications

Local Unit

Video
  • One female HDMI-A port for source connection
    • Compatible with computers and HDTV video sources (satellite receivers, DVD players, etc) with HDMI or DVI-D outputs
  • One female HDMI-A port for local output
  • Two female RJ45 ports for A/V extension to each remote unit
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200
  • Bandwidth: 1.65Gbps
  • Input Impedance:100 ohm, differential
  • Compliant with HDMI 1.2 and HDCP 1.2 standards.
  • Compliant with DDWG DVI standard.
  • Supports DDC2B protocol.
Audio
  • One 3.5mm jack for analog stereo audio input and one 3.5mm jack for analog stereo audio output
  • Frequency response: 20 Hz to 20 kHz, +/-1 dB.
  • Signal-to-Noise Ratio (SNR): 76 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%.
  • Stereo crosstalk: -70 dB.
  • Input impedance: 10k Ohms.
  • Line level output; supports multimedia speakers.
  • Maximum I/O levels: 3.1Vp-p (line level).
  • CD quality audio output: 24-bit, 48kHz audio
Cables
  • Use HDMI-xx-MM cable to connect an HDMI source or display.
  • Use DVI-HDMI-xx-MM cable to connect a DVI source or display.
  • Use SA-xx-MM cable to connect analog stereo audio source or powered speakers.
  • Use CAT5e/6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors.
  • Cables not included.
Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector
Environmental
  • Operating temperature: 32°F to 100°F (0°C to 38°C)
  • Storage temperature: -20°F to 140°F (-30°C to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Dimensions
  • 4- and 8-port extenders WxDxH (in):
    • 9.5x6x1.75(without supplied rackmount kit)
    • 19x6x1.75(with supplied rackmount kit)
  • 16-port extenders WxDxH (in):
    • 15.3x6 x1.75(without supplied rackmount kit)
    • 19x6x1.75(with supplied rackmount kit)
Regulatory Approvals
  • CE
  • RoHS
Warranty
  • Two years

Remote Unit

Video
  • One female HDMI-A port for HDTV or computer display
  • Two female RJ45 ports for receiving high definition video/audio signals from local unit
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1280
  • Compliant with HDMI 1.2 and HDCP 1.2 standards.
  • Compliant with DDWG DVI standard.
  • Supports DDC2B protocol.
Audio
  • One 3.5mm jack for analog stereo audio
  • Frequency response: 20 Hz to 20 kHz, +/-1 dB.
  • Signal-to-Noise Ratio (SNR): 76 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%.
  • Stereo crosstalk: -70 dB.
  • Input impedance: 10k Ohms.
  • Line level output; supports multimedia speakers.
  • Maximum I/O levels: 3.1Vp-p (line level).
  • CD quality audio output: 24-bit, 48kHz audio
Environmental
  • Operating temperature: 32°F to 100°F (0°C to 38°C)
  • Storage temperature: -20°F to 140°F (-30°C to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE
  • RoHS
Warranty
  • Two years
Warning!
  • Never connect the VOPEX-C5HDMI-xx or ST-C5HDMI to an Ethernet card, Ethernet router, hub or switch or other Ethernet RJ45 connector of an Ethernet device. Damage to devices connected to the Ethernet may result.

HDMI configuration

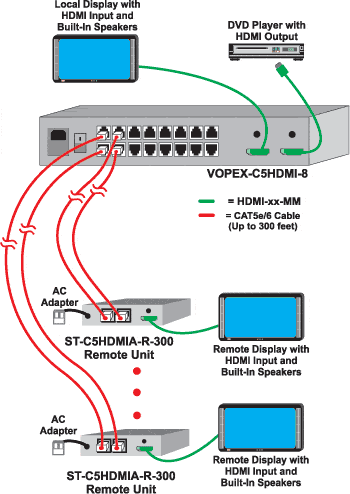

The VOPEX-C5HDMI broadcast unit and the ST-C5HDMI remote unit are interconnected by CAT5e/6 cable.

DVI configuration

The VOPEX-C5HDMI broadcast unit and the ST-C5HDMI remote unit are interconnected by CAT5e/6 cable.

HDMI/DVI Video Splitter/Extender

Local or Remote NTI Part # # of Ports Price $
Local
VOPEX-C5HDMI-44coming soon
Local
VOPEX-C5HDMI-88coming soon
Local
VOPEX-C5HDMI-1616Coming soon
Remote
ST-C5HDMIA-R-300NAComing soon
