Features & Applications |

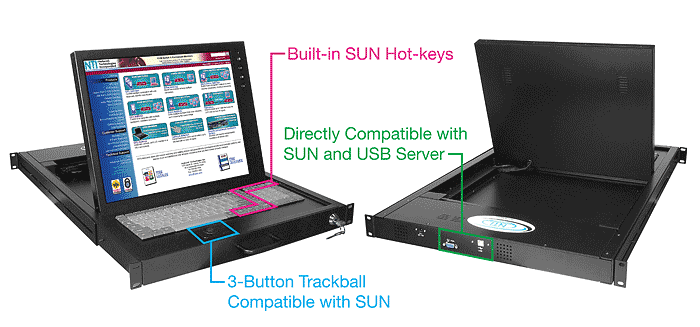

| | The RACKMUX® SUN USB KVM Drawer combines a rackmount LCD monitor, SUN USB keyboard, and trackball mouse in a space-saving 1RU industrial strength drawer.- Supports 1280x1024 video resolution.
- Equipped with On Screen Display (OSD).
|
- Front panel conceals the unit when not in use.
- Drawer locks into place when open to prevent it from sliding in and out of the rack.
- Designed to fit in a standard 19" rack/cabinet.
| |
Specifications |
| |
Hosts
- Compatible with USB-enabled SUN, Windows, Linux, Apple, IBM, and HP computers.
Monitor
- 17" Active Matrix TFT LCD flat panel monitor.
- 1280x1024 video resolution.
- Supports composite sync, H/V separate (TTL) sync, and Sync on Green.
- Sync Frequency: Horz 30 KHz-82 KHz, Vert 56-75 Hz.
- Viewing angle:
- Horizontal: 115°
- Vertical: 115°
- OSD controls for brightness, contrast, auto adjust, Horz- and Vert-center alignment, clock/phase, color adjustment.
- 250 nits brightness and 250:1 contrast ratio typical.
- Supports DDC1 and DDC2B protocols.
Keyboard/Mouse
- Female USB Type B connector.
- 104-key SUN compatible keyboard.
- Supports SUN keys including STOP, CUT, PASTE, COMPOSE, COPY, HELP, OPEN, UNDO, and PROPS.
- Keyboard available in multiple languages: English(US), English(UK), German, Italian, French, and Spanish.
- Three button trackball mouse.
|
Cables- 6-foot 15HD VGA male to male cable included.
- 6-foot USB Type A male to male cable included.
- 6-foot DC power supply cable included.
Power
- 110 or 220 VAC at 50 or 60 Hz via AC Adapter.
- Power Consumption: 32W
MTBF
Dimensions
- WxDxH (in): 19x26.8x1.75
- Fits 26.8" to 36.7" rack depths via adjustable mounting brackets.
Environmental
- Operating temperature: 32°F to 104°F (0°C to 40°C)
- Storage temperature: -4°F to 140°F (-20°C to 60°C)
- Operating and Storage Relative Humidity: 5 to 95% non-condensing RH.
| |
Optional USB KVM Switch Integrated into SUN USB KVM Drawer |
| |

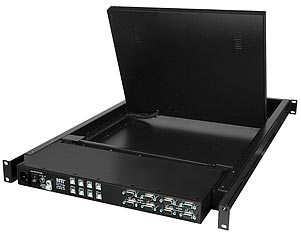

The RACKMUX SUN USB KVM Drawer with Integrated USB KVM Switch combines a rackmount LCD monitor, SUN USB keyboard,
trackball mouse, and NTI's UNIMUX™ 4- or 8-port USB KVM Switch into a space-saving 1RU industrial strength drawer.
Power
- Monitor: 110 or 220 VAC at 50 or 60 Hz via AC adapter.
- Switch: 110 or 220 VAC at 50 or 60 Hz via IEC connector.
- Power Consumption: 40W
MTBF
- RACKMUX-US17-4USB: 44,067 hrs
- RACKMUX-US17-8USB: 38,223 hrs
Dimensions
- WxDxH (in): 19x29.1x1.75
- Fits 29.1" to 36.7" rack depths via adjustable mounting brackets.
|
|
Price Each:
$3195-$3295
$2430-$2530 |
|
Extension Rail Option |
| |
RACKMUX-EXT-RL
|
- RACKMUX-US17: Allows adjustments to various rack depths from 28.2" to 40".
- RACKMUX-US17-xUSB: Allows adjustments to various rack depths from 29.1" to 40".
| |
|
|
FREE
