Hosts- Compatible with USB-enabled PC, SUN or MAC computers.

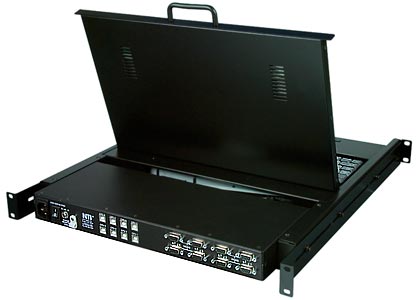

Monitor- Forward-folding 15" Active Matrix LCD flat panel monitor.
- 1024x768 video resolution
- Supports Composite sync, H/V separate (TTL) sync. Does not support Sync on Green.
Not compatible with all Sun Microsystems.
- Frequency:
- Horzontal: 30 to 64 KHz
- Vertical: 50 to 75 Hz
- Viewing angle: Horizontal: 115°, Vertical: 115°
- OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
- 250 nits brightness and 350:1 contrast ratio typical.
- Supports DDC1 and DDC2B protocols.
Devices
- Female USB Type A connector.
- "Gold Crosspoint" keyboard contacts ensure high reliability.
- 105-key keyboard.
- Two button touchpad mouse.
|
Cables
- 6-foot 15 HD VGA male to male cable included.
- 6-foot USB Type A male to male cable included
- 6-foot DC power supply cable included.
Power- 110 or 220 VAC at 50 or 60 Hz via AC Adapter.
- Power consumption: 25W
- Maximum Inrush Current: 21A
MTBF
Environmental- Operating temperature: 32°F to 104°F (0°C to 40°C).
- Storage temperature: -4°F to 140°F (-20°C to 60°C).
- Operating and Storage Relative Humidity: 5 to 95% non-condensing RH.
Dimensions
- WxDxH (in.): 19x20.1x1.75.
- Drawer is adjustable to various rack depths from 20.1" to 31.5".
|
