Features & Applications |
The ENVIROMUX® Intelligent Power Distribution Control Unit allows you to remotely reboot and control power (on/off) to servers and network devices, and monitor voltage and current. It consists of eight NEMA outlets and installs in a vertical configuration to save valuable rack space for highly dense data center environment.
The unit also monitors environmental conditions such as temperature and humidity. Alerts are sent via email or SNMP traps when any monitored power or environmental condition goes out of range of a user-specified range.
- Available model: 120VAC 15A.
- Provides individual on/off/reboot control of eight AC power receptacles.
- Auto scheduler allows for scheduling power on/off/reboot events (daily and weekly events).
- Remote power monitoring of both voltage and current.
- Monitor temperature, humidity and dry contact closures with optional sensors.
|
- Remotely connect to a device to get real time information and perform control functions.
- Outlets can be controlled based on temperature, humidity, current, voltage or switch thresholds.
- Turn on or off a group of outlets based on temperature high and low thresholds.
- Front panel display shows current draw of connected equipment.
- Electromagnetic circuit breakers to prevent temperature from affecting the trip point.
- Circuit breaker trip guards are provided to prevent accidental tripping.
- Vertical enclosure occupies Zero U rack space. It mounts on the back rails or in the cavity space of the cabinet.
- Detachable mounting brackets allow for several mounting options.
- Rugged steel construction with durable powder coat finish.
- Up to 23 units can be connected to one master unit.
- Only the master controller is required to have a network connection. The other devices are accessed through the master unit via serial, telnet, or web interfaces.
|
Specifications |
Power
- Voltage: 120VAC
- AC Input: 15A
- AC Output Total: 12A
- Input Connector: one NEMA 5-15P on 9' power cable
- Output Connectors: eight NEMA 5-15R
Temperature/Humidity Inputs
- One female RJ45 connector for connecting a temperature sensor or temperature/humidity combination sensor.
|
Protocols- HTTP, SNMP, TCP/IP, DHCP
- Operates and configures via HTTP/HTTPS web page, Telnet or RS232 interface.
- Alerts are sent using email or SNMP traps when any monitored power or environmental condition exceeds a user-specified range.
Dimensions
|
Control Methods |
User Interface
- Web interface provides a graphic control interface through a web browser (IE, Netscape, Mozilla).
- Telnet interface provides a text menu control interface with any terminal emulation software.
- SNMP allows read/write capability with trapping.
- Serial interface provides a text menu control interface with any terminal emulation software.
- Administrator and multiple users can be configured.
- User name/password security
- User level access can be limited to specific outlets.
- Unit and outlet names can be configured.
- Outlet groups can be created to perform an action on multiple outlets at once.
- Outlet control includes individual, group and all outlet global control.
- Global sequence allows all the outlets to be turned on or off in a preset sequence up to 999 seconds.
- Outlet reboot automatically turns an outlet off and back on with one command at a preset time up to 999 seconds.
- E-mail notification allows up to two e-mail addresses to receive notifications of alerts or events.
|
Front Panel Interface
- Front panel display shows current draw of connected equipment
- Two digit display shows current from 0-20 amps with true RMS accuracy
- One LED indicator light per circuit breaker
- Light illuminates when the circuit breaker is in the on position and power is present at the input
- One LED indicator per outlet
- Light illuminates when the outlet power relay is on
|

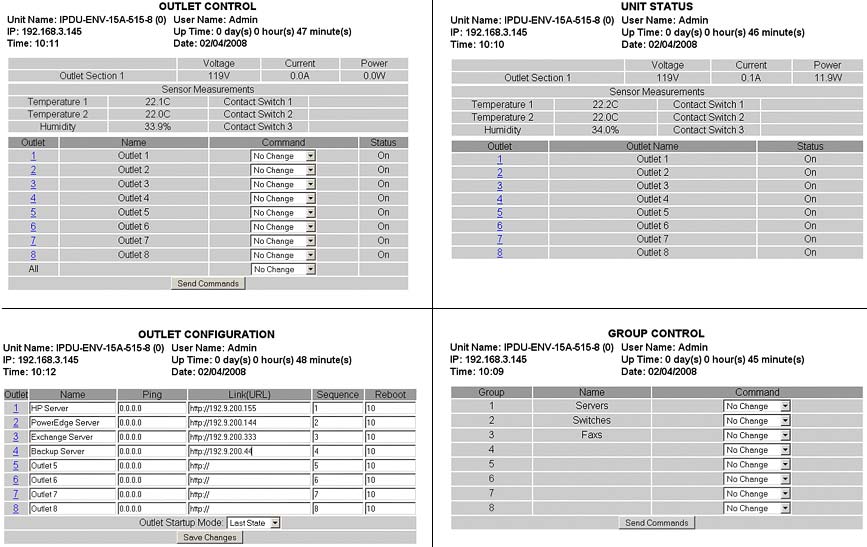

Power Distribution Control Unit Screen Shots |
