USB DVI KVM Switch, 4-, 8-, and 16-Port

Control up to 16 single link DVI-enabled USB computers from one USB keyboard, USB mouse and DVI monitor.

Also known as: USB DVI KVM switch, multi-port KVM switch for DVI Flat Planel Display Monitors, keyboard DVI monitor mouse switch

Additional Product Information

View Customer Testimonials Customer Testimonial
View Data Sheet Data Sheet (PDF)
View Knowledge Base Knowledge Base
USB DVI KVM Switch

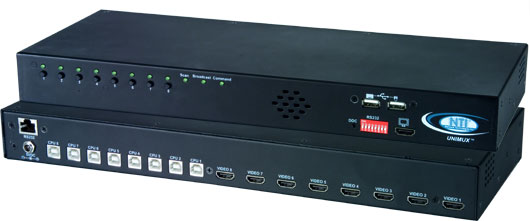

UNIMUX-DVI-8RS (Front & Back)



Designed and Manufactured in the U.S.A.

RoHS Compliant USB DVI KVM Switch

Features & Applications

The UNIMUX™ USB DVI KVM switch allows you to control up to 16 single link DVI enabled computers with one DVI monitor, USB keyboard and USB mouse.
  • Incorporates NTI's patented true autoboot USB switching - all attached USB PCs, SUNs and MACs can be booted simultaneously.
  • Up to 1900x1200 video resolution.
  • Supports DVI interface for crisp and clear video quality on Flat Panel Display.
  • Uses single link HDMI connectors.
  • Fully compliant with USB (1.0, 1.1) standards.
  • USB SUN start-up keys are supported.
  • Supports MAC soft (keyboard) power-on.
  • SUN extra keys are emulated on USB keyboards with Windows keyboard layouts.
  • Front-panel push button for channel selection.
  • LED indicators on switch show which port is active.
  • Fits into 1 RU with supplied rackmount kit.
  • Available with optional RS232 Control.

Specifications

Host connections
  • Female HDMI-A connectors.
  • Female USB Type B connectors.
  • DVI enabled PC, MAC and SUN computers.
  • PCs with USB-enabled OS (Win 98/ME/2000/XP/Vista) and USB ports.
  • PCs with USB-enabled BIOS (legacy USB support) and USB ports.
Monitor
  • Supports crisp and clear video resolution up to 1900x1200.
  • Female HDMI-A connector.
Mouse
  • Female USB Type A connector.
  • Compatible with most USB mice, including USB IntelliMouse®.
  • Mouse is hot-pluggable.
Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter (supplied).
  • Power consumption: 5W
Keyboard
  • Female USB Type A connector.
  • Compatible with most USB keyboards.
  • Keyboard is hot-pluggable.
  • Supports SUN and MAC extra keys.
Cables
  • Interface cables between your computers and the switch are required for proper operation. Use DVI-HDMI-xx-MM and USB-AB-xM to connect computers to the switch.
Environmental
  • Operating temperature: 32°F to 100°F (0°C to 38°C).
  • Storage temperature: -20°F to 140°F (-30°C to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approval
  • CE, RoHS
Warranty
  • Two years

Built-in Control Methods

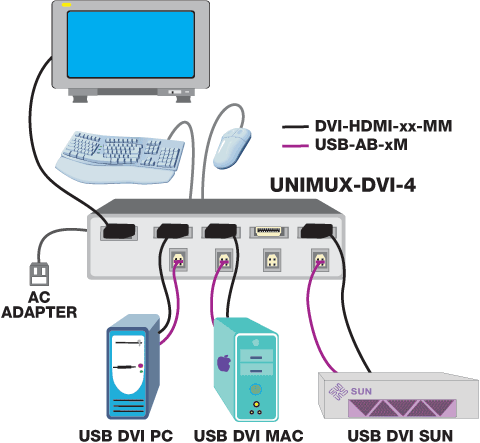

Example application for the UNIMUX USB DVI KVM Switch
Front Panel Interface
  • LEDs indicate currently selected port and mode of operation.
  • Hold in any button for more than five seconds to go into Scan, Broadcast or Command Mode.
    • In Normal Operating Mode, the user can directly operate the selected computer with transparent presence of the NTI switch.
    • Scan Mode automatically and sequentially displays the video from each powered on computer for 2-255 seconds.
    • Broadcast Mode allows the user's keystrokes to be sent to both powered on computers. (Broadcast Mode is not available for MACs.)
    • Command Mode allows the user to give instructions to the switch through his/her keyboard. Keystrokes are not passed to the computer.
Keyboard
  • Scan or Command Modes are available from the keyboard using hot keys.
  • Use the keyboard to command the switch box to select ports or configure the Scan delay.
  • Type <Ctrl>+<`> (or <Compose>+<`>) to go into Command Mode.
  • Press <Esc> to leave Command Mode and return to Normal or Scan Mode.

RS232 Control Method (Optional)

Control
  • RJ45 connector.
  • Baud rate 2400, 9600, 19200, or 38400.
  • Use DIP switches to address up to 15 units, all of which can be daisy-chained and controlled by one serial port.
Commands
  • RS - causes switch to reset so that IN1 connects to OUT1.
  • CS - causes one INx/OUTx connection to occur.
  • RO - reads what input is connected to specified output.
  • RU - reads size of matrix, reports number of inputs and number of outputs on specified switch.

USB DVI KVM Switches

NTI Part # # of CPUS Desktop Size
WxDxH (In.)
Rack Size WxDxH (In.)
(with supplied rackmount kit)
Price Each $ # to Buy Download the Manual
UNIMUX-DVI-4 4 15.2x5.97x1.75 19x5.9x1.75 775 Download the Manual

USB DVI KVM Switches with Optional RS232 Control

NTI Part # # of CPUS Desktop Size
WxDxH (In.)
Rack Size WxDxH (In.)
(with supplied rackmount kit)
Price Each $ # to Buy Download the Manual
UNIMUX-DVI-4RS 4 15.2x5.97x1.75 19x5.9x1.75 800 Download the Manual
UNIMUX-DVI-8RS 8 15.2x5.97x1.75 19x5.9x1.75 980
UNIMUX-DVI-16RS 16 15.2x5.97x1.75 19x5.9x1.75 1760

DVI Cables and USB Cables

DVI-D Male to HDMI-A Male
Single Link Cable (DVI-HDMI-xx-MM)
USB Male Type A to
Male Type B Cable (USB2-AB-xxM-5T)
Length (ft.) Price $ # to Buy Length (m) Price $ # to Buy
3 10 1 2.50
6 15 23.00
10 20 3 4.00
15 38 5 5.00
