| Compatibility |
Control Methods |
Keyboard
- All connectors are female.
- Connector is 6 pin miniDIN.
- Keyboard and mouse presence are emulated 100% of the time so all computers boot error-free.
- Keyboard and mouse are hot-pluggable.
- Will hard or soft boot all PCs 100% of the time.
- SCROLL-, CAPS- & NUM- LOCK lights update upon switching.
Mouse
- All connectors are female.
- Connector is 6 pin miniDIN.
- Compatible with all standard 2-button PS/2 mice as well as the following:
- Alps Glidepoint Touchpad-extended functions (i.e. tapping, etc.) are not supported.
- Cirque Glidepoint Touchpad.
- IBM Scroll Point mouse-extended stick functions are not supported.
- Kensington Orbit Trackball.
- Logitech (and other) 3-button mouse.
- Logitech 2-button Wheel Mouse.
- Microsoft Ballpoint mouse.
- Microsoft IntelliMouse.
Monitor-VGA
- Bandwidth is 150MHz.
- Supports 1900x1200 resolution with no degradation.
- All connectors are female 15 pin high density VGA.
Power
- Two-port switches draw power from attached computers.
- 110 or 220 VAC at 50 or 60Hz for all switches with more than two ports.
|

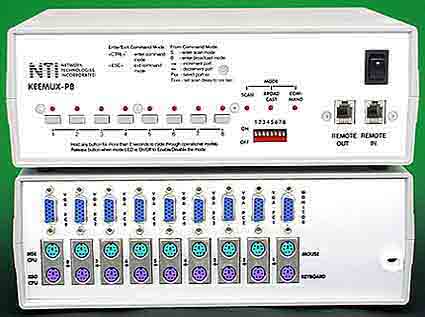

Buttons on Front
- Touch a button and be connected to a CPU or change modes of operation.
- LEDs indicate currently selected port and mode of operation.
- Hold in any button for more than two seconds to go into Scan, Broadcast or Command Mode.
- In Normal Operating Mode, the user can directly operate the selected computer with transparent presence of the NTI switch.
- The Scan feature causes the switch to automatically and sequentially display the video from each powered on computer for 2-255 seconds.
- The Broadcast feature allows the user's keystrokes to be sent to all powered on computers.
- Command Mode allows the user to give instructions to the switch through their keyboard. Keystrokes are not passed to the computer.
Keyboard
- Type CONTROL + ` to go into Command Mode.("`" is the accent mark located on the same key as the tilde "~")
- Press ESCAPE to leave Command Mode and return to Normal Mode
- Scan, Broadcast or Command Modes are available from the keyboard
Wired Remote Option
- Optional-sold separately

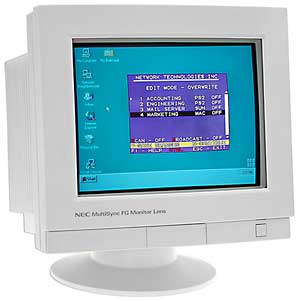

On Screen Display Option
- Optional-sold separately
LCD Option
- Optional-sold separately
RS232 Option
- Optional-sold separately
Rackmount
- Optional-sold separately
Keyboard Adapters
- Optional-sold separately
|
