Rackmount USB KVM Drawer

USB KVM Drawer provides space-saving convenient control.

Also known as: usb kvm drawer, rack mount keyboard drawer, rack mount kvm drawer, USB console drawer, keyboard monitor drawer,
KVM drawers, keyboard LCD drawer, rackmount keyboard drawer, folding monitor.

Additional Product Information

CAD Drawing: Rackmount USB KVM Drawer with 17" LCD

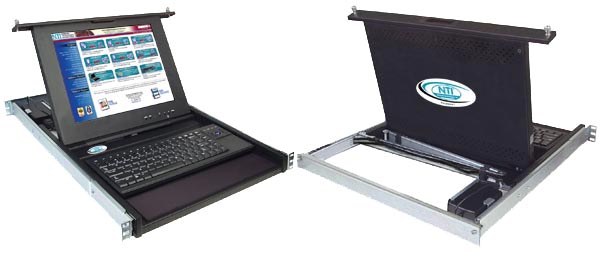

RACKMUX-USB-15-A (Front and Back)

Instant call back
(8am-6pm EST)

Features & Applications
The RACKMUX® USB KVM Console Drawer combines a rackmount LCD monitor, keyboard, and trackball mouse in a space-saving 1RU industrial strength drawer.
Equipped with On Screen Display (OSD). Available with 15 or 17" TFT/LCD monitor. Front panel conceals the unit when not in use. Designed to fit in a standard 19" rack/cabinet.	Drawer is adjustable to various rack depths. 15" drawer ranges from 24" to 35.1". 17" drawer ranges from 29.7" to 37.5". Drawer locks into place when open to prevent it from sliding out of the rack.

Specifications

Hosts

Compatible with USB-enabled PC, SUN or MAC computers.

Keyboard

Male USB Type A connector.
"Gold Crosspoint" keyboard contacts ensure high reliability.

Trackball

Male USB Type A connector.
Tracking speed 500 mm/sec.

Power

110 or 220 VAC at 50 or 60 Hz via AC adapter.

Monitor

15 or 17" TFT/LCD monitor.
1024x768 video resolution for 15" monitor.
1280x1024 video resolution for 17" monitor.
VGA/SVGA/XGA compatible.
Frequency:
- Horizontal: 31.5 to 68 kHz for the 15", and 31.5 to 80 kHz for the 17".
- Vertical: 60 to 85 Hz for the 15", and 56 to 75 Hz for the 17".
Supports Separate and Composite TTL level sync and Sync on Green.
OSD controls for brightness, contrast, horizontal and vertical position, and auto adjust.
Supports the DDC2B protocol.
Supports SUN command codes to set the resolution.
