	SUN SGI video splitter 13W3 video splitter, multiple SUN monitor one computer

SUN & SGI VIDEO SPLITTER

USE ONE SUN TO DISPLAY THE SAME HIGH-RESOLUTION IMAGE ON UP TO 100 MONITORS

Also known as: SUN video splitter, SUN monitor splitter, SUN splitter, video splitter, 13W3 video splitter, 13W3 splitter,
Sun port expander, video port expander. Drive multiple Sun monitors, extend Sun video, split Sun video.

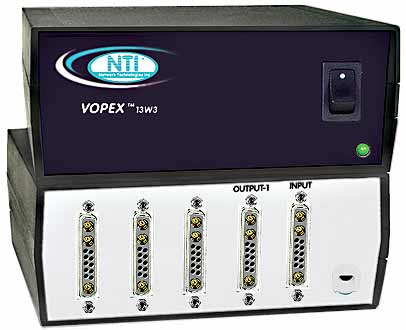

VOPEX-13W3-4 SUN Video Splitter (Front & Back)

Features & Applications

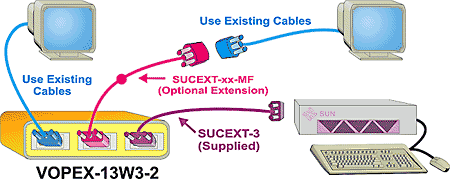

Sun video splitter (video port expander) enables 2, 4, 8 or 16 SUN or SGI monitors to be driven by a single workstation. Identical images are displayed on all monitors. By using our SUCEXT-xx-MF video cables, monitors can be extended up to 250 feet. All images are sharp and clear with no loss of resolution.

Ideal for presentations or classrooms.
Burn-in monitors after repair.
Drive 100 monitors by cascading.
Has locking connectors for cables.
All outputs individually buffered.
1900x1200 resolution with no degradation.

Instant call back
(8am-6pm EST)

Sparc International Member

Specifications

Input Signals

Via one female 13W3 connector.
Six-foot multicoax interface cable included.
Monitor ID signals pass through to OUTPUT1.
All three sync signals supported for 100% compatibility.

Output Signals

Via female 13W3 connectors.
Bandwidth is 250 MHz.
All output are individually buffered.

AVAILABLE SIZES
NTI Part #	# of Ports	Size WxDxH (In)
VOPEX-13W3-2	2	6x6.2x3.4
VOPEX-13W3-4	4	6x6.2x3.4
VOPEX-13W3-8	8	8x6.2x4
VOPEX-13W3-16	16	8.8x7.8x6.5
