SUN computer classroom system

SUN CLASSROOM
Put Every Student’s Monitor In the Instructor’s Control

Teacher Control

Features & Benefits

This system puts every student’s Sun monitor in the instructor’s control.

All students can work independently.
Send the teacher’s screen to any or all trainees’ monitors.
Observe students’ work from your desk.
Blank screens to focus attention.
Students can switch between the teacher’s display and their own with the student controlled system.
Connect hundreds of trainees to student-controlled system.

Teacher Hardware Specifications

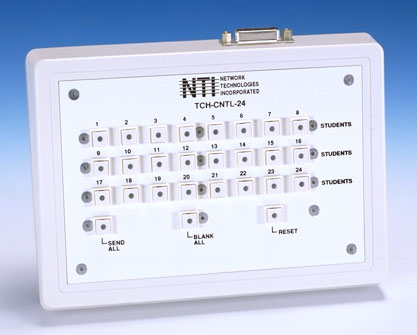

TCH-CNTL-xx

Send instructor’s video to all students.
Send instructor’s video to selected students.
All students view their own computers.
All students’ screens are blanked out.
Connector is female 15 pin D - attaches to TCH-PWR-xx.
Lighted buttons show selected students at a glance.

SE-13W3-2-RP Sun Video Switch

Bandwidth is 300 MHz.
Video connectors are 13W3 female.
Remote port is 9 pin D - for connecting switch to TCH-PWR-xx.
No external power is required.

TCH-PWR-xx

All video connectors are female 15 pin high density.
Connector for TCH-CNTL-xx (controller) is
female 15 pin D.
110 or 220 VAC at 50 or 60Hz.

VOPEX Video Splitters

All Sun connectors are 13W3 female.
Power is 110 or 220 VAC at 50 or 60Hz.

| For More Information on Sun VOPEX Video Splitters |

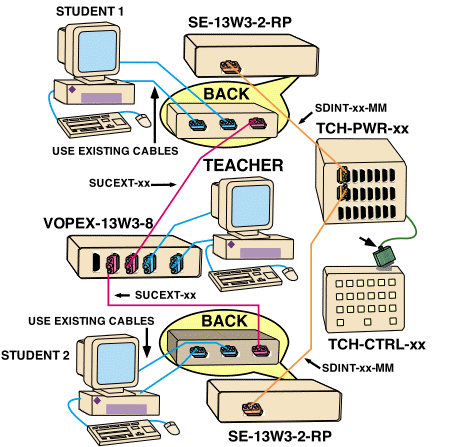

TEACHER CONTROL
	Students have local control of their own computers, but the teacher chooses what each student’s monitor will display. The teacher can broadcast their video to any student or blank students' screens during lectures.

Student Specifications
Students control a switch next to their computers.	Student can view their own computer or switch to view the teacher’s computer.

Student Hardware Specifications
VOPEX Video Splitters All Sun connectors are 13W3 female. Crisp and clear 1900x1200 resolution. Power is 110 or 220 VAC at 50 or 60Hz.	SE-13W3-2 Sun Video Switch Bandwidth is 300 MHz. Crisp and clear 1900x1200 resolution. Video connectors are 13W3 female. Switch ports with push button. LEDs indicate selected port. Power is 110 or 220 VAC at 50 or 60Hz.

| For More Information on Sun Video Switches |

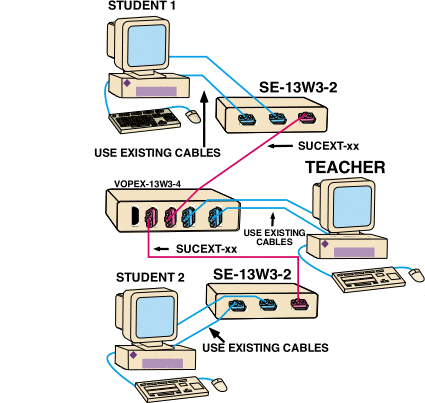

STUDENT CONTROL
	With student controlled switching, each student has an independent switch box and can alternately view the teacher’s video output or display their own video.

Supporting Cables
