Intelligent Power Distribution Control Units

Monitor and manage power over IP.
Remotely reboot servers, routers, web cams, firewalls and other remote devices.

Also known as: Intelligent Power Distribution Units, monitor power, Zero-U vertical PDU, 1 RU horizontal PDU,
server room monitoring alert, remote power management IP, remote reboot

Available options:
· Horizontal &
Vertical
· 8, 16, 24 outlets
· 15A, 20A, 30A


Additional Product Information

View Data Sheet Data Sheet (PDF)
Intelligent Power Distribution Units remotely reboot and control power to servers and network devices
IPDU-SW-15A-515-8H


RoHS

Features & Applications

The ENVIROMUX® Intelligent Power Distribution Control Units allow you to remotely reboot and control power (on/off) to servers and network devices, and monitor voltage and current. They consist of 8, 16, or 24 NEMA outlets with capacities of 15A, 20A or 30A, and install in a horizontal or vertical configuration to save valuable rack space for highly dense data center environment.

  • Provides individual on/off control of AC power receptacles.
  • Remote power monitoring of both voltage and current.
  • Remotely connect to a device to get real time information and perform control functions.
  • Outlets can be controlled through the web interface.
  • Front panel display shows current draw of connected equipment.
  • Audible alarm signals current threshold warning and current overload.
  • Vertical enclosure occupies Zero RU rack space. It mounts on the back rails or in the cavity space of the cabinet.
  • Horizontal enclosure occupies 1 RU rack space.
    • Detachable mounting brackets allow for several mounting options.
  • Power Up Sequencing controls which equipment is powered up or down to avoid in-rush current.

Specifications

Power
  • Voltage: 115VAC
  • AC Capacity: Models available in 15A, 20A, or 30A. See chart below for details.
  • Input Connector: Models available in NEMA 5-15p, NEMA 5-20p, or NEMA L5-30P on 10' power cable.
  • Output Connectors: Models available in NEMA 5-15r or NEMA 5-20r.
Protocols
  • HTTP, SNMP, TCP/IP, DHCP
  • Operates and configures via HTTP/HTTPS web page interface, or included utility software.
  • Alerts are sent using email or SNMP traps when any monitored current condition exceeds a user-specified range.
    • Alerts and power data are posted in message log, which is accessible through Web user interface. The log can be downloaded as a CSV file.
Dimensions
  • WxDxH (in.):
    • IPDU-SW-15A-515-8H: 3.5x17x1.7
    • IPDU-SW-20A-520-8H: 3.5x17x1.7
    • IPDU-SW-15A-515-8V: 1.5x2.2x23
    • IPDU-SW-20A-520-8V: 1.5x2.2x23
    • IPDU-SW-20A-520-16V: 2.2x1.7x49
    • IPDU-SW-30A-520-16V: 2.2x1.7x49
    • IPDU-SW-20A-520-24V: 2.2x1.7x70
    • IPDU-SW-30A-520-24V: 2.2x1.7x70
Environmental
  • Operating temperature: 32°F to 104°F (0°C to 40°C).
  • Storage temperature: -13°F to 149°F (-25°C to 65°C).
  • Operating and Storage Relative Humidity: 0 to 90% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS

Control Methods

User Interface
  • Web interface provides a graphic control interface through a web browser (IE, Netscape, Mozilla).
    • SNMP allows read/write capability with trapping.
    • User name/password security.
    • Change or update usernames and passwords.
    • E-mail notification allows up to three e-mail addresses to receive notifications of alerts or events.
    • Outlet control includes individual, group and all outlet global control.
      • In the "control" section, select outlets by checking the box to the right of the outlet name. Enter the username and password below and check on or off to change status.
  • Utility Software interface provides additional control options.
    • Administrator and multiple users can be configured.
    • User level access can be limited to read only or read/write.
    • Unit and outlet names can be configured.
    • View entries stored in the events or data log.
    • Power consumption chart records current and kilowatt-hour usage, can be filtered by day, month, or custom time frame.
Front Panel Interface
  • Two digit display with corresponding LED indicator
    • Displays current from 0-20 amps with true RMS accuracy.
    • Displays IP address of unit.
  • One LED indicator per outlet (most models)
    • Light illuminates when the outlet power is on.
  • Function button controls network connectivity.
IPDU-SW-20A-520-16V
IPDU-SW-20A-520-16V

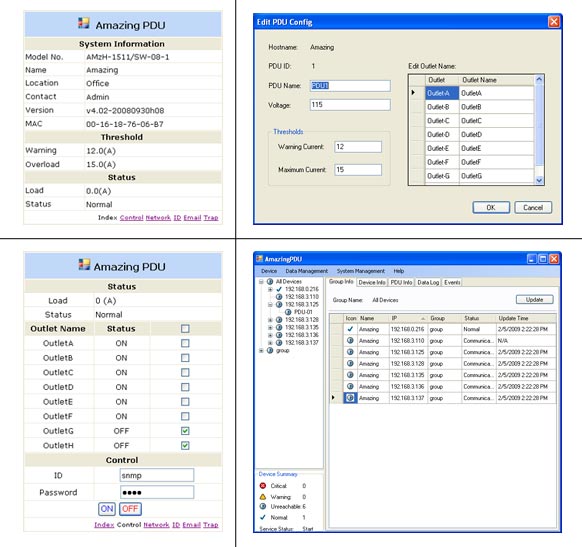

Remote Power Reboot Interface Screen Shots
Web Interface Screen ShotIPDU Utility Software Screen Shot


Intelligent Power Distribution Units

NTI Part # Rack Units Capacity Input Output Circuit Breakers Price $ # to Quote # to Buy
IPDU-SW-15A-515-8H 1RU 15A NEMA 5-15p 8 x NEMA 5-15r 1 435
IPDU-SW-20A-520-8H 1RU 20A NEMA 5-20p 8 x NEMA 5-20/15r 1 580
IPDU-SW-15A-515-8V 0RU 15A NEMA 5-15p 8 x NEMA 5-15r 1 435
IPDU-SW-20A-520-8V 0RU 20A NEMA 5-20p 8 x NEMA 5-20/15r 1 580
IPDU-SW-20A-520-16V 0RU 20A NEMA 5-20p 16 x NEMA 5-20/15r 1 640
IPDU-SW-30A-520-16V 0RU 30A NEMA L5-30p 16 x NEMA 5-20/15r 2 785
IPDU-SW-20A-520-24V 0RU 20A NEMA 5-20p 24 x NEMA 5-20/15r 1 795
IPDU-SW-30A-520-24V 0RU 30A NEMA L5-30p 24 x NEMA 5-20/15r 3 905
