LOW-COST PS/2 KVM SWITCH

PC SWITCH PROVIDES AFFORDABLE DESKTOP MANAGEMENT
Smaller, Less Expensive than Standard 2 Port KVM Switch Box

Also known as KVM Switch, PC switch, PS/2 Switch, keyboard switch, monitor switch, server switch,cpu sharer switch,
2 port KVM switch box, 4 port pc switches, computer switch box, monitor switch box or keyboard video mouse switch.

PC Switch, KEEMUX-P2-LC 2 Port PS/2 KVM Switch Box

Click here to zoom in on image

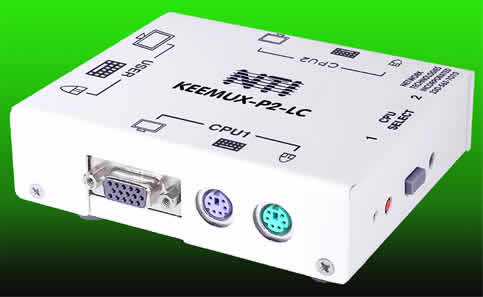

KEEMUX-P2-LC (Front & Back)

Instant call back
(8am-6pmEST)

Available Size
NTI Part #	#of CPUs	Size (In.) WxDxH	Price	Put in Shopping Cart
KEEMUX-P2-LC	2	4.8x3.1x1	$95
KEEMUX-P4-LC	4	8x6.2x2.5	$205

Features & Applications

Looking for an easy, affordable PC switch? The KEEMUX-Px-LC PS/2 KVM switch allows you to control up to four PCs with one keyboard, monitor & mouse. Great for Small Office/Home Office (SOHO) use.

Users gain:
More Space -small footprint switch clears your desktop of three peripherals.
More Time -saves the time you waste moving from one set of peripherals to another.
More Money -eliminates the expense of one keyboard, monitor and mouse.

Considerably smaller than other PS/2 switches.
Control up to four network computers from one office.
The KEEMUX-P2-LC is housed in a compact, durable metal chassis.
Compatible with all PS/2-style PCs and laptops.
Auto scan both computers to catch system failures early.

Compatibility

Control Methods

Keyboard

Female 6 pin miniDIN connectors.
Keyboard and mouse presence are emulated 100% of the time so all computers boot error-free.
Keyboard and mouse are hot-pluggable.
PC switch will hard or soft boot all PCs 100% of the time.
SCROLL-, CAPS- & NUM- LOCK lights update upon switching.

Mouse

Female 6 pin miniDIN connectors.
Compatible with all standard 2-button PS/2 mice as well as the following:
- Alps Glidepoint Touchpad-extended functions (i.e. tapping, etc.) are not supported.
- Cirque Glidepoint Touchpad.
- IBM Scroll Point mouse-extended stick functions are not supported.
- Kensington Orbit Trackball.
- Logitech (and other) 3-button mice.
- Logitech 2-button Wheel mouse.
- Microsoft Ballpoint mouse.
- Microsoft Intellimouse®.

Monitor-VGA

Bandwidth is 150MHz.
Supports 1900x1200 resolution with no degradation.
Female 15 pin HD VGA connectors.

Power

This switch draws power from attached computers.

Warning

The KEEMUX-P2-LC does not support the USB-PS/2 Adapter.

Buttons on Front

Touch a button and be connected to a CPU or change modes of operation.
LEDs indicate currently selected port and mode of operation.
Hold in any button for more than two seconds to go into Scan Mode or Command Mode.
- Normal Mode allows the user to directly operate the selected computer with a transparent presence of the NTI switch.
- Scan Mode feature causes the switch to automatically and sequentially display the video from each powered on computer for 2-255 seconds.
- Command Mode allows the user to give instructions to the switch through their keyboard. Keystrokes are not passed to the computer.

Keyboard

To toggle between ports, press the Ctrl key twice (like double-clicking a mouse). This will cause the switch to sequence to the next available port. The CPU LEDs on the switch will indicate which port is active after each sequence.
Type CONTROL + ` to go into Command Mode. ("`" is the accent mark located on the same key as the tilde "~").
Press ESCAPE to leave Command Mode and return to Normal Mode.
Scan Mode or Command Mode are available from the keyboard.
