USB KVM SWITCH

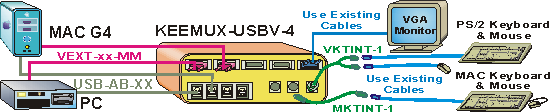

Hosts

• Compliant with various USB hosts including:
  • PCs with USB ports and USB-enabled OS (Windows 98/2000).
  • PCs with USB-enabled BIOS (legacy USB support) and USB ports.
  • MACs with USB ports running OS 8 or later.

Keyboard

• Female 8 pin miniDIN connectors.
• For USB keyboard support use NTI's NEW KEEMUX-USBV-xU.
• User devices can be PS/2, SUN or MAC.
  • SUN US/English keyboards are supported across all platforms. Non-US SUN keyboards are supported to SUN-only computers.
  • NTI recommends using SUN keyboards for multiplatform use because they have the most keys.
  • SUN startup keys are supported on SUN and USB input devices.
  • The only MAC keyboard supported is the Apple Extended keyboard.
  • MAC startup keys on all platforms of input devices are supported.

Monitor

• Female 15 pin HD connectors.
• Supports crisp & clear 1900x1200 video resolution with no degradation.
• A multiscan VGA monitor is required to display the different video outputs from various platforms.
• Bandwidth is 150 MHz.

Mouse

• Female 8 pin miniDIN connectors.
• For USB mouse support use NTI's NEW KEEMUX-USBU-x.
• Compatible with all standard 2-button PS/2 mice as well as the following:
  • Microsoft IntelliMouse.
  • Microsoft Ballpoint Mouse.
  • Logitech (and other) 3-button mice.
  • Logitech 2-button Wheel Mouse.
  • Alps Glidepoint Touchpad-(extended functions - i.e. tapping, etc. - are not supported.)
  • Cirque Glidepoint Touchpad.
  • IBM Scrollpoint Mouse - extended stick functions are not supported.
  • Kensington Orbit Trackball (2-Button).

Power

• 110 or 220 VAC at 50 or 60 Hz.

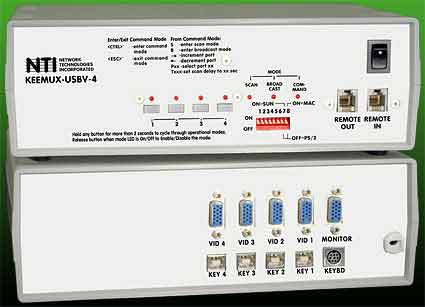

Buttons on Front Panel

• Use front panel buttons to change ports & access COMMAND modes.
• Touch a button and be connected to a CPU or change modes of operation.
• LEDs indicate currently selected port and mode of operation.
• Hold in any button for more than two seconds to go into Scan or Command Mode.
  • In Normal Operating Mode, the user can directly operate the selected computer with transparent presence of the NTI switch.
  • The Scan feature causes the switch to automatically and sequentially display the video from each powered on computer for 2-255 seconds.
  • Command Mode allows the user to give instructions to the switch through their keyboard. Keystrokes are not passed to the computer.

Keyboard

• Type CONTROL + ` to go into Command Mode. ("`" is the accent mark located on the same key as the tilde "~").
• Press ESCAPE to leave Command Mode and return to Normal Mode.
• Scan and Command Mode are available from the keyboard.
