Rackmount KVM Drawer with USB KVM Matrix Switch

Two users control up to eight USB computers

Also known as: rackmount kvm drawer with USB KVM Matrix Switch, rack mount keyboard drawer,
console drawer, keyboard monitor drawer, KVM drawers, keyboard LCD drawer, rackmount keyboard drawer.
2 Users and
8 USB Computers in 1RU

Single-Person Installation

Additional Product Information

View CAD Drawings Video:
Single-Person Installation
Single Person Installation Manual Manual (PDF):
Single-Person Installation
Keyboard Layouts:
RACKMUX-V15/17-N-2X8U
RACKMUX-V17-N-2X8U
zoomClick here to zoom in on image

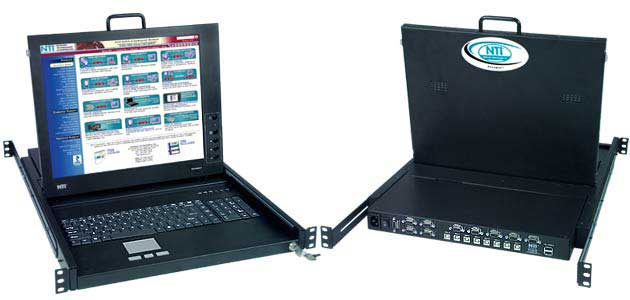

RACKMUX-V17-N-2X8U (Front and Back)

Designed and Manufactured in the U.S.A.


ROHS compliant KVM drawer with USB Matrix switch

Features & Applications

The RACKMUX® KVM Drawer with Built-In USB KVM Matrix Switch combines a rackmount LCD monitor, keyboard, touchpad mouse and a USB KVM Matrix Switch in a space-saving 1RU industrial strength drawer.
  • Available with forward-folding 15" or 17" TFT/LCD VGA monitor.
    • 1024x768 video resolution for 15" monitor.
    • 1280x1024 video resolution for 17" monitor.
    • Tilt LCD up and back to adjust to any comfortable viewing angle to 120°
  • Two users can control up to eight USB-enabled computers.
  • Torque-friction hinges-monitor does not wobble, spring, or slam shut.
  • Designed to be a one-person job when installing the drawer.
  • Compact, heavy-duty tactile keyboard with large padded wrist-rest.
  • Rugged steel construction with durable powder coat finish.
  • LCD auto-shutoff in closed position.
  • Drawer locks into place when open to prevent it from sliding out of the rack.
  • Keyboard available in multiple languages: English(US), English(UK), German, Italian, French, Spanish, and Turkish.

Specifications

Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
Dimensions
  • WxDxH (Inches): 19x34.4x1.75.
  • Drawer mounting is adjustable to various rack depths from 35" deep to 39" deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals
  • CE, RoHS
Environmental
  • Operating temperature: 32°F to 104°F (0°C to 40°C).
  • Storage temperature: -4°F to 140°F (-20°C to 60°C).
  • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
Warranty
  • Two years

Rackmount USB + PS2 KVM Drawer Specifications
USB KVM Matrix Switch

KVM Drawers with USB Matrix Switch

NTI Part # Screen Size # of Users # of CPUs Keyboard Features Price Each $ # to
Quote		 # to Buy Power Cord Length
RACKMUX-V15-N-2X8U 15 2 8 Numeric keypad 2,295
RACKMUX-V17-N-2X8U 17 2 8 Numeric keypad 2,395
USB+VGA male-male
USBVEXT-xx-MM

Compatible Cables

Male to Male VGA, Male USB A to
Male USB B (USBVEXT-xx-MM)		 Male to Female VGA (VEXT-15)
Length (ft.) Price $ # to
Quote		 # to Buy Length (ft.) Price $ # to
Quote		 # to Buy
3 13 15 17
6 18 USB Active Extension Cable (USB-A+A-5M)
10 23 5 65
15 31
Request Quote
