Rackmount VGA USB + PS/2 KVM Drawer, up to 1920x1200 Resolution

VGA USB + PS/2 KVM Drawer provides space-saving convenient control.

Also known as: usb kvm drawer, rack mount PS/2 keyboard drawer, rack mount kvm drawer, USB console drawer, keyboard monitor touchpad mouse drawer, KVM drawers, keyboard LCD drawer, folding VGA monitor.

Rackmount VGA USB + PS/2 KVM Drawer with numeric keypad

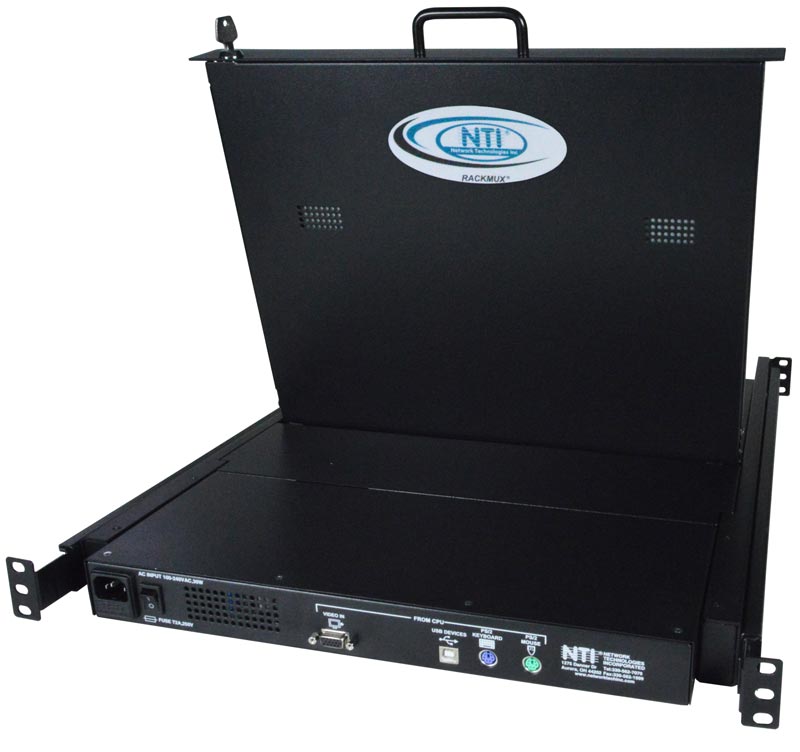

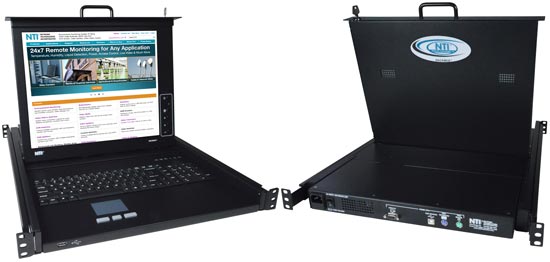

RACKMUX-V17-N (Front & Back)

Additional Images

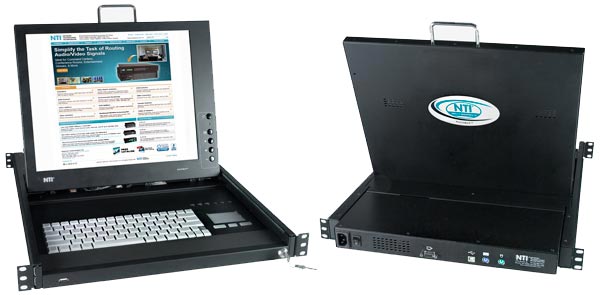

  • RACKMUX-V17 - Rackmount VGA USB + PS/2 KVM Drawer
  • RACKMUX-V17HR-N - Optional Hi-Res Rackmount VGA USB + PS/2 KVM Drawer

Product Highlights

  • Single-Person Installation
  • Optional Hi-Res 1920x1200 17.1" LCD
  • Designed and Manufactured in the U.S.A.

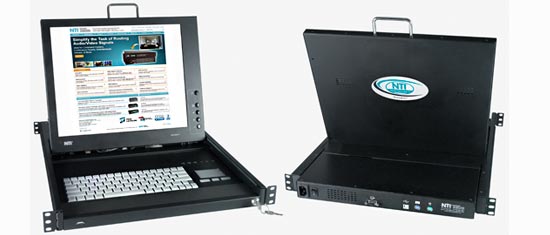

The RACKMUX® VGA USB + PS/2 KVM Drawer combines a rackmount LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial strength drawer.

The RACKMUX® VGA USB + PS/2 KVM Drawer combines a rackmount LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial strength drawer.

  • Available with 15" or 17" Active Matrix LCD flat panel VGA monitor.
    • Optional ultra high resolution 1920x1200 WUXGA 17.1" monitor available.
    • Tilt LCD up and back to adjust to any comfortable viewing angle to 120°
  • Compatible with USB and PS/2 computers.
  • Torque-friction hinges-monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard.
    • Available with 17-key numeric keypad or large padded wrist-rest.
  • Rugged steel construction with durable powder coat finish.
  • Equipped with On Screen Display (OSD).
  • Designed to be a one-person job when installing the drawer.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
    • Front quick-release latches for pushing the drawer back into the rack.
  • LCD auto-shutoff in closed position
  • Internal cable arm provides proper cable management for sliding the drawer open and closed.
  • Front panel security lock.
  • Front panel USB port to connect an external USB device, such as a flash drive.
  • Available with optional 24VDC power.
  • Available with optional mounting bracket for two-post style telco rack.
Host Interface
  • Compatible with PS/2, UNIX and USB computers.
  • Multiplatform support: Windows 2000/XP/Vista/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • One female 15-pin HD, one female USB Type B, and two female 6-pin minDIN connectors.
  • Use with NTI Multi-Platform KVM Switches to control multiple PC, SUN and MAC computers.
Monitor
  • Forward-folding 15" or 17" Active Matrix TFT LCD flat panel VGA monitor.
  • Resolution:
    • RACKMUX-V15(-N): 1024x768
    • RACKMUX-V17(-N): 1280x1024
    • RACKMUX-V17HR-N(-24V): 1920x1200
  • Tilt: up to 120°.
  • Frequency:
    • RACKMUX-V15(-N), RACKMUX-V17(-N):
      • Horzontal: 31 to 80 KHz
      • Vertical: 55 to 76 Hz.
    • RACKMUX-V17HR-N(-24V):
      • Horizontal: 30 to 80 KHz
      • Vertical: 56 to 75 KHz
  • Brightness:
    • RACKMUX-V15(-N): 250 nits
    • RACKMUX-V17(-N): 300 nits
    • RACKMUX-V17HR-N(-24V): 275 nits
  • Contrast Ratio:
    • RACKMUX-V15(-N), RACKMUX-V17(-N): 500:1
    • RACKMUX-V17HR-N(-24V): 800:1
  • Supports DDC1 and DDC2B protocols.
  • OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
Cables
  • 6-foot (1.8-meter) 15-pin HD VGA male to male cable included.
  • 6-foot (1.8-meter) USB Type A male to USB Type B male cable included.
  • 6-foot (1.8-meter) dual 6-pin miniDIN male to male keyboard/mouse cable included.
  • 6-foot (1.8-meter) power supply cable included (not included with 24V option).
Devices
  • Keyboard available in: English (US).
    • RACKMUX-V15/V17: 83-key (US) keyboard with wrist-pad.
    • RACKMUX-V15-N, RACKMUX-V17-N, RACKMUX-V17HR-N(-24V): 100-key (US) keyboard with numeric keypad.
  • Three button touchpad mouse.
  • Front panel USB 1.1 port to connect external USB devices.
    • Female USB Type A connector.
    • KVM drawer must be connected to a USB-enabled computer.
MTBF
  • RACKMUX-V15: 41,704 hrs
  • RACKMUX-V15-N: 41,596 hrs
  • RACKMUX-V17: 40,923 hrs
  • RACKMUX-V17-N: 40,530 hrs
Power
  • RACKMUX-V15(-N), RACKMUX-V17(-N), RACKMUX-V17HR-N
    • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
    • Available power cord lengths: 1/1.5/3/6 feet
    • Power Consumption: 30 W
    • Maximum Inrush Current: 30A
  • RACKMUX-V17HR-N-24V
    • 3-pin terminal block for 24V power source.
    • Accepts 18~36VDC (24VDC nominal).
    • For installation in a 24V Telecom environment.
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
Dimensions
  • WxDxH: 19x23.9x1.75 Inches. (483x607x44 millimeters)
    • Handle adds an additional 1.5" (38 mm) to the depth when monitor is in closed position.
  • Weight: 26 lbs. (12 kg)
  • Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Application Drawings

  • Rackmount VGA USB + PS/2 KVM Drawer

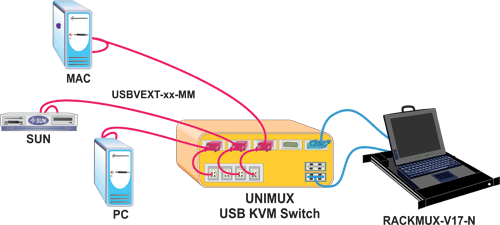

    Rackmount USB KVM Drawer Application with Unimux USB KVM Switch
    Configuration and cable illustration of VGA USB + PS/2 KVM Drawer on how to provide space-saving convenient control.

CAD Drawings

  • Maximum Tilt Angle Diagram
    Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers
    Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers

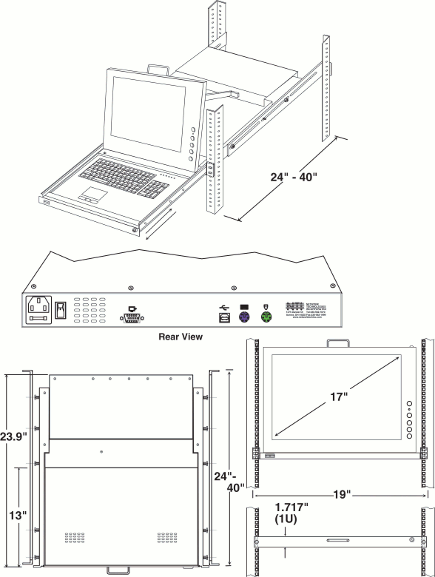

  • RACKMUX-V15
    Rackmount USB + PS/2 KVM Drawer with 15in Monitor
    Rackmount USB + PS/2 KVM Drawer with 15" Monitor
  • RACKMUX-V17
    Rackmount USB + PS/2 KVM Drawer with 17in Monitor
    Rackmount USB + PS/2 KVM Drawer with 17" Monitor
  • RACKMUX-V15-N
    Rackmount USB + PS/2 KVM Drawer and numeric keypad with 15in Monitor
    Rackmount USB + PS/2 KVM Drawer and numeric keypad with 15" Monitor
  • RACKMUX-V17-N
    Rackmount USB + PS/2 KVM Drawer and numeric keypad with 17in Monitor
    Rackmount USB + PS/2 KVM Drawer and numeric keypad with 17" Monitor

Keyboard Layouts

  • RACKMUX-V15/V17
    Rackmount USB + PS/2 KVM Drawer with Touchpad Mouse
    Rackmount USB + PS/2 KVM Drawer with Touchpad Mouse

VGA USB + PS/2 KVM Drawers with VGA Monitor

NTI Part # Description Screen Size Video Resolution Power Cord Length Price Quote Buy
RACKMUX-V15 VGA USB + PS/2 KVM Drawer 15" 1024x768 $990.00
RACKMUX-V15-N VGA USB + PS/2 KVM Drawer, numeric keypad 15" 1024x768 $1,020.00
RACKMUX-V17 VGA USB + PS/2 KVM Drawer 17" 1280x1024 $1,090.00
RACKMUX-V17-N VGA USB + PS/2 KVM Drawer, numeric keypad 17" 1280x1024 $1,120.00
RACKMUX-V17HR-N VGA USB + PS/2 KVM Drawer, numeric keypad 17.1" 1920x1200 $1,190.00
RACKMUX-V17HR-N-24V VGA USB + PS/2 KVM Drawer, numeric keypad + 24V power 17.1" 1920x1200 N/A $1,495.00

Mounting Bracket for two-post style tele rack

NTI Part # Description Price Quote Buy
RL-T15-TEL Mounting Bracket for two-post style tele rack $25.00
