VGA Plenum Video Cable, KVM Extension

Extend Keyboard Monitor Mouse with long cord

 Home | Shop | About Us | Contact Us

High Resolution Video Cable

Computer monitor cable extends high resolution

Also known as: VGA cable, VGA extension, Computer Cable, Monitor Cables, VGA video cable, All in one VGA & USB extension cable, VGA & USB interface cable, VGA cable, triple shielded monitor cable, all in one extension cable for keyboard monitor mouse.

Features & Applications

NTI’s VGA cable for video monitor extension. Video cable extends your display possibilities with guaranteed 1900x1200 resolution through 250 feet. The superior construction of our triple shielded VGA monitor cable delivers crisp and clear high resolution video without booster boxes. Gold plated copper contact pins maximize conductivity with no loss of data. To help customers find the perfect solution to meet their application and budget needs, NTI offers three varieties of video cables: Multi-Minicoax Cable, Multi-RG59 Cable, and Discreet-Coax Cable.
Construction of a Coax Cable
Coax Type Outside Diameter
(OD in inches)
Mini 0.1
RG59 0.25
RG11 0.4
Multi-Minicoax Coax Cables are made with 3 mini coax cables and 9 wires molded under one jacket. Available as fully molded cables from 3 through 100 feet. Supports 1900x1200 resolution through 50 feet.

Multi-RG59 Cables are made with 3 RG59 coax and 4 pairs under one jacket with hand assembled ends. Custom made up to 250 feet for Standard VGA*, supports 1900x1200 resolution through 125 feet.
Discreet-Coax Cables are made with three RG11 coax & 2 RG59 coax. Custom made with ends that plug in to the large coaxes & convert the discreet coax cables to standard VGA connectors. Supports Standard VGA* to 500 feet, & 1900x1200 VGA to 250 feet.

*Standard VGA video is 640x350, 640x400 or 640x480 resolution.

PC Video Cables, Video Adapters,
VGA & USB Extension, VGA & USB Interface

Extend 1900X1200 VGA to 100 feet with no loss of signal


VEXT-xx VEXT-PNLM-xx VEXT-FLT-xx
VEXT-3/6/10/15/25/35/50/75/100
$6.00 - $74.00 Order RoHS Compliant VGA Monitor Cable
VGA Cable Extension through 100 feet
Gold Plated Copper Contacts
Cable diameter: 0.35"
Shield: mylar foil, braided shield, drain wire

 VEXT-PNLM-25/50/75/100
$105.00 - $345.00 Order
Plenum VGA Cable Extension through 100 feet
CMP Rated flame-retardant plenum PVC jacket
Gold Plated Copper Contacts
Cable diameter: 0.30"
Shield: mylar foil, braided shield, drain wire


 VEXT-FLT-3/6/10/15/25/35/50
$9.00 - $72.00 Order RoHS Compliant Flat VGA Monitor Cable
Flat VGA Cable, Male to Female
Extension through 50 feet
Cable thickness: 0.20"
Cable width: 0.47"
Shield: mylar foil, braided shield, drain wire
VEXT-xx-MM VEXT-PNLM-xx-MM VEXT-FLT-xx-MM
VEXT-1.5/3/6/10/15/25/35/50/75/100-MM
$5.00 - $74.00 Order RoHS Compliant VGA Monitor Cable
VGA Cable Extension through 100 feet
Gold Plated Copper Contacts
Cable diameter: 0.35"
Shield: mylar foil, braided shield, drain wire
View Customer TestimonialCustomer Testimonial
 VEXT-PNLM-25/50/75/100-MM
$105.00 - $345.00 Order
Plenum VGA Cable Extension through 100 feet
CMP Rated flame-retardant plenum PVC jacket
Gold Plated Copper Contacts
Cable diameter: 0.30"
Shield: mylar foil, braided shield, drain wire

 VEXT-FLT-1.5/3/6/10/15/25/35/50-MM
$7.00 - $72.00 Order RoHS Compliant Flat VGA Monitor Cable
Flat VGA Cable, Male to Male
Extension through 50 feet
Cable thickness: 0.20"
Cable width: 0.47"
Shield: mylar foil, braided shield, drain wire
VEXT-THN-xx VKMEXT-xx VGA and USB Interface
VEXT-THN-1.5/3/6/10/15/25/35/50
$6.00 - $40.00 Order RoHS Compliant Super Thin VGA Monitor Cable
Super Thin VGA Cable, Male to Female
Extension through 50 feet
Cable diameter: 0.22"
Shield: mylar foil, braided shield, drain wire		 VKMEXT-3/6/10/15/25/35/50/75/100
$15.00 - $122.00 Order RoHS Compliant VGA + PS/2 Keyboard and Mouse Extension Cable
PS/2 Keyboard, Mouse & Monitor
Under One Jacket
Gold Plated Copper Contacts
Shield: mylar foil, braided shield, drain wire
Customer Testimonial
 USBVEXT-3/6/10
$13.00 - $23.00 Order RoHS Compliant VGA + USB Extension Cable
USB & VGA Extension Cable
Male to Female 15 Pin HD,
A (Male) to A (Female)
Gold Plated Copper Contacts
Shield: mylar foil, braided shield, drain wire
VEXT-THN-xx-MM VKMEXT-xx-MM VGA and USB Extension
VEXT-THN-1.5/3/6/10/15/25/35/50-MM
$6.00 - $40.00 Order RoHS Compliant Super Thin VGA Monitor Cable
Super Thin VGA Cable, Male to Male
Extension through 50 feet
Cable diameter: 0.22"
Shield: mylar foil, braided shield, drain wire		 VKMEXT-3/6/10/15/25/35/50/75/100-MM
$15.00 - $122.00 Order RoHS Compliant VGA + PS/2 Keyboard and Mouse Interface Cable
PS/2 Keyboard, Mouse & Monitor
Under One Jacket
Gold Plated Copper Contacts
Shield: mylar foil, braided shield, drain wire		 USBVEXT-3/6/10/15-MM
$13.00 - $31.00 Order RoHS Compliant VGA + USB Interface Cable
USB & VGA Extension Cable
Male to Male 15 HD,
USB A (Male) to B (Male)
Gold Plated Copper Contacts
Shield: mylar foil, braided shield, drain wire
USBVEXT-6-MM ships in black
AVEXT-xx-MM VEXT-UTHN-xx-MM VINT-5B-6
AVEXT-10/15/25/50/75/100-MM
$13.00 - $87.00 Order RoHS Compliant VGA Stereo Audio Cable
VGA & Stereo Audio Cable
Male to Male
Shield: mylar foil, braided shield, drain wire		 VEXT-UTHN-1-5/3/6/10-MM
$13.00 - $36.00 Order RoHS Compliant VGA Stereo Audio Cable
Ultra Thin VGA Cable, Male to Male
Extension through 10 feet
Cable diameter: 0.19"
Shield: mylar foil, braided shield, drain wire		 VINT-5B-6
$30.00 Order RoHS Compliant VGA male-5 BNC male
VGA Adapter.
PC to BNC.


PC Keyboard, Mouse Cables and Adapters

Extend PC keyboards and mice to 500 feet with no loss of signal

PS/2 Keyboard and Mouse cable PS/2 Keyboard and Mouse cable USB PS/2 Adapter
VVKINT-3/6/10/15/25
VVKEXT-35/50/75/100

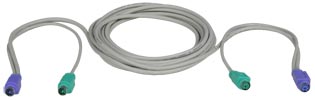

$7.00 - $78.00 Order RoHS Compliant PS/2 Keyboard and Mouse Extension Cable
PS/2 Keyboard and Mouse
Extension "Y" Cable.
Shield: mylar foil, braided shield, drain wire		 VVKINT-3/6/10/15/25/35/50-MM
VVKEXT-75/100-MM
$7.00 - $78.00 Order RoHS Compliant PS/2 Keyboard and Mouse Interface Cable
PS/2 Keyboard and Mouse
"Y" Cable.
Shield: mylar foil, braided shield, drain wire		 USB-PS2
$19.00 Order RoHS Compliant USB PS2 Adapter Converter
View Specifications
Connect USB PS/2 to NTI universal switches
View Customer TestimonialCustomer Testimonial

MINIDIN6-FF
MINIDIN6-FF
$4.85 Order
6-pin miniDIN
Female to female gender changer.

More Computer Cable Info: CUSTOM CABLES & COAX CABLES CONSTRUCTION
