Touchscreen and CAC Reader Compatible VGA USB KVM Switch

Control up to 32 USB computers with one USB keyboard, USB mouse & VGA monitor

Also known as: Industrial VGA USB KVM Switch, UNIMUX VGA USB KVM Switch, usb switch, universal serial bus kvm switcher.

High Density VGA USB KVM Switch, with USB Peripheral Port Option - UNIMUX-USBV-xHDU

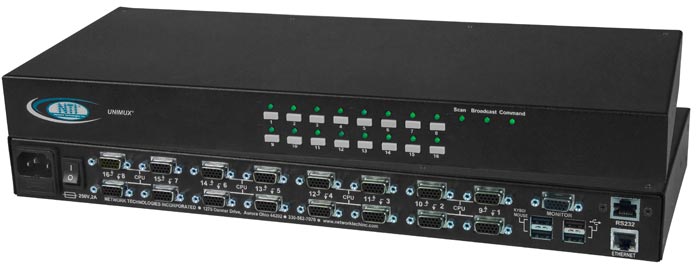

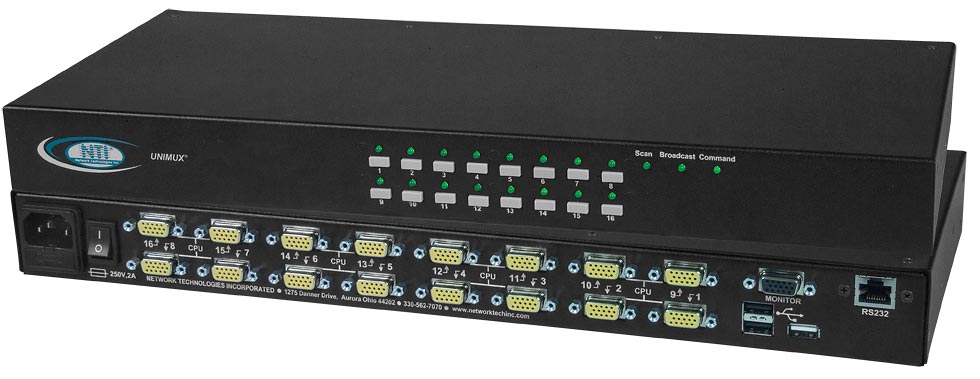

UNIMUX-USBV-16HDU (Front & Back)




Product Highlights

  • High Density Switch – 16 Ports in 1RU
Available Options
  • USB connector for USB touch screen monitor, CAC card reader, or interactive whiteboard
  • Extender port for connecting a remote user 300 feet away via CAT5.
  • Designed and Manufactured in the U.S.A.

The UNIMUX™ High Density VGA USB KVM Switch allows a user to control up to 32 USB computers with one USB keyboard, USB mouse and VGA monitor. Dedicated internal microprocessors emulate keyboard and mouse presence to each attached CPU 100% of the time so all computers boot error-free.

The UNIMUX™ High Density VGA USB KVM Switch allows a user to control up to 32 USB computers with one USB keyboard, USB mouse and VGA monitor. Dedicated internal microprocessors emulate keyboard and mouse presence to each attached CPU 100% of the time so all computers boot error-free.

  • The High Density Switch saves rack space
    • 4-, 8- and 16-port switches are 1RU in height.
    • 32-port switch is 2RU in height.
    • Rackmount kit included.
  • Features NTI's patented true autoboot USB switching – all attached computers can be booted simultaneously.
  • Compatible with USB computers (PC, SUN and MAC).
  • Crisp and clear 1920x1200 (WUXGA) video resolution.
  • Equipped with OSD, RS232, and Ethernet.
  • High quality steel construction.
  • Flash upgradeable.
  • Cabling runs are simplified with NTI's high density KVM switch cables.
  • Optional support for a USB 2.0 (low/full speed) device, in addition to keyboard and mouse, such as a touch screen monitor, interactive whiteboard, or CAC card reader.
  • Optional extender port for locating a remote user up to 300 feet (91 meters) via CAT5/5e/6 cable.
    • Only one user can be active at a time.
    • Locked out user must wait five seconds after last keystroke or mouse movement from active user.
    • For switches with the additional USB port option, the remote user does not have access to the extra USB device.
Hosts
  • Female 15-pin HD connectors.
  • Supports USB computers with VGA video.
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Any legacy PS/2 or SUN computer can be connected by using a USB-PS2-R or USB-SUN-R.
Monitor
  • Crisp and clear 1920x1200 resolution.
  • One female 15-pin HD connector.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 MHz.
Devices
  • Two female USB Type A connectors.
  • Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse®, Logitech Cordless Elite Duo keyboard/mouse, Gyration keyboard/mouse, Crystal Vision keyboard with touchpad, and IKEY combo keyboard/touchpad.
  • Keyboard and mouse are hot-pluggable.
  • Available with an optional female USB Type A connector for an additional USB 2.0 (low/full speed) device – USB touch screen monitor, CAC card reader, interactive whiteboard, or barcode scanner.
    • USB maximum data rate: 12 Mbps.
    • Supported touch screen monitors: Microtouch 3M, ELO 1529L 3000 Series, Smart Podium ID422w, Hope Industrial HIS-RL17, NEC MultiSync E222W, Industrial Electronic Devices Inc IWS-240t-G3, Zytronics CML-170, Pulse IR TSV4001/DT40, HP Compaq, Sharp Aquos Board, Advantech FPM-2150, Touch Screens Inc TWAP-1150ADP/1154ADP-USB and similar monitors that use PenMount 5000/6000/9000 driver.
    • Supported interactive whiteboards: SMART Board™ SB640
    • Supported card readers: Athena, Cherry, Gemalto, Generic USB, Dell smart card/keyboard combo, and SCM Microsystems.
Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
  • Available power cord lengths: 1/1.5/3/6 feet
  • Power Consumption
    • UNIMUX-USBV-16HDU: 15W
Dimensions
  • 4-, 8- and 16-port switches WxDxH (in):
    • 16.66x7.58x1.75 (without supplied rackmount kit)
    • 19x7.58x1.75 (with supplied rackmount kit)
  • 32-port switches WxDxH: 19x10.17x3.5 in (483x258x89 mm)
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -20 to 140°F (-30 to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS

MTBF
NTI Part # Hours NTI Part # Hours
UNIMUX-USBV-4HD 211,477 UNIMUX-USBV-16HD 133,913
UNIMUX-USBV-8HD 196,238 UNIMUX-USBV-32HD 87,413

Warranty
  • Two years
Front Panel Interface
  • Touch a button and be connected to a computer or change modes of operation.
  • LEDs indicate currently selected port and mode of operation.
RS232 Control
  • Female RJ45 connector.
  • Baud rate 1200 to 115200.
  • Commands
    • CS - connects output with specific input.
    • RO - reads what input is connected to output.
    • RU - reads size of switch.
Ethernet Control
  • Female RJ45 connector.
  • 10/100 BaseT Ethernet interface.
  • Supported protocol: Telnet.
  • Control can be done over Telnet.
Telnet
  • Commands are similar to RS232 commands.
  • The telnet server listens on port 2005 (configurable).
    • Port 2005 is intended for a software control type session.
Keyboard
  • Scan, Broadcast, or Command Modes are available from the keyboard.
  • Use the keyboard to command the switch box to select ports or configure the SCAN delay.
On Screen Display (OSD)
  • Select computers by name with the On Screen Display (OSD).
  • Use keyboard or mouse to operate the switch from menus superimposed onto the monitor.
  • Names can be up to 12 characters long.
  • Power status of each computer is displayed.
  • View usage statistics – power-on cycles and hours of usage.
  • Helps screens assists users with the OSD.
  • Modify the size and position of the OSD.
  • OSD is built into the switch-no need to install additional hardware or software.
  • OS and software-independent.
  • Security
    • Advanced security included.
    • Each user password can be up to 15 characters long, and each switch can store up to 63 users.
    • Administrator can enable or disable all security features and select which computers each user can access.
    • Once security is enabled, a user or administrator must login in order to access any of the computers connected to the switch.

Application Drawings

  • Touchscreen and CAC Reader Compatible VGA USB KVM Switch

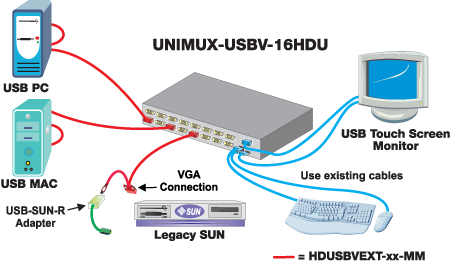

    Touchscreen and CAC Reader Compatible VGA USB KVM Switch - Application Drawing
    How to control up to 32 USB computers with one USB keyboard, USB mouse & VGA monitor

Application Notes

  • Connect a CAC reader using the optional USB peripheral port
    CAC / Smart Card readers provide an additional level of authentication to create a more secure infrastructure. To comply with Homeland Security and DoD guidelines, or for added security, connect a CAC reader to the High Density USB KVM Switch using the optional USB connector.
  • Connect a SMART Board™ Interactive Whiteboard using the optional USB connector.
    Connect a SMART Board Interactive Whiteboard to the UNIMUX High Density VGA USB KVM Switch using the optional USB connector. Simply connect the projector to the VGA Monitor input on the switch, and the SMART Board Interactive Whiteboard to the optional USB connector for an interactive touch screen experience in the classroom or collaborative work environment.
  • "I was in a tough position and NTI got me an evaluation solution out the door immediately. Their UNIMUX-USBV-16HDU and USB-C5-LC solution was used to replace a cluster of other products that didn't work. The customer service was exceptional, and their products worked where several others failed. NTI rocks!"

    Ben Poulsen
    General Communications
    Manassas, VA

High Density VGA USB KVM Switches

NTI Part # # of CPU's Rack Units Power Cord Length Price Quote Buy
UNIMUX-USBV-4HD 4 1RU $695.00
UNIMUX-USBV-8HD 8 1RU $805.00
UNIMUX-USBV-16HD 16 1RU $1,250.00
UNIMUX-USBV-32HD 32 2RU $2,075.00

High Density VGA USB KVM Switches with Extender Port for Remote User

NTI Part # # of CPU's Rack Units Power Cord Length Price Quote Buy
UNIMUX-USBV-4HDC5 4 1RU $725.00
UNIMUX-USBV-8HDC5 8 1RU $835.00
UNIMUX-USBV-16HDC5 16 1RU $1,280.00
UNIMUX-USBV-32HDC5 32 2RU $2,105.00

High Density VGA USB KVM Switches with Additional USB Connector

NTI Part # # of CPU's Rack Units Power Cord Length Price Quote Buy
UNIMUX-USBV-4HDU 4 1RU $800.00
UNIMUX-USBV-8HDU 8 1RU $1,035.00
UNIMUX-USBV-16HDU 16 1RU $1,610.00
UNIMUX-USBV-32HDU 32 2RU $2,795.00

High Density VGA USB KVM Switches with Additional USB Connector and Extender Port for Remote User

NTI Part # # of CPU's Rack Units Power Cord Length Price Quote Buy
UNIMUX-USBV-4HDUC5 4 1RU $830.00
UNIMUX-USBV-8HDUC5 8 1RU $1,065.00
UNIMUX-USBV-16HDUC5 16 1RU $1,645.00
UNIMUX-USBV-32HDUC5 32 2RU $2,825.00

USB KVM Receiver (Remote Unit)

NTI Part # Maximum Extension Dimensions WxDxH (in.) Price Quote Buy
ST-C5USBV-R-300 300 3.47x3.08x1.08 $200.00

Male 15-pin HD to Male 15-pin HD + Male USB Type A Interface Cable

NTI Part # Length Price Quote Buy
HDUSBVEXT-3-MM 3 ft $15.00
HDUSBVEXT-6-MM 6 ft $20.00
HDUSBVEXT-10-MM 10 ft $26.00
HDUSBVEXT-15-MM 15 ft $33.00

High Density USB Switches USB ONLY, NO VGA VIDEO

NTI Part # # of CPU's Rack Units Power Cord Length Price Quote Buy
UNIMUX-USB-4HD 4 1RU $540.00
UNIMUX-USB-8HD 8 1RU $615.00
UNIMUX-USB-16HD 16 1RU $1,010.00

Male 15-pin HD to Male USB Type A Interface Cable For Use with UNIMUX-USB-xHD Only

NTI Part # Length Price Quote Buy
HDUSB-3-MM 3 ft $5.00
HDUSB-6-MM 6 ft $7.00
