Rackmount 4K HDMI/DisplayPort USB KVM Drawer

HDMI/DisplayPort USB KVM Drawer provides space-saving 1RU control with 4Kx2K resolution

Also known as: 4K rackmount kvm drawer, UHD console drawer, rack mount keyboard monitor drawer, HDMI USB KVM drawers, 1RU keyboard DisplayPort LCD shelf.

Rackmount 4K HDMI/DisplayPort USB KVM Drawer

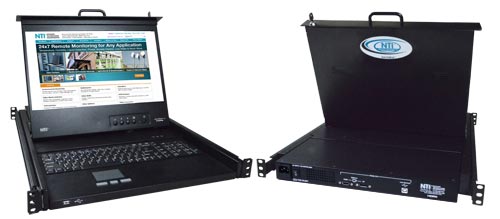

RACKMUX-4K17-N (Front & Back)

Additional Images

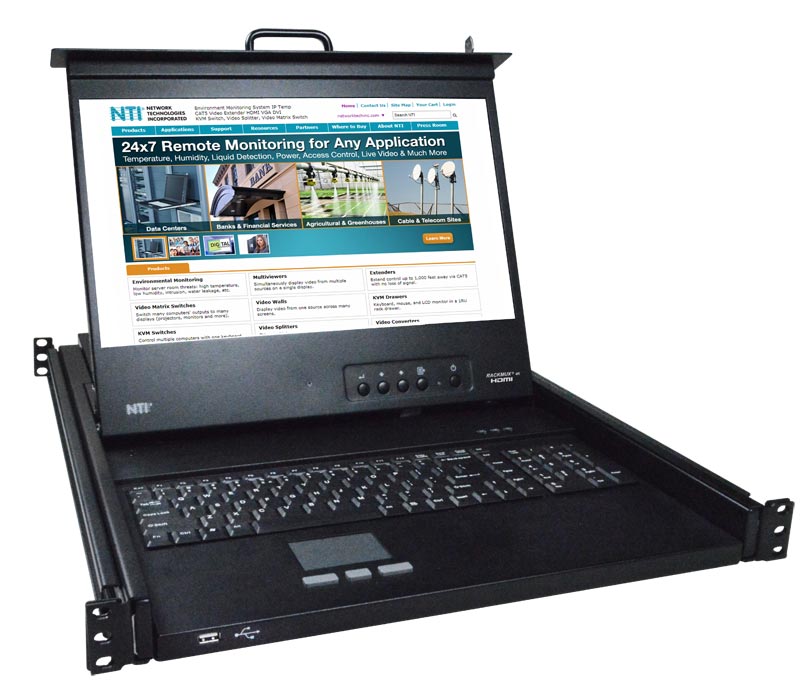

  • RACKMUX-4K17-N (front) – Rackmount 4K HDMI/DisplayPort USB KVM Drawer

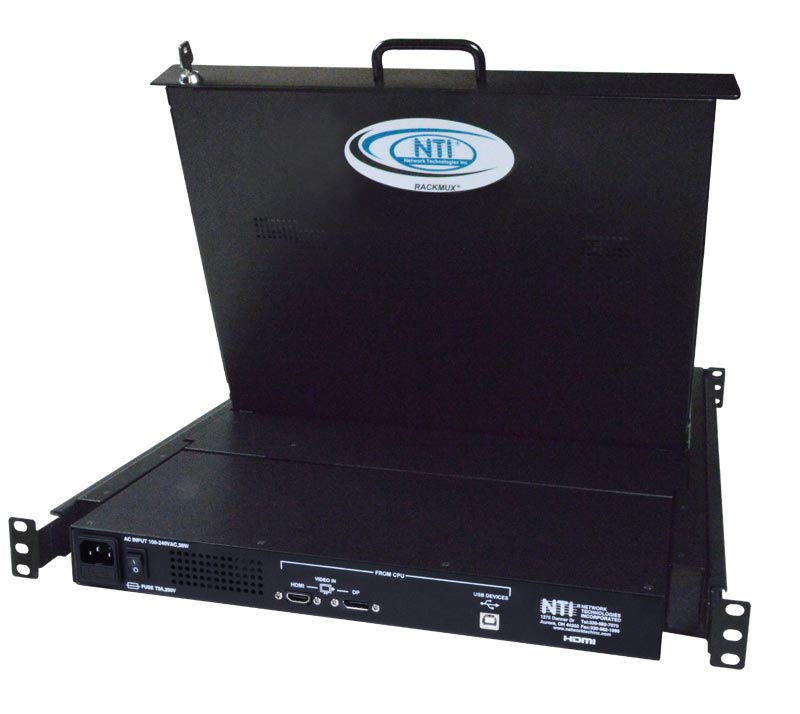

  • RACKMUX-4K17-N (back) – Rackmount 4K HDMI/DisplayPort USB KVM Drawer

Product Highlights

  • Ultra-HD 3840x2160@60Hz 4:4:4 17.3" LCD
  • HDMI 1.4, DisplayPort 1.2a, HDCP 2.2
  • Single-Person Installation

Also Available:

Rackmount 4K KVM Drawer with Integrated 4K HDMI USB KVM Switch

  • Designed and Manufactured in the U.S.A.

The RACKMUX® 4K HDMI/DisplayPort USB KVM Drawer combines a rackmount 4Kx2K LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial-strength drawer.

The RACKMUX® 4K HDMI/DisplayPort USB KVM Drawer combines a rackmount 4Kx2K LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial-strength drawer.

  • Available with forward-folding 17.3" TFT/LCD monitor.
  • Compatible with HDMI or DisplayPort USB computers.
    • HDMI connector supports resolutions up to 3840x2160@30Hz 4:4:4.
    • DisplayPort connector supports resolutions up to 3840x2160@60Hz 4:4:4.
  • HDMI 1.4, DisplayPort 1.2a, HDCP 2.2/1.4 compliant.
  • Torque-friction hinges – monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
  • Three-button touchpad mouse supports single-finger gestures.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rugged steel construction with durable powder coat finish.
  • LCD auto-shutoff in closed position.
  • Internal cable arm provides proper cable management for sliding the drawer open and closed.
  • Equipped with On Screen Display (OSD).
  • Designed to be a one-person job when installing the drawer.
  • Front panel security lock.
  • Front panel USB port to connect an external USB device, such as a flash drive.
    • Supports audio pass-through – connect USB speakers or headphones to the front-panel USB port to play the audio.
  • Available with optional mounting bracket for two-post style telco rack.
Host Interface
  • Compatible with a USB-enabled computer with HDMI or DisplayPort output.
  • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11/12.
  • One female HDMI, one female DisplayPort, and one female USB Type B connectors.
  • Use with an NTI KVM Switch to control multiple USB computers.
  • Compliant with HDMI 1.4, DisplayPort 1.2a, and HDCP 2.2/1.4 standards.
Monitor
  • Forward-folding 17.3" Active Matrix LCD flat panel display.
  • Resolution:
    • HDMI: up to 3840x2160@30Hz 4:4:4.
    • DisplayPort: up to 3840x2160@60Hz 4:4:4.
  • Tilt: up to 120°.
  • Frequency: up to 60Hz
  • OSD controls for brightness, contrast, phase, Horz- and Vert-center alignment, zoom and color adjustment.
  • Brightness: 400 nits
  • Contrast Ratio: 1000:1
Devices
  • Keyboard available in: English (US).
    • 100-key (US) with numeric keypad
  • Three button touchpad mouse.
    • Supports single-finger gestures.
  • Front panel USB 2.0 port to connect external USB devices.
    • Female USB Type A connector.
    • KVM drawer must be connected to a USB-enabled computer.
Cables
  • 6-foot (1.8-meter) HDMI male to male cable included.
  • 6-foot (1.8-meter) DisplayPort male to male cable included.
  • 6-foot (1.8-meter) USB Type A male to USB Type B male cable included.
  • 6-foot (1.8-meter) power supply cable included.
Power
  • 100 to 240 VAC at 50 or 60 Hz via IEC connector.
  • Power Consumption: 30 W
Dimensions
  • WxDxH: 19x23.9x1.75 inches. (483x607x44 millimeters)
    • Handle adds an additional 1.5" to the depth when monitor is in closed position.
  • Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years

Application Drawings

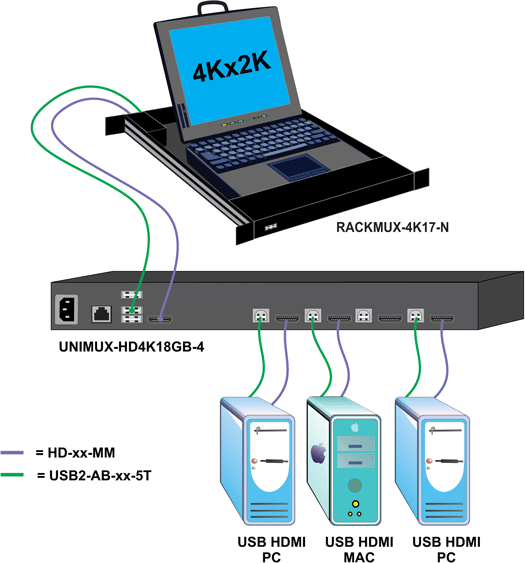

  • Rackmount 4K HDMI/DisplayPort USB KVM Drawer
