Rackmount 4K KVM Drawer with 4K HDMI USB KVM Switch

Control up to sixteen Ultra-HD 4Kx2K 30Hz HDMI USB computers

Also known as: rackmount kvm drawer with 4K HDMI USB KVM Switch, UHD console drawer, rack mount keyboard monitor drawer, 4Kx2K KVM drawers, 1RU keyboard LCD shelf

Rackmount 4K KVM Drawer with 4K HDMI USB KVM Switch

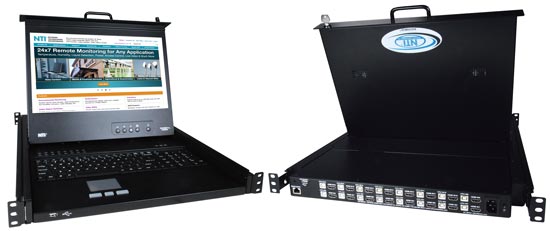

RACKMUX-4K17-N-16HD4K (Front & Back)

Product Highlights

  • Ultra-HD 3840x2160 17.3" LCD
  • Built-in 4-/8-/16-port 4K HDMI USB KVM Switch
  • Designed and Manufactured in the U.S.A.

Additional Images

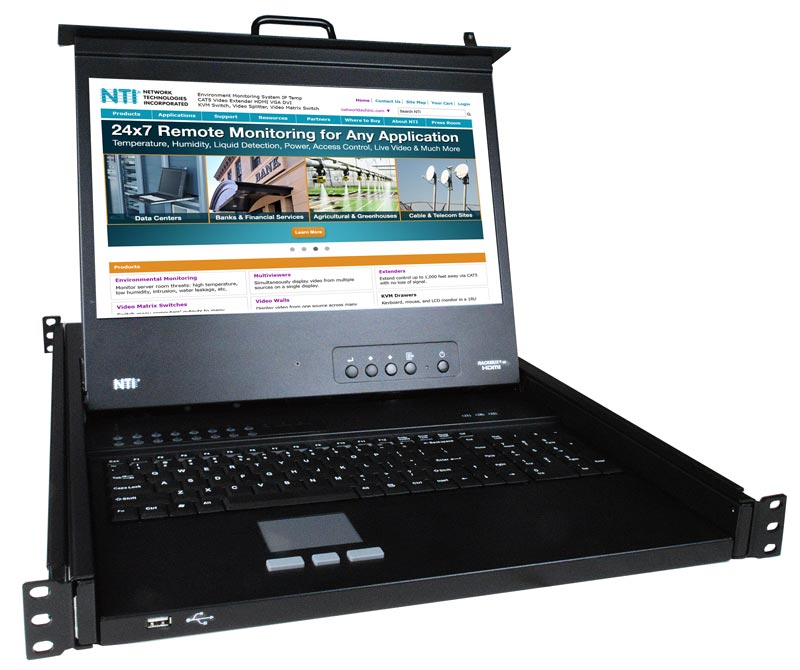

  • RACKMUX-4K17-N-16HD4K – Rackmount 4K KVM Drawer with 4K HDMI USB KVM Switch (front view)

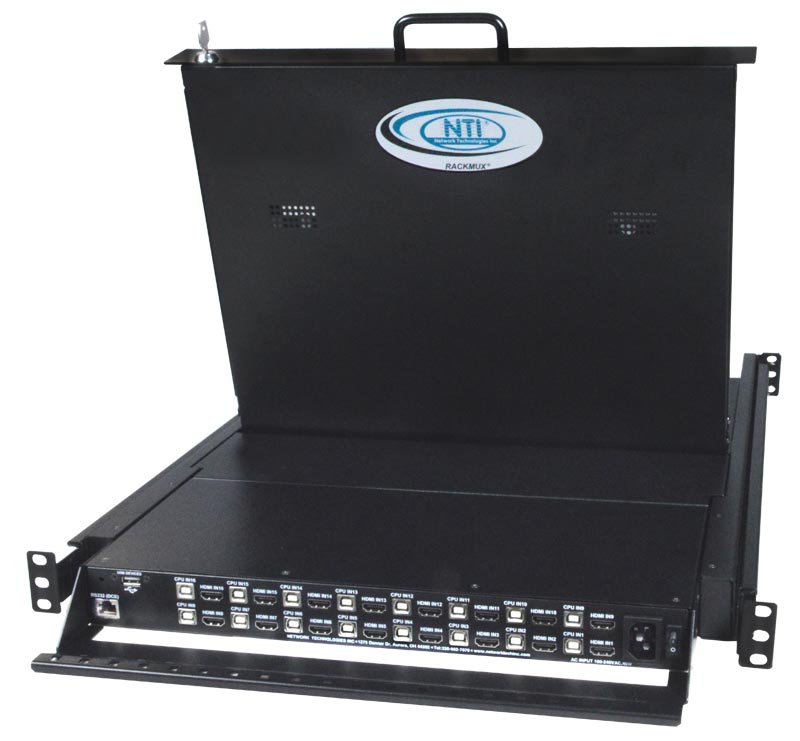

  • RACKMUX-4K17-N-16HD4K – Rackmount 4K KVM Drawer with 4K HDMI USB KVM Switch (back view with cable tray)

The RACKMUX® 4K KVM Drawer with Built-In 4K HDMI USB KVM Switch combines a rackmount 4Kx2K LCD monitor, keyboard, touchpad mouse and a 4K HDMI USB KVM Switch in a space-saving 1RU industrial strength drawer.

The RACKMUX® 4K KVM Drawer with Built-In 4K HDMI USB KVM Switch combines a rackmount 4Kx2K LCD monitor, keyboard, touchpad mouse and a 4K HDMI USB KVM Switch in a space-saving 1RU industrial strength drawer.

  • Available with forward-folding 17.3" TFT/LCD monitor.
  • Supports Ultra-HD 4Kx2K resolutions (3840x2160@30Hz)
  • Available with a 4-, 8-, or 16-port 4K HDMI USB KVM Switch.
    • Control up to 16 Ultra-HD 4Kx2K 30Hz USB computers.
  • Compatible with USB computers (PC, SUN and MAC) with HDMI outputs.
    • Use DVI-HD-xM-MM cables to connect a DVI computer.
    • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Linux, FreeBSD, and MAC OS 10/11/12/13.
  • Control the switch through the front panel buttons, keyboard commands, OSD, or RS232.
  • Torque-friction hinges - monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
  • Three-button touchpad mouse supports single-finger gestures.
  • Rugged steel construction with durable powder coat finish.
  • LCD auto-shutoff in closed position.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Designed to be a one-person job when installing the drawer.
  • Cable management tray included.
Power
  • 100 to 240 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)
  • Power consumption:
    • RACKMUX-4K17-N-4HD4K and
      RACKMUX-4K17-N-8HD4K: 35W
    • RACKMUX-4K17-N-16HD4K: 40W
Dimensions
  • Without cable management tray WxDxH: 19x23.9x1.75 inches. (483x607x44 millimeters)
  • With cable management tray WxDxH: 19x27.5x1.75 inches. (483x699x44 millimeters)
  • Handle adds an additional 1.5" to the depth when monitor is in closed position.
  • Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
MTBF
Model Hours
RACKMUX-4K17-N-4HD4K 24,570
RACKMUX-4K17-N-8HD4K 23,754
RACKMUX-4K17-N-16HD4K 22,296
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
Warranty
  • Two years

RACKMUX® Rackmount 4K KVM Drawer Specifications
UNIMUX™ 4K HDMI USB KVM Switch Specifications
  • "The RACKMUX-4K17-N-8HD4K works well for our needs. I like that it has a front USB 2.0 port and key to lock the console, along with the rugged construction and back mounting rails. Resolution is good."

    Michael L.
    Ontario Power Generation Inc
    Ontario, Canada

4K KVM Drawers with 4K HDMI USB KVM Switch

NTI Part # # of CPUs Price Quote Buy
RACKMUX-4K17-N-4HD4K 4 $3,050.00
RACKMUX-4K17-N-8HD4K 8 $3,425.00
RACKMUX-4K17-N-16HD4K 16 $4,410.00

Mounting Bracket for Two-Post Style Telco Rack

NTI Part # Description Price Quote Buy
RL-T15-TEL Mounting Bracket for Two-Post Style Telco Rack $25.00

HDMI Male-Male Cables

NTI Part # Length Price Quote Buy
HD-3-MM 3 feet $4.50
HD-6-MM 6 feet $6.00
HD-10-MM 10 feet $7.10
HD-15-MM 15 feet $10.50

DVI-D Male to HDMI-A Male Single Link Cable

NTI Part # Length Price Quote Buy
DVI-HD-1M-MM 1 meter $4.30
DVI-HD-2M-MM 2 meter $8.00
DVI-HD-3M-MM 3 meter $10.00
DVI-HD-5M-MM 5 meters $11.00

USB 2.0 A-B Cables

NTI Part # Length Price Quote Buy
USB2-AB-0-5M-5T 0.5 meters (1.64 ft) $1.50
USB2-AB-3-5T 3 feet $2.25
USB2-AB-6-5T 6 feet $3.00
USB2-AB-10-5T 10 feet $3.75
USB2-AB-15-5T 15 feet $4.75
