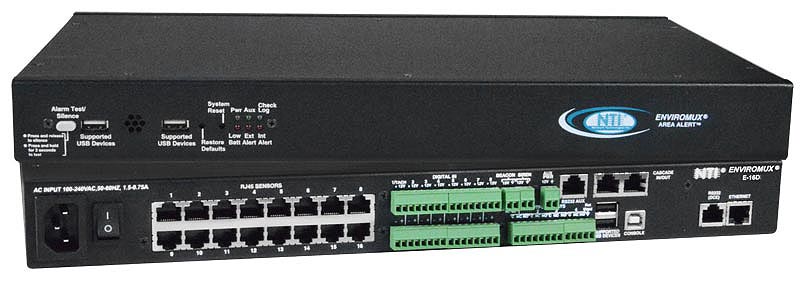

The ENVIROMUX® Enterprise Environment Monitoring System monitors critical environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor goes out of range of a configurable threshold, the system will notify you via email, LEDs, alarm beacon, siren, web page, network management (SNMP), voice phone calls (via Automatic Voice Dialer System), and SMS messages (via external USB 3G modem).
The system includes three internal sensors: temperature, humidity and power. It also supports 16 external configurable sensors, eight digital input sensors, and four output relays for control of external devices.
The ENVIROMUX® Enterprise Environment Monitoring System monitors critical environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor goes out of range of a configurable threshold, the system will notify you via email, LEDs, alarm beacon, siren, web page, network management (SNMP), voice phone calls (via Automatic Voice Dialer System), and SMS messages (via external USB 3G modem).
The system includes three internal sensors: temperature, humidity and power. It also supports 16 external configurable sensors, eight digital input sensors, and four output relays for control of external devices.
- Monitor and manage server room environmental and security conditions over IP.
- Sensors supported:
- 16 external configurable sensors
- 8 digital inputs sensitive to contact closure
- 3 internal sensors – temperature, humidity, power
- Four output relays for control of external devices.
- Relay activates upon alarm or via the user interface.
- Supports IP network video cameras for live view of any facility.
- One integrated view – see different Web cameras side-by-side with physical and environmental parameters.
- Any programmed event can trigger a snapshot from an IP camera.
- Monitor (ping) up to 64 IP network devices.
- Alerts are sent if devices are not responding
- Linux inside.
- Available with optional fiber port for connecting to a fiber optic network.
- Multi-language support – English, German, Indonesian, and Japanese.
- Create multiple alerts for any installed sensor.
- Sensor conditions (events) can be configured to trigger alerts by themselves, and/or be used in combination with other events to trigger Smart Alerts.
- Configure up to 50 events.
- Up to 20 Smart Alerts can be configured to use different event combinations to send alert messages.
- Alerts are posted in message log, which is accessible through Web user interface.
- Integrates with various Open Source monitoring packages - Nagios and MRTG.
- USB ports for connecting USB modem or for downloading log data to USB flash drive.
- Internal battery backup.
- Alerts are sent when there is a power outage and when power returns.
- Available with optional dual power for connection to two separate power sources.
- Available with optional 48VDC or 24VDC power.
- Optional intuitive graphical software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX-2D/5D/16D, ENVIROMUX-SEMS-16(U), IPDU-S4/8 units and all connected sensors.

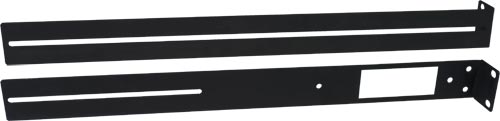

- 1RU rack mount case is standard.
- The ENVIROMUX system can be mounted so that the sensor connectors are facing the front or back of the rack.
- Security: HTTPS, SSHv2, SSLv3, IP Filtering, LDAPv3, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights.
- Use in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area that needs to be monitored.
1. Power Port
- 100 to 240 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)
- Power consumption: 35W
- Connection for Earth Ground.
- Fuse protection.
- Optional 48VDC power (not shown).
- Accepts 36~72VDC (48VDC nominal).
- Optional 24VDC power (not shown).
- Accepts 20~32VDC (24VDC nominal).
- Optional dual power (not shown).
- Available on AC, 48VDC, and 24VDC models.
- If the first power source fails, the unit will automatically, without interruption, switch over to the second power source before switching to the battery backup.
2. RJ45 Sensor Ports
- Sixteen RJ45 modular jacks for connecting NTI temperature, humidity, temperature/humidity, liquid detection, smoke detection, glass break, vibration and motion sensors.

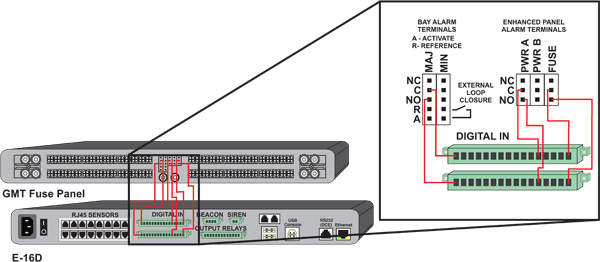

3. Digital Inputs
- Eight screw terminals pairs for connecting dry contact devices.
- Input voltage: 0VDC to +25VDC.
- Provides +12VDC, 50 mA.
- Fuse protection.
4. Digital Outputs
- Four screw terminals pairs.
- Potential-free relay switch contacts.
- Normally open / normally closed connection points.
- Maximum switching load: 0.5A at 100VAC, 1A at 30VDC.
5. Beacon Port
- One screw terminal pair.
- Provides +12VDC, 180 mA to supply an alarm beacon.
- Fuse protection
6. Siren Port
- One screw terminal pair.
- Provides +12VDC, 180 mA to supply a siren.
- Fuse protection
7. AUX Power
- One screw terminal pair.
- Provides +12 VDC, 500 mA.
8. USB Device Ports
- Four female USB Type A connectors for connecting USB modem or for downloading log data to USB flash drive.
- Two USB ports on front panel and 2 on back panel.
9. USB Console Port
- One female USB Type B connector for connecting a PC for serial terminal access.
10. RS232 (DCS) Port
- One female RJ45 serial port for terminal access.
11. Ethernet Port
- One 10/100 Base-T Ethernet port with RJ45 Ethernet connector.
Fiber Port
- One duplex LC fiber optic port for connecting to a fiber optic network.
Protocols
- HTTP/HTTPS, SNMP V1/V2c/V3, SMTP, TCP/IP, Syslog, SNTP, DHCP, SSHv2, SSLv3, LDAPv3, AES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour, IPV6, WAP 2.0
- Compatible with any SNMP management software.
- Operates and configures via HTTP/HTTPS web page, Telnet, SSH, or USB/RJ45 serial interface.
- An IP address can be assigned to the ENVIROMUX-16D automatically by a DHCP server.

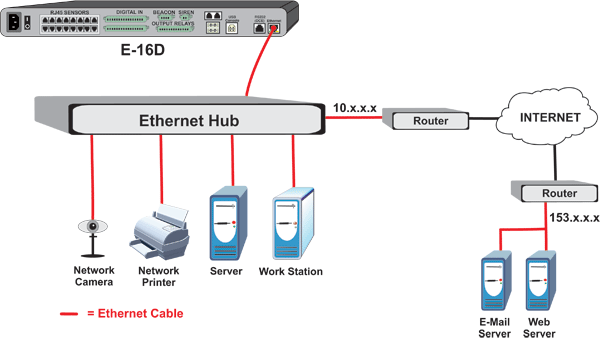

- Generates SNMP traps, email alerts, syslog messages, and SMS messages (via USB 3G modem).
- Alerts are posted in event log, which is accessible through Web user interface.
- Email alerts can be sent to 17 addresses.
- Users can configure the schedule for when they will be alerted, as well as customize the e-mail subject line for each sensor alert.
- SNMP traps have unique OID's (Object Identifiers) for each sensor.
Internal Temperature Sensor
- Applications from 32 to 104°F (0 to 40°C).
- Accurate to within ±1.35°F (±0.75°C).
Internal Humidity Sensor
- Applications from 20% to 80% relative humidity at temperatures between 32 to 104°F (0 to 40°C).
- Accurate to within ±5% relative humidity.
Internal Power Sensor
- Measures mains voltage: 0 to 255 VAC
- Measures battery voltage: 0 to 20 VDC
- Measures voltage on 24VDC models: 20 to 32VDC
- Measures voltage on 48VDC models: 36 to 72VDC
- Alerts are sent when there is a power outage and when power returns.
Back-up Battery
- Rechargeable sealed lead-acid battery.
- Provides back-up for one hour.

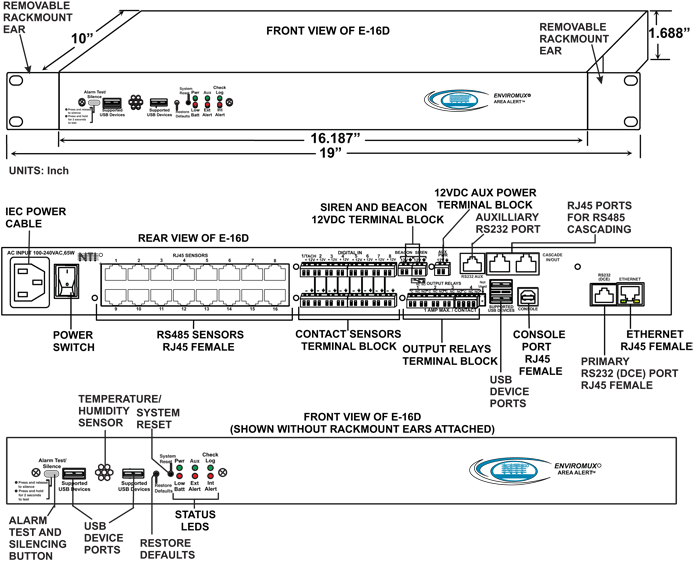

Dimensions
- WxDxH:
- Without supplied rackmount kit : 16.19x10.01x1.75
- With supplied rackmount kit: 19x10.01x1.75
Weight
- ENVIROMUX-16D: 9.5 lb (4.31 kg).
Environmental
- Operating temperature: 32 to 100°F (0 to 38°C).
- Storage temperature: -22 to 140°F (-30 to 60°C).
- Operating /Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
- CE, RoHS
Warranty
- Two years
Web Interface (view product demo)
- Configuration can be done over the Internet/LAN via Web page.
- Supports Internet Explorer 6.0 and higher, Firefox 1.5 and higher, Netscape 9, Google Chrome, Safari 1.3 and higher for MAC, and Safari 3.0 and higher for PC.
- Multi-language support – English, German, Indonesian, and Japanese.
- Configure sensor thresholds, alarm methods, formats of alerts, and system data log.
- View/edit sensors' current values, thresholds and alert statuses.
- All sensors connected to the ENVIROMUX-16D can be viewed on one summary page.
- User configurable settings allow sensors to return to normal status when alert condition clears, without manually acknowledging/dismissing the alert.
- View/edit entries stored in the system logs.
- Event log records system events such as alerts, user login/logout, failed email messages, etc.
- Data log records samples of sensor readings. User specified sampling time period.
- Both the event log and the data log store up to 1,000 entries.
- The log can be downloaded as a tab-delimited plain text file.
- Configure IP information (address, subnet mask, default gateway, DNS, etc.), user administrative settings, and data logging settings.
- Up to 16 users can access the web page at one time.
- Permissions, schedule and alert methods are configurable for each user.
- Configure up to 50 sensor conditions (events).
- Configure up to 20 Smart Alerts to use different event combinations to send alert messages.
Front Panel Interface
- LEDs indicate the following:
- "INT ALERT" – internal sensor goes out of range of a configurable threshold.
- "EXT ALERT" – external sensor goes out of range of a configurable threshold.
- "LOW BAT" – backup battery is low.
- "CHECK LOG" – message is posted to the log.
- "AUX" – indicates Auxiliary device is powered.
- "PWR" – indicates system is powered.
- Alarm Test/Silence button – use to test or silence the alarm connected to the siren terminals
- Restore Defaults button – use to manually restore the ENVIROMUX-16D back to factory settings.
- System Reset button – use to manually reboot/restart the firmware for the ENVIROMUX-16D.
Serial Interface / Telnet / SSH
- Configure, control and monitor over the text-based menu system accessible via USB console port, RJ45 serial port, Telnet, and SSH.
- Serial baud rate: 9,600 to 115,200bps.
- Data format: 1 start bit, 8 data bits, no parity, 1 stop bit.

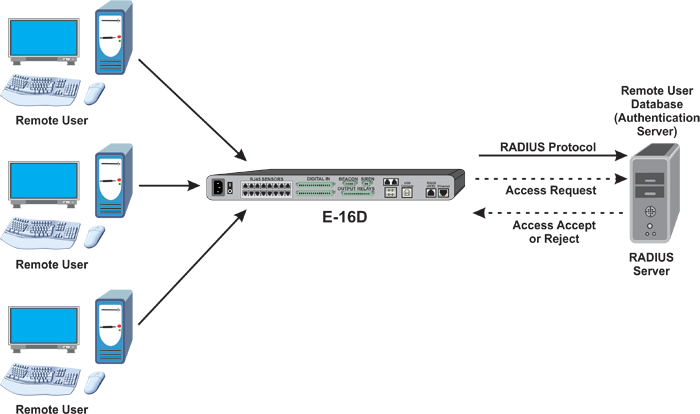

- Access is controlled via username/password.
- System stores encrypted login information.
- Two user levels: user and administrator.
Network Operation
- SNMP support, allowing integration into network management platforms.
- Updating the system firmware.
Open Source Monitoring Integration
Optional Management Software
- Optional intuitive graphical software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX-2D/5D/16D, ENVIROMUX-SEMS-16(U), IPDU-S4/8 units and all connected sensors.
Mobile Summary Page
- View summary page on mobile devices – smartphones, tablets, etc.
- Summary page lists all connected sensors' current values and alert statuses.
Optional Android App for Tablets
- Optional Android App provides an easy-to-use interface for monitoring and displaying sensor statuses from one ENVIROMUX-5D/16D.
Sensors & Accessories - Sold Separately
Environmental Sensors
- Temperature
- Temperature/Humidity
- Temperature/Wide Range Humidity
- Humidity
- Precision Humidity
- Precision Temperature/Humidity
- Wall/Duct Mount Temperature/Humidity Sensor
- Pipe Temperature Sensor
- RTD Temperature Transmitters
- RTD Temperature Sensors
- Low-Cost Liquid Detection Sensor, Rope-Style
- Liquid Detection Sensor, Plenum Rope-Style
- Chemical Detection Sensor
- Under Carpet Leak Detector
- Liquid Detection - Tape-Style
- Liquid Detection, Spot Detector
- Compact-Size Liquid Detection, Spot Detector
- Spot Liquid Detector with Built-In Visual & Audible Alarm
- Ultrasonic Level Transmitter
- Smoke Detection Sensor – 120VAC Wire-In with Battery Backup
- Smoke Detection Sensor - CE Approved
- Smoke Detection Sensor - UL Approved
- Smoke Detection Sensor - UL Approved, TAA Compliant
- Carbon Monoxide - CO
- Carbon Dioxide - CO2
- Gas Detector – Methane, Butane, Propane
- Air Flow Sensor
- Air Velocity Sensor
- Outdoor Temperature Sensor
- Wind Speed Sensor/Anemometer
- Wind Direction Sensor
- Barometric Pressure Transmitter
- 4-20 mA Sensor Converter
- 5VDC Sensor Converter
- Sensor Extension Cables
- Self-Adhesive Clips for Liquid/Chemical Sensor Rope
Motion/Intrusion/Vibration Sensors
- Door Contact Sensor
- Rugged Door Contact Sensors
- Shock/Vibration
- Fence Vibration Sensor
- Glass Break
- Infrared Motion
- Outdoor Infrared Motion
- High-Mount Outdoor Infrared Motion Sensor
- Ceiling Mount Motion
- Digital Keypad
- Vandal Resistant and Weatherproof Access Control Digital Keypads
- RFID Access Control Keypads
- RFID EM Cards/Keyfobs
- Electric Strike
- Key Station
- Emergency / Panic
- Light Intensity Sensor
- 4-20mA Sensor Converter
- Sensor Extension Cables
Alert/Communications Accessories
- 7-inch Tablet with ENVIROMUX® Android App
- Automatic Voice Dialer System
- USB 3G Modem
- Industrial USB GSM Modem
- IP Surveillance Cameras
- Rugged Miniature Piezo Alarm, 103 dB
- Miniature Piezo Buzzer, PCB Mount, 95 dB
- Piezo Siren, 108 dB
- Motor Siren, 150 dB
- Fire Alarm Bell, 90 dB
- Adjustable Siren, 114 dB
- Alarm Beacon – Small
- Alarm Beacon – Large
- Sensor Extension Cables
Power Relays & Sensors
- AC Voltage Detector
- DC Voltage Detector
- AC Power Monitor with Relay
- AC Dual Voltage Monitor
- 3-Phase Power Transducers, Balanced or Unbalanced
- 3-Phase AC Voltage Transducer
- 4-20 mA Sensor Converter
- Sensor Extension Cables

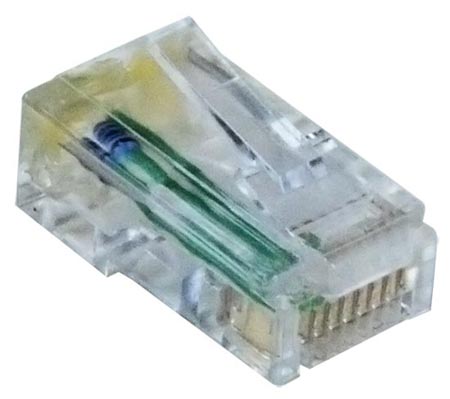

Sensor Accessories
Data Sheet:
- Enterprise Server Environment Monitoring System
- Environmental Sensors
- Alert & Communication Accessories
- Motion/Intrusion/Vibration Sensors
- Power Relays & Sensors
- Wireless Sensors & Accessories
- Sensor Accessories
User Manual:
Product Demo:
Firmware:
Knowledge Base:

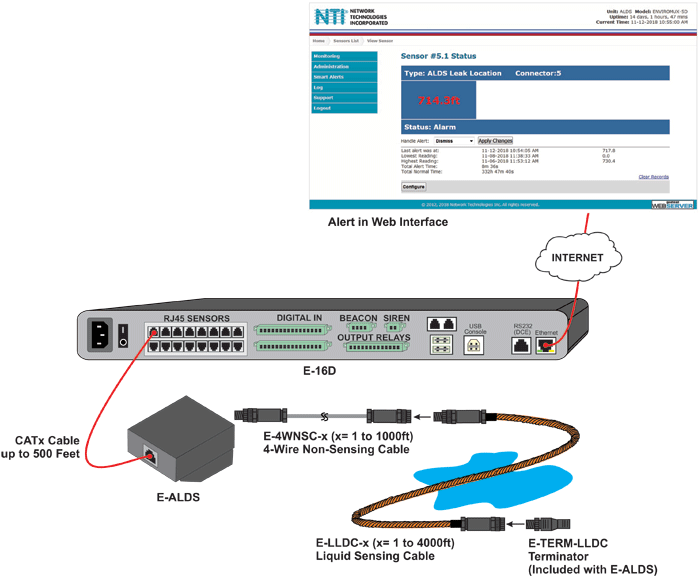

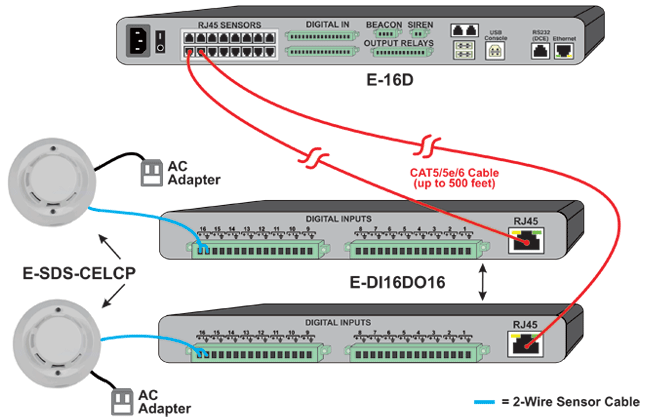

Application Drawings
-
Enterprise Server Environment Monitoring System

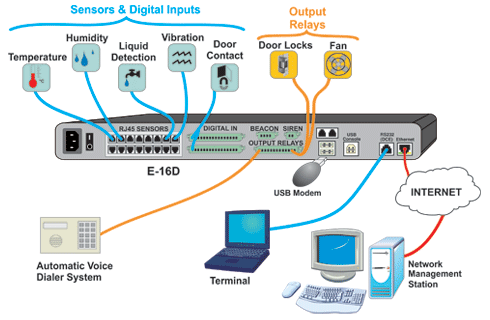

How to monitor and manage server room environmental and security conditions over IP. Provides early warnings before critical events turn into disaster.
Application Notes
-
Use Smart Alerts to Inhibit Motion Sensor When Entering a Room Using a Keypad

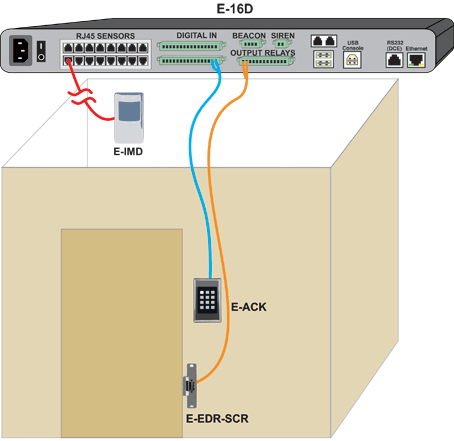

Events and Smart Alerts can be set-up to enable a configuration that will allow the disabling of motion sensors during the time an operator enters an enclosed area via a keypad, but will re-arm the motion sensors when he exits the area and re-enters the keypad code. This requires the keypad output relay, which will be programmed in "Start/Stop" mode instead of timed delay, to be connected as a digital input to the ENVIROMUX and an output relay from the ENVIROMUX that will activate the door strike when the correct code is entered.
For details on how to set up this configuration, refer to the Knowledge Base entry.
-
Use a Single USB 3G Modem to Send Out SMS Alerts from Multiple ENVIROMUX Units.

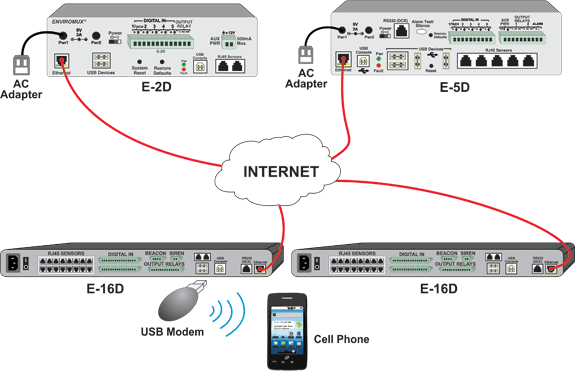

Set up the ENVIROMUX-3GU on one ENVIROMUX unit. Access the web interface of the ENVIROMUX equipped with the modem, and click on Administration > Enterprise, and expand SMS Relay. Select the checkbox for "Enable Server"; this only applies to the ENVIROMUX unit with the modem. Access the other ENVIROMUX units' web interface (no modem) and navigate to SMS Relay. Select the checkbox for "Use remote unit to send SMS" and in the textbox, "Remote unit IP Address," type in the IP address of the ENVIROMUX unit with the ENVIROMUX-3GU. Configure any desired SMS alert settings on all ENVIROMUX units. Any SMS alert messages triggered on the other ENVIROMUX units will be sent through the Ethernet to the main SMS alert unit, which will then use the ENVIROMUX-3GU to send the messages. This reduces the number of ENVIROMUX-3GU units needed to support SMS alerts when using multiple ENVIROMUX units. This SMS relay function is not restricted to identical units and can be integrated with any number and type of ENVIROMUX-2D/5D/16D units.
-
"Just wanted to let you know that we recently purchased the NTI ENVIROMUX-16D for our Server Room. The interface is easy to navigate, and setup for multiple devices was quick. Monitoring is a real nice feature - having all the data on a single page is awesome. The automatic voice dialer accessory enhances our IT department crises strategy. The ENVIROMUX-16D is feature rich with a wide selection of accessories. After researching several vendors for Environment Monitoring, this System was a great fit in our setting."
Tim JohnsonPreferred Family HealthKirksville, MO
