Environment Monitoring System IP Surveillance Cameras

Alert & Communication Accessories compatible with ENVIROMUX® E-2D, E-5D and
E-16D

IP Surveillance Cameras

High-Definition Wireless/Wired Day/Night Pan/Tilt IP Camera

High-Definition Wireless/Wired Day/Night Pan/Tilt IP Camera
E-IPCAM-WHNPT
  • View the camera from the ENVIROMUX web interface, camera web interface, included software, or with a compatible cell phone.
    • Control the camera using the camera web interface accessible from the ENVIROMUX web interface.
  • With the E-2D/5D/16D, a triggered snapshot can be forwarded in alert e-mails or stored locally on a connected flash drive.
    • A snapshot can be triggered by any programmed event (motion detection, door open/close, glass break, smoke, liquid detection, etc.)
  • Two-way audio with built-in microphone and built-in speakers. 3.5mm stereo audio port.
  • IR night vision supports up to 32.8 ft (10 m).
  • CMOS sensor
  • Video codecs/Resolution:
    • H.264: 1280x720 up to 30 fps
    • MJPEG: 640x352 up to 30 fps
  • Lens: 3.6 mm (0.14 in).
  • Supports wireless 802.11b/g/n.
  • Pan and tilt:
    • Pan: 355°
      • Speed range: 5 to 30°/sec
    • Tilt: 90°
      • Speed range: 5 to 50°/sec
  • Built-in motion detection
    • Auto-patrol preset positions: 4.
    • Camera sends snapshots via email when motion is detected.
  • Power:
    • Input: 100 to 240 VAC at 50 or 60 Hz, 0.2 A
    • Output: 5 VDC, 1A external power adapter
  • 10/100 Mbps Ethernet port for wired connections.
  • Requires Windows XP/7/8/10 or MAC OS 10.
  • Operating temperature: 14 to 122°F (-10 to 50°C).
  • Operating humidity: 0 to 95% non-condensing RH.
  • Dimensions WxDxH: 3.43x4.25x3.9 in (87x108x99 mm).
  • Compatible with the E-2D/5D/16D.
  • Mounting base and mounting hardware included.
  • Regulatory approvals: CE, RoHS.
NTI Part # Price Quote Buy
E-IPCAM-WHNPT $125.00

Wireless/Wired Day/Night IP Camera

Wireless Day/Night IP Camera
E-IPCAM-WN
  • View the camera from the ENVIROMUX web interface, camera web interface, included software, or with a compatible cell phone.
    • Control the camera using the camera web interface accessible from the ENVIROMUX web interface.
  • With the E-2D/5D/16D, a triggered snapshot can be forwarded in alert e-mails or stored locally on a connected flash drive.
    • A snapshot can be triggered by any programmed event (motion detection, door open/close, glass break, smoke, liquid detection, etc.)
  • Two-way Audio with built-in microphone and audio speaker.
  • IR-LED for night vision up to 15 ft (4.6 m) and provides minimum 1.0 Lux for low light environments.
  • 1/5" CMOS sensor with 4x digital zoom.
  • Video streaming: H.264, MJPEG.
  • Frame rate: 30 fps at 640x480, 320x240, and 160x120.
  • Lens: 3.15mm (0.12 in).
  • Supports wireless 802.11n/g.
  • UDP/TCP/HTTP/HTTPS protocols selectable.
  • WEP/WPA/WPA2-PSK wireless security available.
  • Power: 5VDC.
  • 10/100 Mbps Ethernet port for wired connections.
  • Requires Windows XP, Vista, 7, or 8 for operation.
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Operating humidity: 20 to 80% non-condensing RH.
  • Dimensions WxDxH:
    • Including bracket and stand: 2.60x2.56x4.96 in (66x65x126 mm).
    • Camera only: 1.06x2.36x3.78 in (27x60x96 mm).
  • Compatible with E-2D/5D/16D.
    • E-2D: only compatible with Rev C units (features two power inputs).
  • Regulatory approvals: CE, FCC, RoHS, C-Tick.

NTI Part # Price Quote Buy
E-IPCAM-WN $180.00

High-Definition Wireless/Wired Day/Night Outdoor IP Camera

High-Definition Wireless/Wired Day/Night Outdoor IP Camera
E-IPCAM-WHNO
  • View the camera from the ENVIROMUX web interface, camera web interface, included software, or with a compatible cell phone.
    • Control the camera using the camera web interface accessible from the ENVIROMUX web interface.
  • With the E-2D/5D/16D, a triggered snapshot can be forwarded in alert emails or stored locally on a connected flash drive.
    • A snapshot can be triggered by any programmed event (motion detection, door open/close, glass break, smoke, liquid detection, etc.)
  • IR night vision supports up to 49.2 ft (15 m).
  • 1/2.7" Progressive Scan CMOS sensor.
  • Video streaming: H.264, MJPEG.
  • Frame rate: 15fps at 1920x1080 (1080p) resolution.
  • Lens: 3.6 mm (0.14 in).
  • Supports wireless 802.11b/g/n.
  • Built-in motion detection.
    • Auto-patrol preset positions: 4.
    • Camera sends snapshots via email when motion is detected.
  • Power:
    • Input: 100 to 240 VAC at 50 or 60 Hz
    • Output: 5 VDC, 2A external power adapter
  • 10/100 Mbps Ethernet port for wired connections.
  • Requires Windows XP/7/8/10 or MAC OS 10.
  • System compatibility: ONVIF
  • Operating temperature: 14 to 122°F (-10 to 50°C).
  • Operating humidity: 0 to 95% non-condensing RH.
  • Dimensions WxDxH: 2.56x5.83x2.48 in (65x148x63 mm).
  • Waterproof rating: IP66
  • Compatible with the E-2D/5D/16D.
  • Mounting hardware included.
  • Regulatory approvals: CE, RoHS.

NTI Part # Price Quote Buy
E-IPCAM-WHNO $150.00

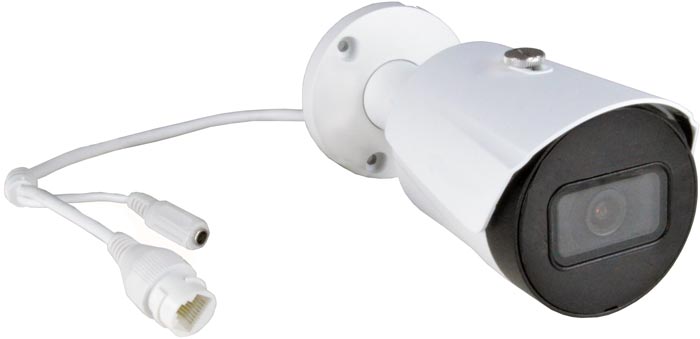

High-Definition Wired Day/Night Outdoor IP Dome Camera with Power over Ethernet (PoE)

High-Definition Wired Day/Night Outdoor IP Dome Camera with Power over Ethernet (PoE)
E-IPCAM-DHNPO-P
  • View the camera from the ENVIROMUX web interface, camera web interface, included software, or with a compatible cell phone.
    • Control the camera using the camera web interface accessible from the ENVIROMUX web interface.
  • With the E-2D/5D/16D, a triggered snapshot can be forwarded in alert e-mails or stored locally on a connected flash drive.
    • A snapshot can be triggered by any programmed event (motion detection, door open/close, glass break, smoke, liquid detection, etc.)
  • 1/2.8" Progressive Scan CMOS
  • Video Compression: H.264/MJPEG/H.264+
    • Supports simultaneous dual streaming
  • Audio Compression: G.711/G.722.1/G.726/MP2L2
  • 2MP resolution @ 30 fps
    • Supports 1920x1080, 1280×960, 1280×720
  • Night Vision IR Range: 98 feet ( 30 m)
  • Lens: F2.0; 2.8 mm fixed
    • Angle of View: 106° (2.8 mm)
  • Power:
    • Input: 100 to 240 VAC at 50 or 60 Hz
    • Output: 12 VDC, 1A external power adapter (included)
    • Max consumption: 5 W
    • Power over Ethernet standards supported: IEEE 802.3af
  • 10/100 Mbps Ethernet port for wired connections.
  • Micro SD memory card slot (up to 128G GB)
  • System compatibility: ONVIF, PSIA, CGI, ISAPI
  • Operating temperature: -22 to 140°F (-30 to 60°C).
  • Dimensions WxH: 4.4x3.2" (111x82 mm)
  • Waterproof rating: IP67
  • Compatible with E-2D/5D/16D.
  • Regulatory approvals: FCC, UL, RoHS

NTI Part # Price Quote Buy
E-IPCAM-DHNPO-P $330.00
