4K DisplayPort/HDMI PCIe Graphics Card, 6-Output

Display 4Kx2K UHD video across six DisplayPort/HDMI monitors. Create video walls up to 3x2.

Also known as: 6 monitor video card, multi-display PCI-e, six output UHD graphic card, 3x2 4K video wall.

4K DisplayPort/HDMI PCIe Graphics Card, 6-Output
PCIE3-4K18GB-6VW

Product Highlights

  • 6-output PCIe 3.0 x16 graphics card
  • 4GB of GDDR5
  • Create video walls up to 3x2

The PCIE3-4K18GB-6VW 4K DisplayPort/HDMI PCIe Graphics Card drives six monitors from a single slot on a PC with resolutions up to Ultra-HD 4Kx2K 60Hz 4:4:4 per output. It enables the user to create video walls up to 3x2. Additionally, it can be used as a video splitter.

The PCIE3-4K18GB-6VW 4K DisplayPort/HDMI PCIe Graphics Card drives six monitors from a single slot on a PC with resolutions up to Ultra-HD 4Kx2K 60Hz 4:4:4 per output. It enables the user to create video walls up to 3x2. Additionally, it can be used as a video splitter.

  • Drive six displays from one single-slot PCIe 3.0 x16 graphics card.
    • Six active mini DisplayPort outputs provide maximum AMD Eyefinity technology support.
    • Independent resolutions, refresh rates, color controls, and video overlays.
    • Each monitor can display a different program/browser – just drag and drop to the monitors.
  • Supports resolutions up to Ultra-HD 4Kx2K 4:4:4 per output.
    • Max resolution using DisplayPort monitors: 3840x2160@60Hz
    • Max resolution using HDMI monitors: 3840x2160 and 4096x2160 @30Hz
  • Create video wall configurations with displays in landscape or portrait orientations.
    • Landscape (horizontal) orientation:
      • AMD Eyefinity: 1x1, 1x2, 1x3,1x5, 2x1, 2x2, 3x1, 3x2, 4x1, 5x1
      • Microsoft Windows: 1x1, 1x2, 1x3, 1x4, 1x5, 1x6, 2x1, 2x2, 2x3, 3x1, 3x2, 4x1, 5x1, 6x1
    • Portrait (vertical) orientation:
      • AMD Eyefinity: 1x1, 1x2, 1x3, 1x5, 2x1, 2x2, 3x1, 5x1
      • Microsoft Windows: 1x1, 1x2, 1x3, 1x4, 1x5, 1x6, 2x1, 2x2, 2x3, 3x1, 3x2, 4x1, 5x1, 6x1
  • Versatile bezel compensation ability accommodates any screen frame width, and allows for accurate display of the image.
  • Clone content to show the same information on all displays.
  • 4GB of GDDR5 memory provides smooth video playback and graphics performance.
  • Compliant with DisplayPort v1.2 specifications.
  • HDCP compliant.
  • Any HDMI display can be connected by using the DPMM-HD4K18GBF adapter cable (not included).
  • Ideal for a wide range of digital signage applications, including: retail stores, restaurants, corporate lobbies, entertainment venues, trade shows, airports, and more.
  • GPU: AMD Radeon R7 360
  • GPU Core Clock: 900Mhz
  • Memory: 4GB GDDR5
  • Bus Type: PCIe 3.0 x16
  • Video Output: 6 female mini DisplayPort 1.2
  • Maximum Resolution (per monitor):
    • Using DisplayPort monitors: 3840x2160@60Hz
    • Using HDMI monitors: 3840x2160 and 4096x2160 @30Hz
  • Video Bandwidth: 21.6 Gbps
  • HDCP compliant
  • Supports LPCM, AC-3, AAC, Dolby TrueHD and DTS Master Audio formats.
    • DDM audio.
    • 7.1-channel audio bitstreaming via HDMI or DisplayPort.
  • APIs Supported: DirectX 12, OpenGL 4.5, Vulkan, Mantle, Open CL 1.2
  • Power Consumption: 100W max
System Requirements
  • PCIe-based PC with one X16 lane graphics slot available on the motherboard.
  • System Power Supply Required: 500W
  • Operating Systems Supported:
    • Windows 10 64-bit
    • Windows 8.1 64-bit
    • Windows 7 64-bit
    • Linux x86 32/64-bit
    • RHEL x86 32/64-bit
    • Ubuntu x86 32/64-bit
Dimensions
  • WxDxH (in): 4.98x8.67x0.76 (126x220x19 mm).
  • Form Factor: ATX
Cables
  • Use DPM-DP-xx-MM Male Mini DisplayPort to Male DisplayPort Adapter Cable to connect a DisplayPort monitor to the graphics card.
    • Supports 4K@60Hz to 6 feet and 4k@30Hz to 15 feet.
  • Use DPM-HD-6-MM Male Mini DisplayPort to Male HDMI Adapter Cable to connect an HDMI monitor to the graphics card.
    • Supports resolutions to 4K@30Hz.
  • Use DPMM-HD4K18GBF 4K Male Mini DisplayPort to Female HDMI Adapter Cable to connect an HDMI monitor to the graphics card.
    • Compatible with NTI's HD-xx-MM HDMI male-to-male cables.
    • Supports resolutions to 4K@30Hz.
  • Cables not included.
Regulatory Approvals
  • RoHS
  • TAA compliant
Warranty
  • Two years

Display Mode Examples

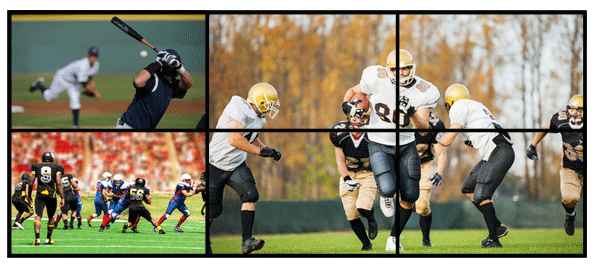

  • 3x2 Video Wall
    PCIE3-4K18GB-6VW - 3x2 Video Wall Configuration

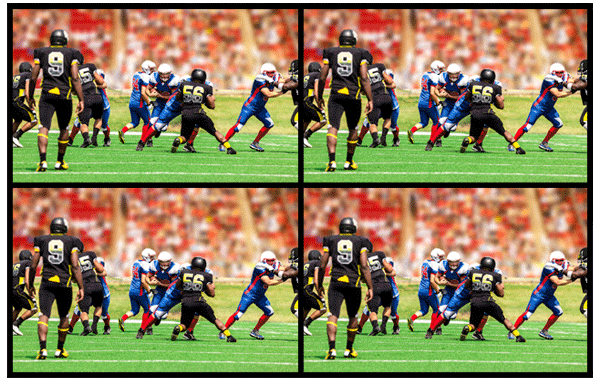

  • Clone Mode
    PCIE3-4K18GB-6VW - Clone Wall Configuration
  • 4x1 Video Wall
    PCIE3-4K18GB-6VW - 4x1 Video Wall Configuration

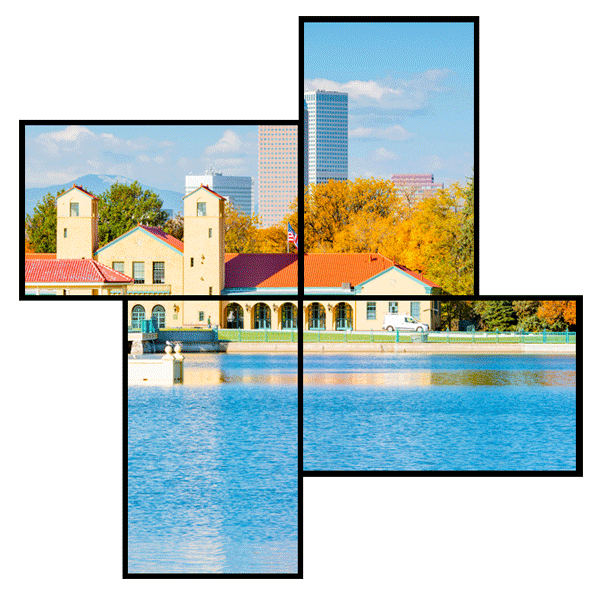

  • Custom Video Wall Design
    PCIE3-4K18GB-6VW - Custom Video Wall Design

4K DisplayPort/HDMI PCIe Graphics Card, 6-Output

NTI Part # Description Price Quote Buy
PCIE3-4K18GB-6VW 4K DisplayPort/HDMI PCIe Graphics Card, 6-Output $595.00

Mini DisplayPort to DisplayPort Adapter Cable, Male to Male, 4K

NTI Part # Length Max Resolution Price Quote Buy
DPM-DP-3-MM 3 feet 4K@60Hz $6.15
DPM-DP-6-MM 6 feet 4K@60Hz $7.15
DPM-DP-10-MM 10 feet 4K@30Hz $8.40
DPM-DP-15-MM 15 feet 4K@30Hz $10.90

Mini DisplayPort to HDMI Adapter Cable, Male to Male, 4K

NTI Part # Length Max Resolution Price Quote Buy
DPM-HD-6-MM 6 feet 4K@30Hz $12.60

4K Mini DisplayPort Male to HDMI Female Adapter Cable

NTI Part # Description Max Resolution Price Quote Buy
DPMM-HD4K18GBF 4K Mini DisplayPort Male to HDMI Female Adapter Cable 4K@30Hz $23.50

HDMI Male-Male Cables

NTI Part # Length Max Resolution Price Quote Buy
HD-3-MM 3 feet 4K@30Hz $4.50
HD-6-MM 6 feet 4K@30Hz $6.00
HD-10-MM 10 feet 4K@30Hz $7.10
HD-15-MM 15 feet 4K@30Hz $10.50
