Low-Cost HDMI Over Gigabit IP Network Range Extender

Extend an HDMI Plasma/LCD display up to 330 feet away from the source using gigabit Ethernet. Use with cascaded network switches to extend up to 1,000 feet.

Also known as: HDMI over IP network extender, media center extender CAT6, remote digital HDMI monitor display, HDMI transmitter/receiver, HDMI range extender, high definition 1080p extender, extend HDTV video, gigabit HDMI extender

ST-IPHD-LC

Product Highlights

  • Extend 1080p video up to 330 ft via One CATx Cable
  • Use with cascaded network switches to extend to 1,000 feet
  • Supports Point-to-Point, Point-to-Many, & Many-to-Many connections
  • Digital Signage

The XTENDEX® Low-Cost HDMI Over Gigabit IP Extender multicasts digital video and audio signals to one or more receivers up to 330 feet away over a 1000Base-T Gigabit Network connected with CAT5e/6 cable.

Each Low-Cost HDMI Over Gigabit IP Extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via CATx or a Point-to-Many connection via a network switch. Support for multiple transmitters requires a managed network switch.


Note: ST-IPHD-LC models are NOT compatible with ST-IPHD-LC-V4 models due to different chipsets being used.

The XTENDEX® Low-Cost HDMI Over Gigabit IP Extender multicasts digital video and audio signals to one or more receivers up to 330 feet away over a 1000Base-T Gigabit Network connected with CAT5e/6 cable.

Each Low-Cost HDMI Over Gigabit IP Extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via CATx or a Point-to-Many connection via a network switch. Support for multiple transmitters requires a managed network switch.

  • Supports HDTV resolutions to 1080p.
  • Ideal solution for digital signage applications.
  • Broadcast real-time HDMI video and audio signals to multiple display locations with a managed or unmanaged (also known as non-managed) network switch.
  • Transmits an HDMI signal over one CAT5e/6 cable.
  • Plug-and-Play installation allows receivers to find the transmitters automatically on the same subnet. (Network configuration may be required for managed network switch.)

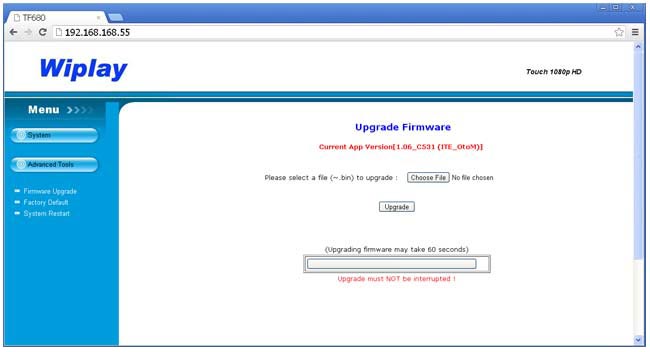

  • Web interface for changing IP addresses, firmware updates and resetting units to factory default settings.
  • Easily expandable. Add remote units as you add monitors.
  • Inexpensive CAT5e/6 cable replaces bulky video cables.
  • Supports 10/100/1000 Ethernet connection.
  • Built in default EDID table.
  • HDCP compliant.
  • Support for multiple transmitters requires a managed network switch with VLAN/IGMP support. Standard LAN switches can only support one transmitter.
    • The managed switch must support port based IEEE 802.1Q VLAN, IGMP, and permit duplicate IP addresses across the VLAN domains.
    • Each VLAN acts as a separate HDMI Over IP Channel on the network.
    • Number of local and remote units that can be used is dependent on the backplane bandwidth of the switch.
    • Cascade managed network switches up to 3 levels, allowing the farthest display to be located up to 1,000 feet away from the source device. Each receiver can be located up to 330 feet away.
  • For a point-to-many connection, a standalone network with an unmanaged network switch, hub, or router can be used instead of a managed network switch.
    • It is not recommended to use any other network devices on this standalone network as it may cause a degradation in performance.
  • Uses M-JPEG technology to process image compression on a fixed bandwidth.
    • Note: at high resolutions, characters on PCs get noticeably fuzzy due to image compression and decompression process.
  • Local and remote units must be in the same LAN. The units do not support WAN connections.

Note: ST-IPHD-LC models are NOT compatible with ST-IPHD-LC-V4 models due to different chipsets being used.
Local Unit
  • One female HDMI-A port for source connection.
  • One female 1000Mbps RJ45 port for sending high definition video/audio signals.
  • Supported input resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
  • Max. bit rate: 80 Mbps.
  • Codec: MJPEG
  • Encoding delay: 33 mS at 30fps latency
Remote Unit
  • One female HDMI-A port for HDTV or computer display.
  • One female 1000Mbps RJ45 port for receiving high definition video/audio signals.
  • Supported output resolutions: 480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080p@50/60Hz
  • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
Power
  • Local and remote unit: 110 or 240 VAC at 50 or 60 Hz via AC adapter.
    • Power Cord Plug
      • ST-IPHD-LC: US NEMA 1-15P
      • ST-IPHD-LCEU: Europlug CEE 7/16
      • ST-IPHD-LCUK: UK BS1363
      • ST-IPHD-LCAU: AS/NZS 3112
      • ST-IPHD-LCUNV: US NEMA 1-15P with country-specific universal power plug adapter
  • Power consumption: 3W each.
Max Distance
  • 330 feet (100 meters) over CAT5e/6 cable.
Cables
  • Use HD-xx-MM cable to connect an HDMI source or display (not included).
  • Use DVI-HD-xx-MM cable to connect a DVI source or display (not included).
  • Use CAT5e/6 solid or stranded straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Environmental
  • Operating and storage temperature: 14 to 140°F (-10 to 60°C).
  • Operating and storage relative humidity: 20 to 90% non-condensing RH.
Dimensions
  • WxDxH: 2.28x4.33x1.02 in (58x110x26 mm)
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years.
Compatible NTI Products
  • Combine NTI's video splitters and extenders for complex applications
    • 4K DVI/HDMI Video Splitter (VOPEX-DVI4K-2)
      • Supports HDTV resolutions to 1080p when used with the extenders.
    • HDMI Quad Screen Splitter/Multiviewer
      (SPLITMUX-HD-4RT)
    • DVI-D to HDMI Single Link Interface Cable
      (DVI-HD-xx-MM)
  • HDMI 2.0 EDID Emulator (HD4K-EDID-EMLTR)

Application Drawings

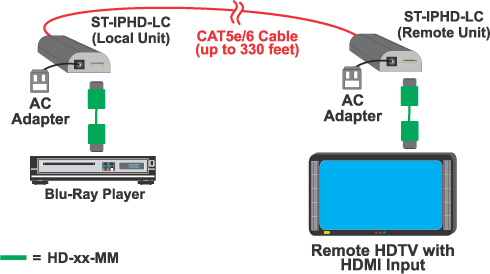

  • Point-to-Point Connection
    How to Configure Point-to-Point Connection
    How to Configure Point-to-Point Connection
  • Point-to-Many Connections Using an Unmanaged Network Switch
    Point-to-Many Connections Using an Unmanaged Network Switch
    For a point-to-many connection, a standalone network with an unmanaged network switch, hub, or router can be used instead of a managed network switch. It is not recommended to use any other network devices on this standalone network as it may cause a degradation in performance.
  • Many-to-Many Connections Using a Managed Network Switch

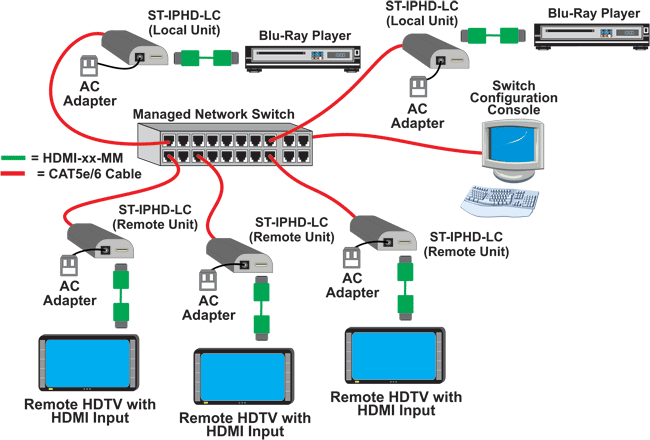

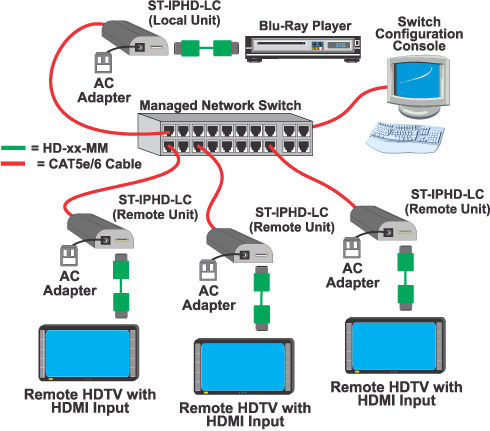

    Many-to-Many Connections Using a Managed Network Switch
    Support for multiple transmitters requires a Managed network switch with VLAN/IGMP support.
    NOTE: The many-to-many configuration is not compatible with Cisco 2960 switch.

Application Notes

  • How to Access the Web Interface to Change Unit's IP Address
    How to Access the Web Interface to Change Unit's IP Address

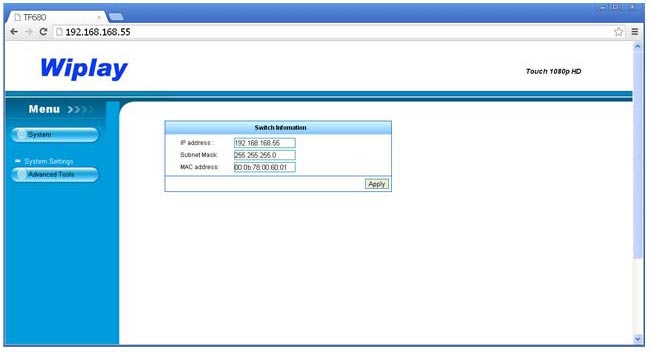

    After connecting the unit directly to the computer using CATx cable, temporarily set your computer's IP address to 192.168.168.xx to match the unit. Open a web browser and input the unit's factory default IP address: 192.168.168.55 (local) or 192.168.168.56 (remote), into the address bar. Change the IP addresses of the units to match your network's subnet. Revert your computer's network configurations to its original settings. The web interface can now be accessed through the newly assigned IP addresses.
  • "MCV has been buying KVM solutions from NTI for many years. They are a trusted and valued vendor. In one situation we ran into an installation in which a KVM was not the right fit. NTI did have a solution that fit what we needed to do - an HDMI over IP Extender. We bought and installed the ST-IPHD-LC in 2013, and on November 1st 2018 it finally failed. MCV is a power plant; we run 24/7/365, so that extender ran every day and every night for 5 plus years without issue. When it failed, we bought two more. It is simple to use and very cost effective. Not only would we buy it again, we did buy it again."

    Brandon F
    Midland Cogeneration Venture
    Midland, MI
  • "I take care of physical security and electronic surveillance for our corporation. At each building I have at least two computers sitting in wiring closets that send camera feeds to TV monitors in different offices using your ST-IPHD-LC HDMI extenders. I love those!!! I just did an upgrade to the system that if they have a mouse at the office end they can manipulate their camera views."

    Terry E
    Warsaw Community Schools
    Warsaw, IN
  • "I discovered NTI's ST-IPHD-LC LC HDMI extender by accident when a super important CEO's HDMI extension went bad. Since we never purchased from NTI before, my boss was worried that the unit would fail or be incompatible with the existing setup. But it didn't. Not only that, it outperformed the other vendor's unit in that application! Ever since then, we have been purchasing frequently from NTI. Whenever I can get a product from NTI as opposed to elsewhere, I do."

    John R
    Xetra Networks
    San Diego, CA
  • "We use the ST-IPHD-LC extenders for digital signage. We set up our PC running the information being broadcasted in a server closet and broadcast to multiple TVs within our customer's facilities. The extenders work very well."

    Matt L
    ACF Technologies
    Asheville, NC

Low-Cost HDMI Over Gigabit IP Extender – Transmitter & Receiver Set

NTI Part # Power Cord Plug Price Quote Buy
ST-IPHD-LC US NEMA 1-15P $135.00
ST-IPHD-LCEU Europlug CEE 7/16 $155.00
ST-IPHD-LCUK UK BS1363 $160.00
ST-IPHD-LCAU AS/NZS 3112 $155.00
ST-IPHD-LCUNV US NEMA 1-15P with country-specific universal power plug adapter $145.00

Low-Cost HDMI Over Gigabit IP Extender – Receiver Only

NTI Part # Power Cord Plug Price Quote Buy
ST-IPHD-R-LC US NEMA 1-15P $75.00
ST-IPHD-R-LCEU Europlug CEE 7/16 $85.00
ST-IPHD-R-LCUK UK BS1363 $87.00
ST-IPHD-R-LCAU AS/NZS 3112 $85.00
ST-IPHD-R-LCUNV US NEMA 1-15P with country-specific universal power plug adapter $80.00

HDMI Male-Male Cable

NTI Part # Length Price Quote Buy
HD-3-MM 3 feet $4.15
HD-6-MM 6 feet $5.35
HD-10-MM 10 feet $5.75
HD-15-MM 15 feet $9.50

DVI-D Male to HDMI-A Male Single Link Cable

NTI Part # Length Price Quote Buy
DVI-HD-1M-MM 1 meter $4.30
DVI-HD-2M-MM 2 meter $8.00
DVI-HD-3M-MM 3 meter $10.00
DVI-HD-5M-MM 5 meter $11.00
Note: ST-IPHD-LC models are NOT compatible with ST-IPHD-LC-V4 models due to different chipsets being used.
