Rackmount SUN USB KVM Console Drawer 1RU

1RU KVM drawer with SUN USB keyboard provides convenient control. Rack mountable by one person.

Also known as: SUN USB KVM Drawer, SUN console drawer, rackmount SUN USB KVM shelf, 1RU rack mount SUN USB keyboard monitor mouse drawer, 17" folding monitor

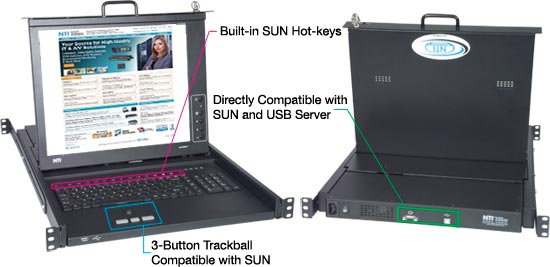

Rack Mount LCD Monitor Keyboard Drawer with SUN USB keyboard and 3-button trackball fits in 1RU of rack space.

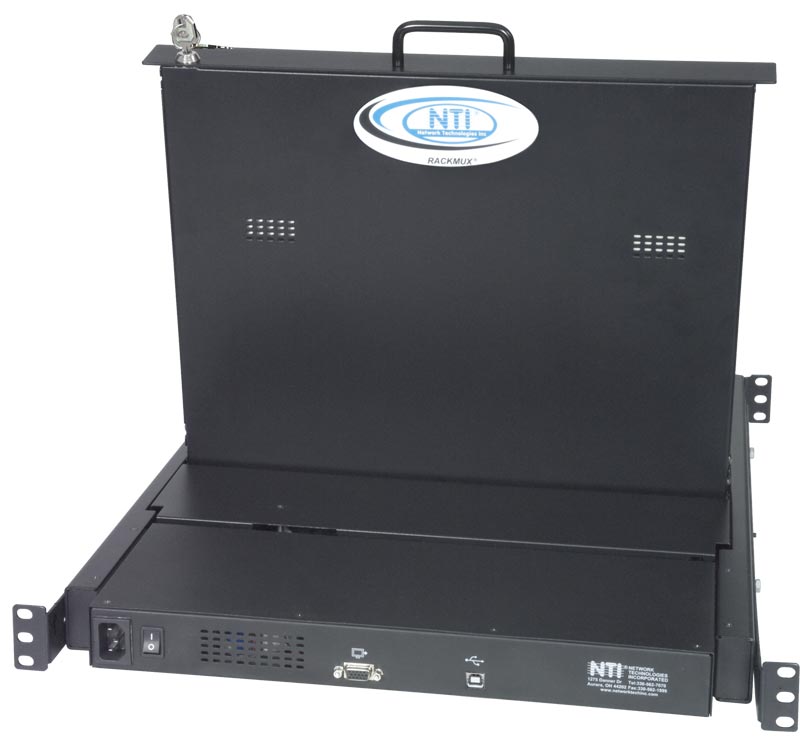

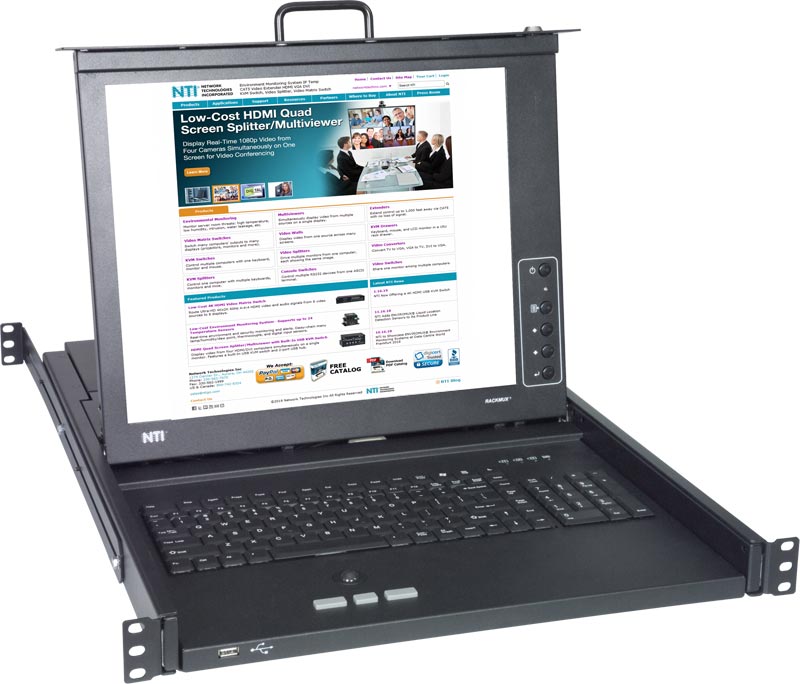

RACKMUX-VS17-NT (Front & Back)

Product Highlights

  • Single-Person Installation
  • Designed and Manufactured in the U.S.A.

The RACKMUX® SUN USB KVM Drawer combines a rackmount LCD monitor, SUN USB keyboard, and trackball mouse in a space-saving 1RU industrial strength drawer.

The RACKMUX® SUN USB KVM Drawer combines a rackmount LCD monitor, SUN USB keyboard, and trackball mouse in a space-saving 1RU industrial strength drawer.

  • Forward-folding 17" (432 mm) Active Matrix LCD flat panel VGA monitor.
    • Tilt LCD up and back to adjust to any comfortable viewing angle to 120°.
    • Optional sunlight readable monitor available.
  • Supports SUN-compatible 1152x900 resolution.
  • Torque-friction hinges-monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard.
    • Available with 17-key numeric keypad or large wrist-rest.
    • Designed to be a one-person job when installing the drawer.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Available with optional mounting bracket for two-post style telco rack.
  • Rugged steel construction with durable powder coat finish.
  • LCD auto-shutoff in closed position.
  • Internal cable arm provides proper cable management for sliding the drawer open and closed.
  • Equipped with On Screen Display (OSD).
  • Front panel security lock.
  • Front panel USB port to connect an external USB device, such as a flash drive.
Host Interface
  • Compatible with USB-enabled SUN, Windows, Linux, Apple, IBM, and HP computers.
  • One female 15-pin HD and one female USB Type B connectors.
Monitor
  • Forward-folding 17" (432 mm) Active Matrix LCD flat panel VGA monitor.
  • 1280x1024 video resolution.
    • Supports SUN-compatible 1152x900 resolution.
  • Tilt: up to 120°
  • Sunlight readable monitor available (RACKMUX-VS17-TS, RACKMUX-VS17-NTS)
  • Frequency:
    • RACKMUX-VS17-T, RACKMUX-VS17-NT:
      • Horzontal: 31 to 80 KHz
      • Vertical: 56 to 76 Hz.
    • RACKMUX-VS17-TS, RACKMUX-VS17-NTS:
      • Horzontal: 53 to 79 KHz
      • Vertical: 50 to 75 Hz.
  • Brightness:
    • RACKMUX-VS17-T, RACKMUX-VS17-NT: 300 nits
    • RACKMUX-VS17-TS, RACKMUX-VS17-NTS: 500 nits indoors, 1100 nits outdoors
  • Contrast Ratio::
    • RACKMUX-VS17-T, RACKMUX-VS17-NT: 500:1
    • RACKMUX-VS17-TS, RACKMUX-VS17-NTS: 800:1
  • Supports DDC1 and DDC2B protocols.
  • OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
Devices
  • Keyboard available in: English(US).
    • RACKMUX-VS17-T: 97-key (US) SUN-compatible keyboard with wrist-pad.
    • RACKMUX-VS17-NT: 114-key (US) SUN compatible keyboard with numeric keypad.
  • Supports SUN keys including STOP, CUT, PASTE, COMPOSE, COPY, HELP, OPEN, UNDO, and PROPS.
  • Three button trackball mouse.
  • Front panel USB 1.1 port to connect external USB devices.
    • Female USB Type A connector.
Cables
  • 6-foot (1.8-meter) 15-pin HD VGA male to male cable included.
  • 6-foot (1.8-meter) USB Type A male to USB Type B male cable included.
  • 6-foot (1.8-meter) power supply cable included.
Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
  • Power Consumption: 30 W
  • Maximum Inrush Current: 30A
MTBF
  • RACKMUX-VS17-T: 40,530 hrs.
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
Dimensions
  • WxDxH: 19x23.9x1.75 Inches. (483x607x44 millimeters)
  • Weight: 26 lbs. (12 kg)
  • Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Application Drawings

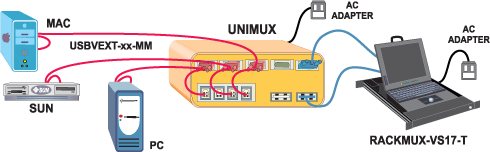

  • 20" 1RU Rackmount USB + PS/2 KVM Drawer, 1600x1200 resolution
    Rackmount SUN USB KVM Console Drawer 1RU

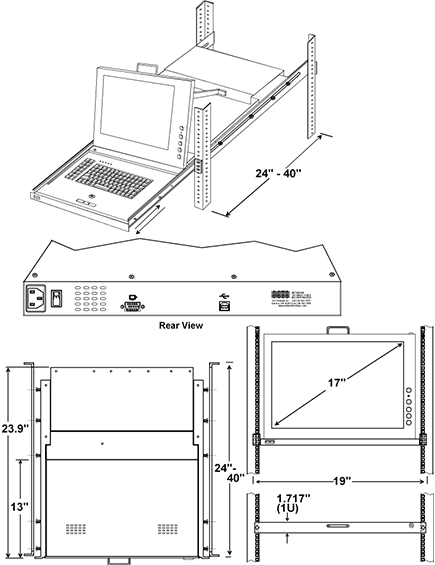

CAD Drawings

  • Maximum Tilt Angle Diagram
    Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers
    Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers
  • RACKMUX-VS17
    SUN USB KVM Drawer with SUN USB Keyboard

Keyboard Layouts

  • RACKMUX-VS17-T(S)
    Rackmount SUN USB KVM Console Drawer 1RU
    Rackmount SUN USB KVM Console Drawer 1RU
  • RACKMUX-VS17-NT(S)
    Rackmount SUN USB KVM Console Drawer 1RU with Numeric Keypad
    Rackmount SUN USB KVM Console Drawer 1RU with Numeric Keypad

SUN USB KVM Drawers with VGA Monitor

NTI Part # Supported Features Screen Size Keyboard Language Power Cord Length Price Quote Buy
RACKMUX-VS17-T Trackball mouse 17 in. English (US) $1,740.00
RACKMUX-VS17-NT Trackball mouse, Numeric keypad 17 in. English (US) $1,770.00
RACKMUX-VS17-TS Trackball mouse, Sunlight Readable monitor 17 in. English (US) $2,320.00
RACKMUX-VS17-NTS Trackball mouse, Numeric keypad, Sunlight Readable monitor 17 in. English (US) $2,350.00

Mounting Bracket for two-post style tele rack

NTI Part # Description Price Quote Buy
RL-T15-TEL Mounting Bracket for two-post style tele rack $25.00
