USB KVM Matrix Switch

How to let up to eight users control 32 USB-enabled PC, SUN and MAC computers

Also known as: Industrial USB KVM Matrix Switch, multiple users control many USB PC SUN MAC Computers, rackmount USB KVM matrix switch.

UNIMUX-4X16-U

Product Highlights

  • Up To Eight Users Control 32 USB-enabled PC, SUN and MAC Computers
  • Designed and Manufactured in the U.S.A.

Additional Images

  • UNIMUX-4X16-U - Let up to eight users control 32 USB-enabled PC, SUN and MAC computers
  • UNIMUX-ST-2X8-U-DT - Desktop USB Matrix KVM Switch

The UNIMUX™ USB KVM Matrix switch allows up to eight users to individually command or simultaneously share up to 32 USB computers. Access USB-enabled PC, SUN, and MAC computers using USB keyboards and mice, and VGA multiscan monitors.

USB host computers and USB devices can be hot-plugged or removed at any time. Allows any USB device (keyboard and/or mouse) to control any attached USB host computer. International keyboard layouts are supported in auto-detection mode, or can be manually selected via the On Screen Display (OSD) menu.

The UNIMUX™ USB KVM Matrix switch allows up to eight users to individually command or simultaneously share up to 32 USB computers. Access USB-enabled PC, SUN, and MAC computers using USB keyboards and mice, and VGA multiscan monitors.

USB host computers and USB devices can be hot-plugged or removed at any time. Allows any USB device (keyboard and/or mouse) to control any attached USB host computer. International keyboard layouts are supported in auto-detection mode, or can be manually selected via the On Screen Display (OSD) menu.

  • Equipped with OSD, Liquid Crystal Display, and RS232.
  • Rackmount is standard on all UNIMUX-nXm-U models. The smaller models are also available in a desktop case.
  • Dedicated microprocessors prevent computers from locking up, ensuring reliable control.
  • Fully compliant with USB standards (1.0, 1.1).

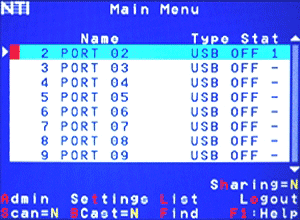

  • The advanced OSD user interface with password security makes the UNIMUX USB KVM Matrix Switch simple and reliable to use in Enterprise data centers.
  • Computers can be shared or used exclusively.
  • Crestron® compatible.
  • Optional stereo audio support using an Audio Matrix Add-On Switch (not included).
    • Supported USB KVM Matrix Switches (UNIMUX-nXm-UA) feature a male DB9 connector for connecting the Audio Matrix Add-On Switch.
Hosts
  • Eight female 15-pin HD and eight female USB Type B connectors.
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Supports PCs with USB-enabled OS (Windows 98/ME/2000/XP, Windows Server 2003, Linux) and USB ports.
  • Supports PCs with USB-enabled BIOS (legacy USB support) and USB ports.
  • Supports SUN Blade 100, SUN Blade 1000, SUN Fire™ 240 and SUN Ray.
  • Supports MAC G4, G5 and Xserve.
  • Supports MAC soft (keyboard) power-on.
  • Any legacy PS/2 or SUN computer can be connected by using a USB-PS2-R or USB-SUN-R adapter.
Monitor
  • Crisp and clear 1900x1200 resolution.
  • Two Female 15-pin HD connectors.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 MHz.
Cables
  • Interface cables between your computers and the switch are required for proper operation. Use USBVEXT-xx-MM and standard interface cables to connect switches to computers.
  • Cables not included.
Environmental
  • Operating temperature: 32°F to 100°F (0°C to 38°C)
  • Storage temperature: -20°F to 140°F (-30°C to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Devices
  • Two sets of female USB Type A connectors for keyboards and mice.
  • Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse®, Logitech Cordless Elite Duo keyboard and mouse, Gyration keyboard/mouse, Crystal Vision keyboard with touchpad, and iKey DI-5K USB.
  • Keyboard and mouse are hot-pluggable.
  • USB MAC and SUN startup keys are supported on all platforms of input devices.
  • Keystrokes are translated across platforms.
Power
MTBF
  • 58,644 hrs
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years
Hosts
  • Sixteen female 15-pin HD and sixteen female USB Type B connectors.
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Supports PCs with USB-enabled OS (Windows 98/ME/2000/XP, Windows Server 2003, Linux) and USB ports.
  • Supports PCs with USB-enabled BIOS (legacy USB support) and USB ports.
  • Supports SUN Blade 100, SUN Blade 1000, SUN Fire™ 240 and SUN Ray.
  • Supports MAC G4, G5 and Xserve.
  • Supports MAC soft (keyboard) power-on.
  • Any legacy PS/2 or SUN computer can be connected by using a USB-PS2-R or USB-SUN-R adapter.
Monitor
  • Crisp and clear 1900x1200 resolution.
  • Two Female 15-pin HD connectors.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 MHz.
Cables
  • Interface cables between your computers and the switch are required for proper operation. Use USBVEXT-xx-MM and standard interface cables to connect switches to computers.
  • Cables not included.
Environmental
  • Operating temperature: 32°F to 100°F (0°C to 38°C)
  • Storage temperature: -20°F to 140°F (-30°C to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Devices
  • Two sets of female USB Type A connectors for keyboards and mice.
  • Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse®, Logitech Cordless Elite Duo keyboard and mouse, Gyration keyboard/mouse, Crystal Vision keyboard with touchpad, and iKey DI-5K USB.
  • Keyboard and mouse are hot-pluggable.
  • USB MAC and SUN startup keys are supported on all platforms of input devices.
  • Keystrokes are translated across platforms.
Power
MTBF
  • 54,742 hrs
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years
Hosts
  • Thirty-two female 15-pin HD and thirty-two female USB Type B connectors.
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Supports PCs with USB-enabled OS (Windows 98/ME/2000/XP, Windows Server 2003, Linux) and USB ports.
  • Supports PCs with USB-enabled BIOS (legacy USB support) and USB ports.
  • Supports SUN Blade 100, SUN Blade 1000, SUN Fire™ 240 and SUN Ray.
  • Supports MAC G4, G5 and Xserve.
  • Supports MAC soft (keyboard) power-on.
  • Any legacy PS/2 or SUN computer can be connected by using a USB-PS2-R or USB-SUN-R adapter.
Monitor
  • Crisp and clear 1900x1200 resolution.
  • Two Female 15-pin HD connectors.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 MHz.
Cables
  • Interface cables between your computers and the switch are required for proper operation. Use USBVEXT-xx-MM and standard interface cables to connect switches to computers.
  • Cables not included.
Environmental
  • Operating temperature: 32°F to 100°F (0°C to 38°C)
  • Storage temperature: -20°F to 140°F (-30°C to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Devices
  • Two sets of female USB Type A connectors for keyboards and mice.
  • Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse®, Logitech Cordless Elite Duo keyboard and mouse, Gyration keyboard/mouse, Crystal Vision keyboard with touchpad, and iKey DI-5K USB.
  • Keyboard and mouse are hot-pluggable.
  • USB MAC and SUN startup keys are supported on all platforms of input devices.
  • Keystrokes are translated across platforms.
Power
MTBF
  • 42,634 hrs
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years
