DVI/HDMI Video Switch with Audio

Share one DVI-D/HDMI monitor among multiple video sources.

Also known as: DVI Video switch, Digital DVI video only switcher, HDTV switch, DVI-D monitor switch, HDMI/DVI Video Switch, HDMI switch

DVI/HDMI Video Switch with Audio

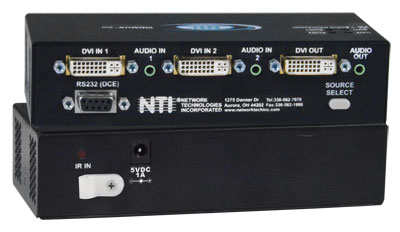

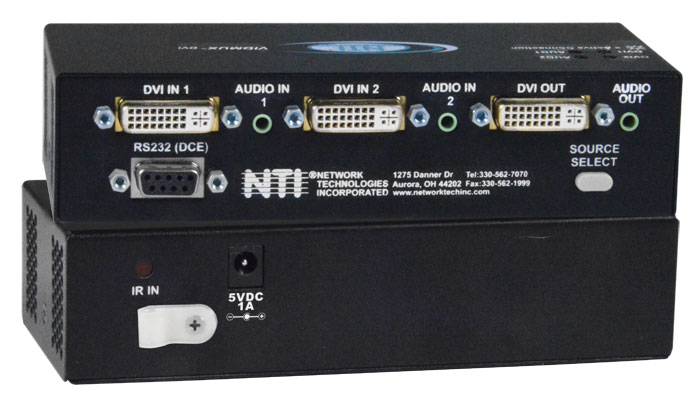

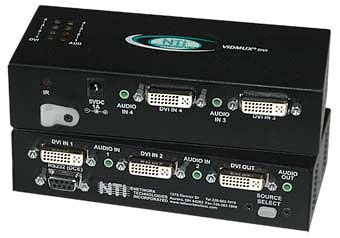

VIDMUX® SE-DVI-4ARS (Front & Back)

Available Options

  • DVI + Audio
  • DVI + Audio + RS232

Additional Images

  • SE-DVI-4A - 4-port DVI Switch with Audio
  • SE-DVI-8ARS - 8-port DVI Switch with Audio and RS232

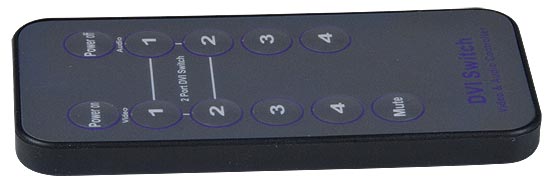

  • Included IR remote control for SE-DVI-2A(RS)

The VIDMUX® DVI/HDMI video/audio switch enables one DVI/HDMI display and speakers to be switched between up to eight single link digital DVI/HDMI video sources.

The VIDMUX® DVI/HDMI video/audio switch enables one DVI/HDMI display and speakers to be switched between up to four single link digital DVI/HDMI video sources.

  • Supports DVI interface for crisp and clear video quality on flat panel display.
  • Supports HDTV resolutions up to 1080p and computer resolutions to 1920x1200 (WUXGA).
  • Eliminates redundant video displays.
  • Compliant with HDMI 1.3 standards (2- and 4-port models only).
  • Supports the DDC2B protocol.
  • 3.5 mm stereo audio input for each channel.
    • SE-DVI-8ARS: two-way audio support for speakers and microphone.
  • Passes HDMI audio signal through DVI-I port.
    • Transmit audio and video over a single cable with the DVI-HD-xx-MM male DVI-D to male HDMI cable.
  • Control via push button, infrared remote (IR) control, or optional RS232.
  • IR remote control includes power on/off, mute function, and break-away audio (switch audio independent of video).
  • HDCP compliant.
Audio/Video Input
  • Female DVI-I connectors.
  • 3.5 mm stereo audio jacks.
    • SE-DVI-8ARS: audio out/mic in for two-way audio support.
  • Compatible with computers and HDTV video sources (satellite receivers, DVD players, etc) with single link digital DVI outputs.
Audio/Video Output
  • One Female DVI-I connector.
  • One 3.5 mm stereo audio jack.
    • SE-DVI-8ARS: audio out/mic in for two-way audio support.
  • Single link DVI-D signal.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
Power
  • 100 to 240 VAC at 50 or 60 Hz via AC Adapter.
Dimensions (WxDxH)
  • SE-DVI-2/4A: 6.41x2.86x1.03 in (163x73x26 mm).
  • SE-DVI-2/4ARS: 6.46x2.77x1.55 in (164x70x39 mm).
  • SE-DVI-8ARS: 17.3x5.16x1.73 in (440x131x44 mm).
    • Includes 1RU rackmount kit.
Cables
  • SE-DVI-2A: Three 6" (152 mm) Male to Female Stereo Audio low profile extension cables included.
  • SE-DVI-4A: Five 6" (152 mm) Male to Female Stereo Audio low profile extension cables included.
  • SE-DVI-8ARS: 5' RJ45 CAT5 patch cable and DB9 female to RJ45 female adapter for RS232 connection.
  • Use DVI-HD-xx-MM DVI-D to HDMI interface cable to connect the video source or display with integrated speakers (not included).
Regulatory Approvals
  • CE, FCC
Warranty
  • Two years
Compatible NTI Products
  • Combine NTI's extenders, switches, splitters and cables for complex applications
    • DVI-I Single Link Interface Cable (DVI-IS-xx-MM)
    • DVI-D to HDMI Single Link Interface Cable (DVI-HD-xx-MM)
    • HDMI Video Splitter (VOPEX-HDS-x)
RS232 Control Option
  • Control
    • 2- and 4-port switches:
      • Female DB9 connector.
      • Add "RS" to the end of the part number to specify this option.
    • 8-port switch:
      • Female RJ45 connector.
        • 5' RJ45 CAT5 cable and DB9 female to RJ45 female adapter included.
    • Baud rate 300 through 9600.
  • Commands
    • RS – causes switch to reset so that IN1 connects to OUT1, IN2 connects to OUT2.
    • CS – causes one INx/OUTx connection to occur.
    • RO – reads what output is connected to specified input.
    • RU – reads size of switch, reports number of inputs and number of outputs on specified switch.
Push Button Control
  • 2- and 4-port switches:
    • Each button press changes the connected video and audio input to the next consecutive video and audio input.
      • Video and audio signals cannot be switched separately.
  • 8-port switch:
    • Each button, when pressed, changes the connected video and audio input to its corresponding source.
      • Video and audio signals can be independently switched.
IR Remote Control
  • Control can be done using the included IR remote control.
  • Independently switch video and audio signals.
  • Press any button in the Video or Audio section to switch the respective output to that input.
  • Press "Mute" button to disrupt the Audio Out signal (2- and 4-port models only).

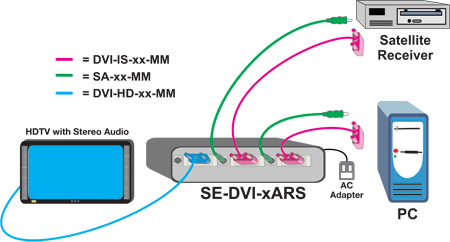

Application Drawings

  • DVI/HDMI Video Switch with Audio
    DVI/HDMI Video Switch with Audio
    How to share one DVI-D/HDMI monitor among multiple video sources.

Application Notes

  • Switch Between Two DVI Sources and Simultaneously Display the Same Image on Multiple HDMI Monitors.
    Switch Between Two DVI Sources and Simultaneously Display the Same Image on Multiple HDMI Monitors.

    Interconnect the VIDMUX® SE-DVI-2A DVI + Audio Switch with the VOPEX-HDS-x HDMI Video Splitter using a DVI to HDMI cable (DVI-HD-xx-MM) to switch between two DVI sources and simultaneously display the same image on up to 16 HDMI monitors.

  • "We received the SE-DVI-4ARS DVI Video Only switch with custom designed RMT-4-RS Remote Controller and had a chance to test it out. Once we corrected the serial cable pin-out, it works like a champ and will do exactly what we need. The front panel works for us without any changes. Thanks for all the hard work."

    Eric Khol
    SPAWARSYSCEN
    North Charleston, SC

DVI Switch

NTI Part # Supported Features # of Ports Price Quote Buy
SE-DVI-2A DVI + Audio 2 $125.00
SE-DVI-4A DVI + Audio 4 $140.00
SE-DVI-2ARS DVI + Audio + RS232 2 $225.00
SE-DVI-4ARS DVI + Audio + RS232 4 $280.00
SE-DVI-8ARS DVI + Audio + RS232 8 $555.00

DVI-D Male to HDMI-A Male Single Link Cable

NTI Part # Length Price Quote Buy
DVI-HD-1M-MM 1 meter $4.30
DVI-HD-2M-MM 2 meter $8.00
DVI-HD-3M-MM 3 meter $10.00
DVI-HD-15-MM 15 feet $11.00

DVI-I Male to Male Single Link Extension Cable

NTI Part # Length Price Quote Buy
DVI-IS-3-MM 3 feet $6.50
DVI-IS-6-MM 6 feet $10.35
DVI-IS-10-MM 10 feet $13.70
DVI-IS-15-MM 15 feet $16.60

Stereo Audio Cables – Male to Male

NTI Part # Length Price Quote Buy
SA-3-MM 3 ft $0.85
SA-6-MM 6 ft $1.10
SA-10-MM 10 ft $1.25
SA-15-MM 15 ft $2.25
SA-25-MM 25 ft $2.50
SA-35-MM 35 ft $4.70
SA-50-MM 50 ft $5.00
SA-100-MM 100 ft $12.00
