Rackmount KVM Drawer with High Density USB VGA KVM Switch – CAC Card Reader Compatible

Control up to 16 USB computers from 1RU of rack space.

Also known as: integrated USB KVM drawer USB switch, KVM switch built-in 1RU KVM drawer, rack mount USB KVM drawer switch, monitor switch KVM drawer, USB console drawer, keyboard monitor touchpad mouse drawer, keyboard LCD shelf, folding VGA monitor.

The RACKMUX USB KVM Drawer with Built-in High Density USB KVM Switch combines a rackmount LCD monitor, keyboard, touchpad mouse and a 4-, 8- or 16-port high density USB KVM switch in a space-saving 1RU industrial strength drawer.

RACKMUX-V17-N-16USBHDUT (Front & Back)

Product Highlights

  • Single-Person Installation
  • Two optional transparent USB connectors for USB touch screen monitors, CAC card readers, interactive whiteboards, etc.
  • Designed and Manufactured in the U.S.A.

Additional Images

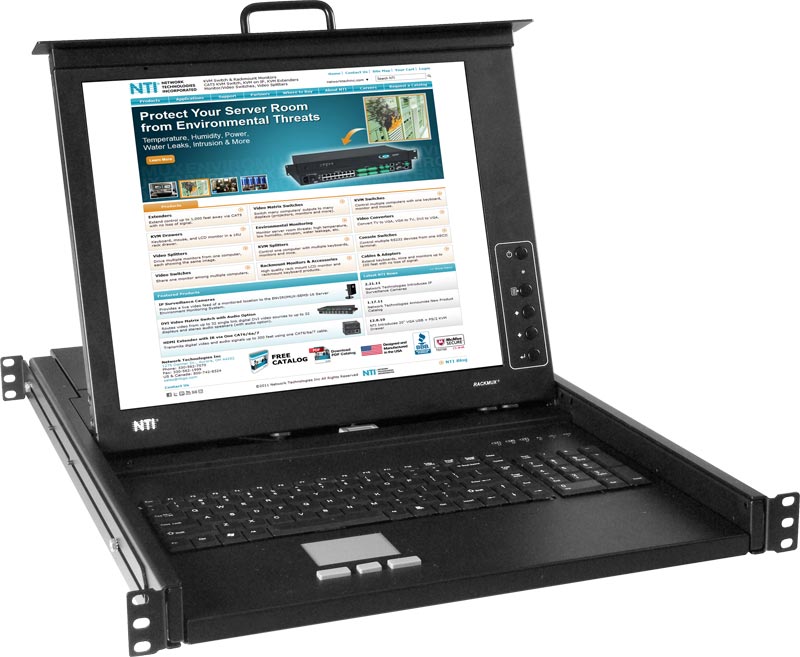

  • RACKMUX-V17-N-16USBHDUT (Front)

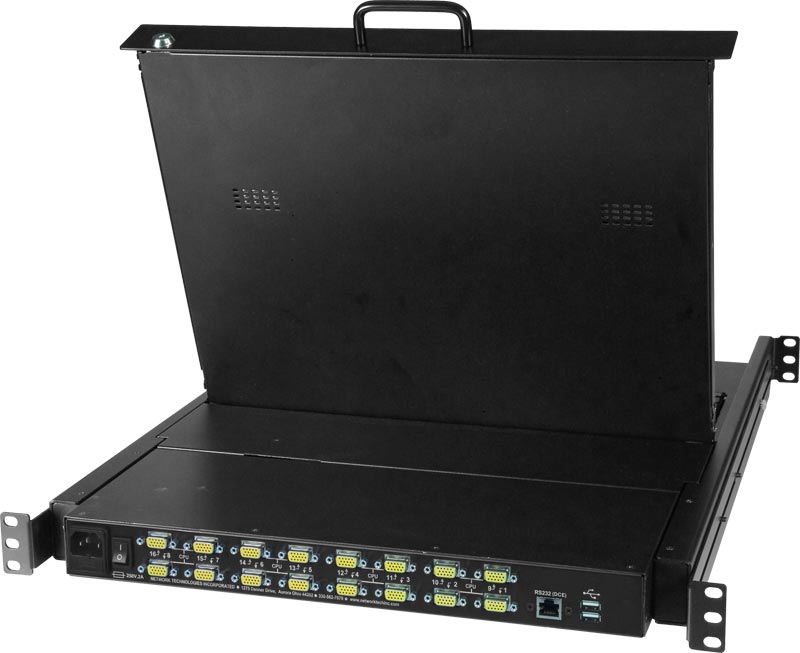

  • RACKMUX-V17-N-16USBHDUT (Back)
  • HDUSBVEXT-3/10/15-MM: Male 15-pin HD to Male 15-pin HD + Male USB Type A Interface Cable, Gray Cable Jacket
  • HDUSBVEXT-6-MM: Male 15-pin HD to Male 15-pin HD + Male USB Type A Interface Cable, Gray Cable Jacket

The RACKMUX® USB KVM Drawer with Built-in High Density USB KVM Switch combines a rackmount LCD monitor, keyboard, touchpad mouse and a 4-, 8- or 16-port high density USB KVM switch in a space-saving 1RU industrial strength drawer.

The RACKMUX® USB KVM Drawer with Built-in High Density USB KVM Switch combines a rackmount LCD monitor, keyboard, touchpad mouse and a 4-, 8- or 16-port high density USB KVM switch in a space-saving 1RU industrial strength drawer.

  • Forward-folding 17" TFT/LCD VGA monitor.
    • 1280x1024 video resolution for 17" monitor.
    • Optional high resolution 1920x1200 WUXGA 17.1" monitor available.
    • Tilt LCD up and back to adjust to any comfortable viewing angle to 120° for 17" models.
  • Control up to 16 USB computers (PC, SUN, and MAC) with VGA video.
  • Available with two optional transparent USB ports to connect any two external USB 1.1 (low/full speed) devices, such as a touch screen monitor, interactive white board, or CAC card reader.
  • Torque-friction hinges – monitor does not wobble, spring, or slam shut.
  • Designed to be a one-person job when installing the drawer.
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
  • Three-button touchpad mouse supports single-finger gestures.
  • LCD auto-shutoff in closed position.
  • Drawer locks into place when open to prevent it from sliding out of the rack.
    • Front quick-release latches for pushing the drawer back into the rack.
  • Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
  • Cabling runs are simplified with NTI's high density KVM switch cables.
  • Available with Sunlight Readable monitor (17" models only) – call an NTI Product Consultant for more information.
  • Available with optional 24VDC power.
Monitor
  • Forward-folding 17" Active Matrix TFT LCD flat panel VGA monitor.
  • Resolution:
    • RACKMUX-V17-N-xUSBHD(UT/-24V): 1280x1024
    • RACKMUX-V17HR-N-8USBHD-24V: 1920x1200
  • Tilt: up to 120°.
  • Frequency:
    • RACKMUX-V17-N-xUSBHD(UT/-24V):
      • Horizontal: 31 to 80 KHz
      • Vertical: 55 to 76 Hz.
    • RACKMUX-V17HR-N-8USBHD-24V:
      • Horizontal: 30 to 80 KHz
      • Vertical: 56 to 75 KHz
  • Brightness:
    • RACKMUX-V17-N-xUSBHD(UT/-24V): 300 nits
    • RACKMUX-V17HR-N-8USBHD-24V: 275 nits
  • Contrast Ratio:
    • RACKMUX-V17-N-xUSBHD(UT/-24V): 500:1
    • RACKMUX-V17HR-N-8USBHD-24V: 800:1
  • Supports DDC1 and DDC2B protocols.
  • OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
Power
  • 90 to 264 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)
  • AC input current:
    • RACKMUX-V17-N-16USBHDUT: 350mA
  • Power Consumption:
    • RACKMUX-V17-N-8USBHD: 40W
  • RACKMUX-V17-N-8USBHD-24V
    • 3-pin terminal block for 24V power source.
    • Accepts 18~36VDC (24VDC nominal).
    • For installation in a 24V Telecom environment.
MTBF
  • RACKMUX-V17-N-4USBHD: 35,904 hrs.
  • RACKMUX-V17-N-8USBHD: 35,089 hrs.
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and storage relative humidity: 20 to 90% non-condensing RH.
Dimensions
  • 17" (432 mm) Models WxDxH: 19x23.91x1.75 in. (483x607x44 mm)
    • Drawer is adjustable to various rack depths from 24" (610 mm) to 40" (1,016 mm) deep.
  • Handle adds an additional 1.5" (38 mm) to the depth when monitor is in closed position.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years
Package Includes
  • KVM Drawer
  • IEC Power Cord, country-specific (excluded in 24V models)
  • DB9 female to RJ45 female adapter
  • 5-ft CAT5 patch cable
  • Single-person installation mounting kit

17" (432 mm) Rackmount USB + PS2 KVM Drawer Specifications
UNIMUX High Density USB KVM Switch Specifications

Application Drawings

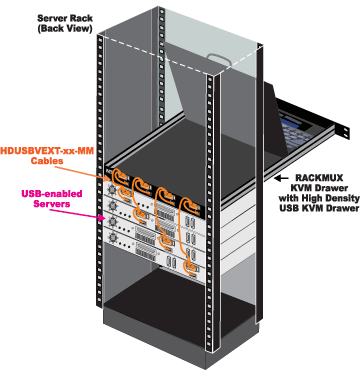

  • Rackmount KVM Drawer with High Density USB VGA KVM Switch – CAC Card Reader Compatible
    Rackmount KVM Drawer with High Density USB VGA KVM Switch – CAC Card Reader Compatible

CAD Drawings

  • Maximum Tilt Angle Diagram
    Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers
    Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers

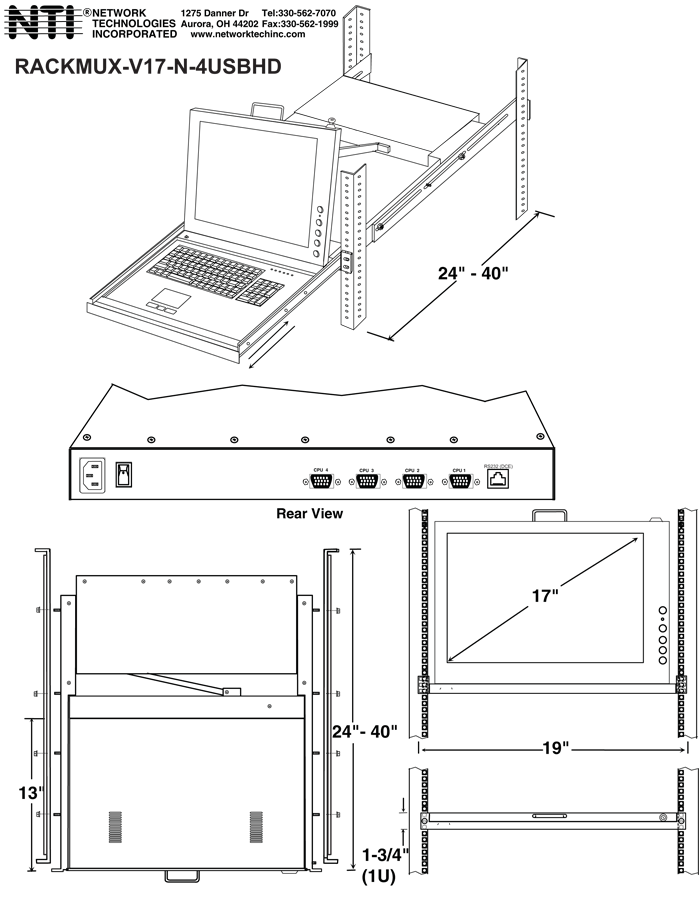

  • RACKMUX-V17-N-4USBHD
    RACKMUX-V17-N-4USBHD
    Rackmount 17 in. KVM Drawer with High Density USB VGA KVM Switch 4-port

KVM Drawers with High Density USB KVM Switch

NTI Part # Video
Resolution
# of CPUs Options Price Quote Buy
RACKMUX-V17-N-4USBHD 1280x1024 4 N/A $2,205.00
RACKMUX-V17-N-8USBHD 1280x1024 8 N/A $2,335.00
RACKMUX-V17-N-8USBHDUT 1280x1024 8 Transparent USB Ports $2,640.00
RACKMUX-V17-N-16USBHDUT 1280x1024 16 Transparent USB Ports $3,400.00
RACKMUX-V17-N-8USBHD-24V 1280x1024 8 24V Power $2,665.00
RACKMUX-V17HR-N-4USBHD 1920x1200 4 N/A $2,310.00
RACKMUX-V17HR-N-8USBHD 1920x1200 8 N/A $2,440.00
RACKMUX-V17HR-N-16USBHD 1920x1200 16 N/A $2,910.00
RACKMUX-V17HR-N-4USBHDUT 1920x1200 4 Transparent USB Ports $2,480.00
RACKMUX-V17HR-N-8USBHDUT 1920x1200 8 Transparent USB Ports $2,760.00
RACKMUX-V17HR-N-16USBHDUT 1920x1200 16 Transparent USB Ports $3,505.00
RACKMUX-V17HR-N-8USBHD-24V 1920x1200 8 High Resolution, 24V Power $2,770.00

Mounting Bracket for Two-Post Style Telco Rack

NTI Part # Description Price Quote Buy
RL-T15-TEL Mounting Bracket for Two-Post Style Telco Rack $25.00

Male 15-pin HD to Male 15-pin HD + Male USB Type A Interface Cable

NTI Part # Length Price Quote Buy
HDUSBVEXT-3-MM 3 ft $9.00
HDUSBVEXT-6-MM 6 ft $24.00
HDUSBVEXT-10-MM 10 ft $30.00
HDUSBVEXT-15-MM 15 ft $51.00
