Environment Monitoring System Leak Location Detection Sensors

Know the location where a water leak is occurring. Compatible with ENVIROMUX® E-2D, E-5D and
E-16D

Leak Location Detection Sensors

Addressable Leak Detection Sensor

Addressable Leak Detection Sensor
E-ALDS

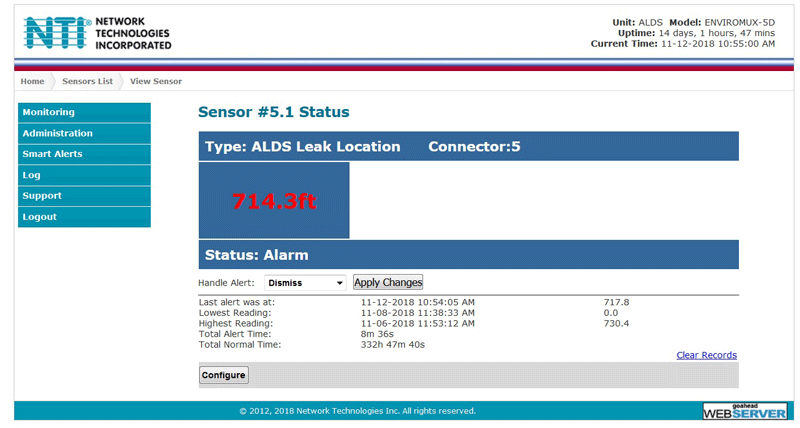

  • Sensor in alarm state - leak detected at 714.3 feet

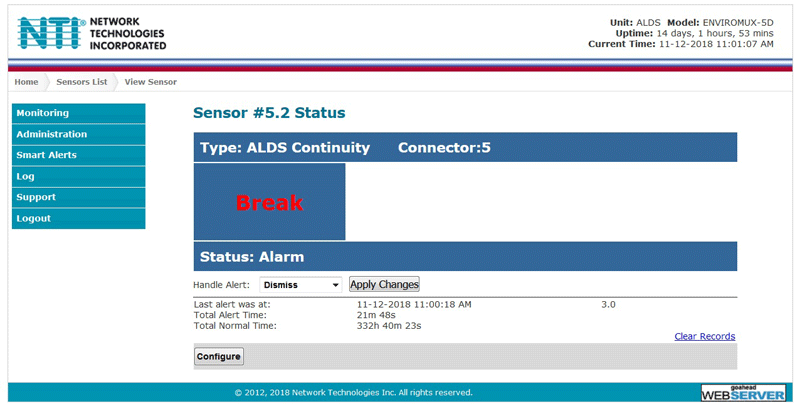

  • Sensor in alarm state - a continuity break is detected

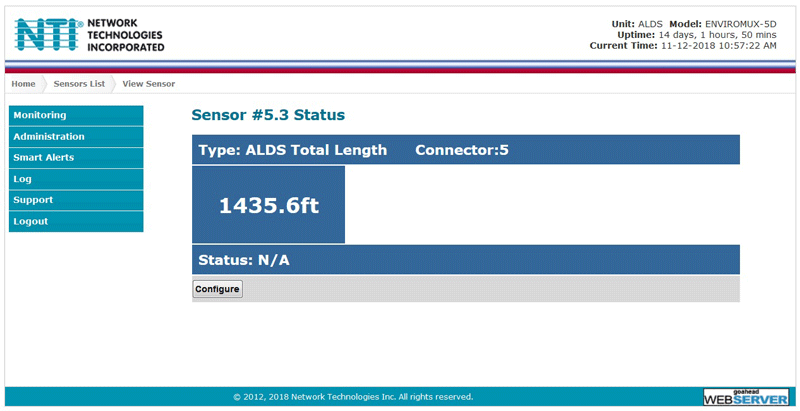

  • Status page displaying total length of liquid sensing cable connected
  • Monitors up to 4,000 feet of E-LDDC-x Liquid Location Detection Sensor Cable.
    • Detects the specific location of liquid presence.
      • If multiple leaks are occurring at the same time, you will receive notification of the location for the leak closest to E-ALDS. Once that leak is cleared, you will receive notification of the next leak closest to the E-ALDS. This will continue until all leaks are cleared.
    • Detects if there is a break in the cable.
  • Supports up to 1,000 feet of E-4WNSC-x non-sensing cable.
  • Leak location accuracy:
    • 20 to 1,500 feet: ±(1ft + 0.5% of sensing cable length).
    • 1,500 to 4,000 feet: ±1% of sensing cable length.
  • Built-in Piezo buzzer emits loud beeps to alert personnel.
    • Output level: 70dB at 1 foot
  • Max current consumption: 13mA @ 5VDC, 18mA@12VDC
  • Powered by E-2D/5D/16D.
  • Compatible with E-2D/5D/16D.
    • Interfaces with the E-2D/5D/16D via the RJ45 sensor port
    • Extend up to 500 feet from the E-2D/5D/16D
  • M12 4-pin connector for connecting E-LDDC-x Liquid Location Detection Sensor Cable or E-4WNSC-x Non-Sensing Cable
  • Dimensions WxDxH: 3.21x2.5x1.22 in (82x64x31 mm)
  • Operating temperature: 32 to 158°F (0 to 70°C).
  • Regulatory approvals: CE, RoHS
  • Integrated mounting brackets for easy surface/wall mounting.
  • Use the included terminator at the end of the E-LDDC-x Liquid Location Detection Sensor Cable
    • If the terminator is not used, the system will register a cable break.
NTI Part # Description Price Quote Buy
E-ALDS Addressable Leak Detection Sensor $160.00

Liquid Location Detection Sensor Cable

E-LLDSC - Liquid Location Detection Sensor Cable
E-LLDC-xx
  • For detecting water presence at a specific location.
  • 100% waterproof electronics.
  • Detects any conductive liquid.
  • Minimum puddle: 0.6" (15 mm) diameter.
  • Detects liquid depth >0.1" (2.5 mm).
  • M12 4-pin connectors.
  • Available lengths: 10/25/50/100 feet and custom lengths up to 4,000 feet.
    • Contact an NTI product consultant for custom cable lengths
  • Bend radius: 0.375" (9.53 mm)
  • Operating temperature: 32 to 167°F (0 to 75°C).
  • Regulatory approvals: CE, RoHS
  • MTBF: 10,869,188 hrs
  • Compatible with E-ALDS Addressable Leak Detection Sensor.
  • Use self-adhesive clips (E-CLPxx-LD) to prevent sensor rope cable from shifting after installation
Downloads & References

$86 + $8 per foot of Water Sensor Cable

NTI Part # Description Price Quote Buy
E-LLDC-10 Liquid Location Detection Sensor Cable, 10 feet $166.00
E-LLDC-25 Liquid Location Detection Sensor Cable, 25 feet $286.00
E-LLDC-50 Liquid Location Detection Sensor Cable, 50 feet $486.00
E-LLDC-100 Liquid Location Detection Sensor Cable,100 feet $886.00
NTI Part # Description Price Quote Buy
E-CLP10-LD Self-Adhesive Clips for Liquid Sensor Rope, 10-pack $7.15
E-CLP100-LD Self-Adhesive Clips for Liquid Sensor Rope, 100-pack $64.35

4-Wire Non-Sensing Cable

E-4WNSC - 4-Wire Non-Sensing Cable
E-4WNSC-xx
  • For use in areas where E-LLDS-xx sensing cable is not required.
  • Available lengths: 10/25/50/100 feet and custom lengths up to 1,000 feet.
    • Contact an NTI product consultant for custom cable lengths
  • M12 4-pin connectors.
  • 22 AWG stranded bare copper conductors.
  • Color-coded plenum-grade PVC insulation.
  • Plenum-grade PVC jacket.
  • Cable diameter: 0.136 in
  • Operating temperature: 14 to 140°F (-10 to 60°C)
  • Will ship in either white or gray.
  • Regulatory approvals: CE, RoHS
  • Compatible with E-ALDS Addressable Leak Detection Sensor and E-LLDC-xx Liquid Location Detection Sensor Cables.
Downloads & References

$82 + $0.60 per foot of Non-Sensing Cable

NTI Part # Description Price Quote Buy
E-4WNSC-10 4-Wire Non-Sensing Cable, 10 feet $88.00
E-4WNSC-25 4-Wire Non-Sensing Cable, 25 feet $97.00
E-4WNSC-50 4-Wire Non-Sensing Cable, 50 feet $112.00
E-4WNSC-100 4-Wire Non-Sensing Cable, 100 feet $142.00
