4K 30Hz DisplayPort USB KVM HDBaseT Extender via CATx Cable with RS232

Extend Ultra-HD 4Kx2K 30Hz 4:4:4 DisplayPort display, audio, 4 USB devices, and RS232 up to 328 feet away from the source using HDBaseT technology.

4K DisplayPort USB KVM Extender via CATx Cable with RS232

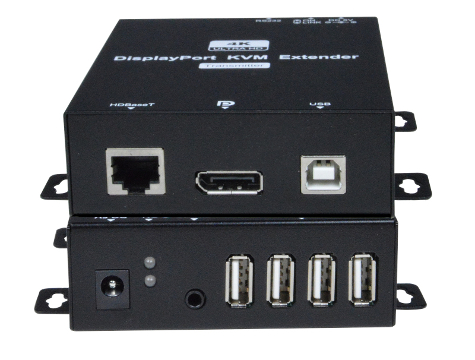

XTENDEX® ST-C6USBDP4K-328 (Local & Remote Unit)

Additional Images

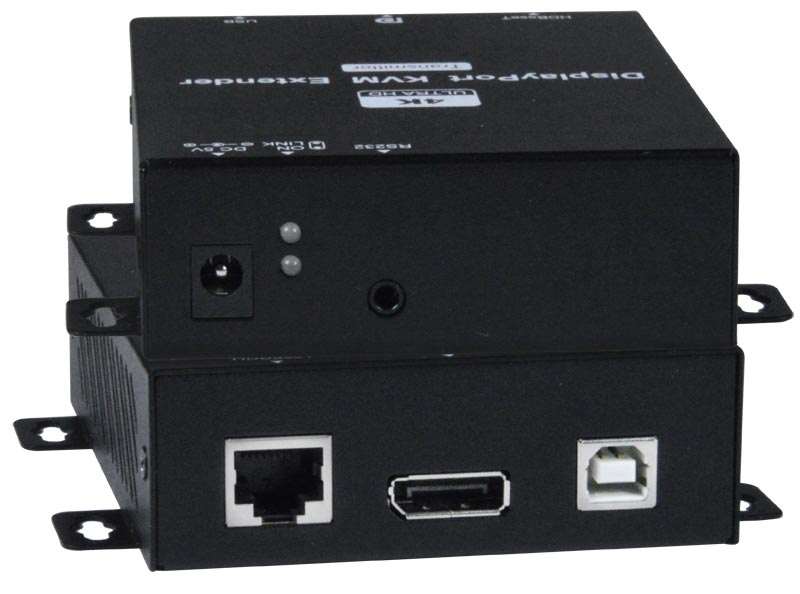

  • ST-C6USBDP4K-328 – Transmitter

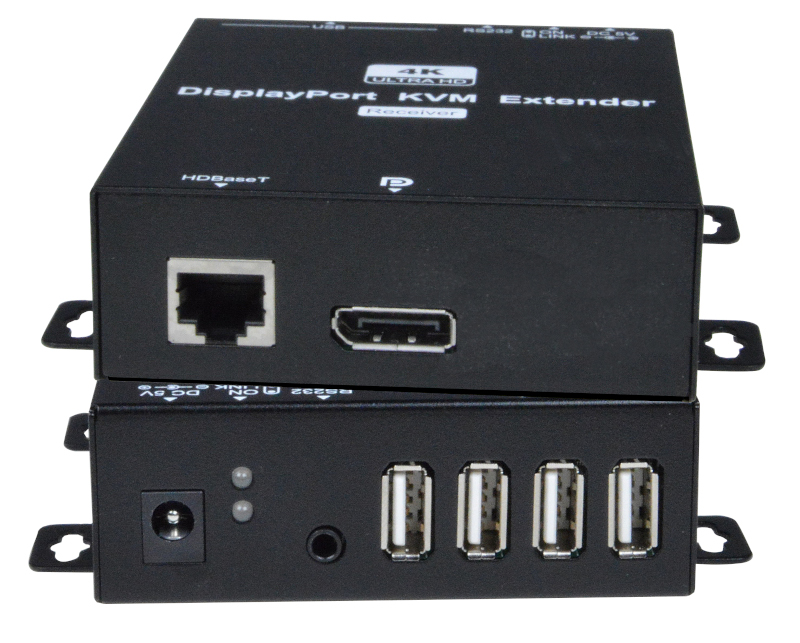

  • ST-C6USBDP4K-328 – Receiver

Product Highlights

  • Extend Ultra-HD 4Kx2K 30Hz to 328 feet & 1080p to 492 feet
  • Transparent USB 2.0 Extension
  • RS232
  • Uses HDBaseT technology.
  • HDMI Extender for use with Digital Signage

The XTENDEX® 4K DisplayPort USB KVM HDBaseT Extender transmits uncompressed digital Ultra-HD 4Kx2K 30Hz 4:4:4 DisplayPort signal, transparent USB, and RS232 up to 328 feet over a single CATx cable using HDBaseT technology. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to a UHD DisplayPort display and four USB 2.0 devices.

The XTENDEX® 4K DisplayPort USB KVM HDBaseT Extender transmits uncompressed digital Ultra-HD 4Kx2K 30Hz 4:4:4 DisplayPort signal, transparent USB, and RS232 up to 328 feet over a single CATx cable using HDBaseT technology. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to a UHD DisplayPort display and four USB 2.0 devices.

  • Transmits an uncompressed high speed DisplayPort signal over one CAT6/6a/7 cable.
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @30Hz YUV 4:4:4, HDTV resolutions to 1080p @60Hz, and up to 1920x1200 (WUXGA).
    • Extend 4Kx2K up to 328 feet (100 meters) over a CAT6/6a/7 cable.
    • Extend 1080p and 1920x1200 up to 492 feet (150 meters) over CAT6/6a/7 cable.
  • DisplayPort features supported:
    • DisplayPort 1.2a
    • 48-bit Color
    • RGB, YCbCr 4:4:4
    • LPCM, Dolby TrueHD, and DTS-HD Master Audio
    • 3D
    • Does NOT support MST.
  • HDCP compliant.
  • Four USB 2.0 ports support fully transparent USB connections.
    • Extend USB devices such as a keyboard, mouse, game controller, USB flash drive, touch screen monitor, whiteboard, etc.
    • Compliant with USB 2.0 (low/full/high speed) standards.
  • Supports full-duplex RS232 at 115200 baud.
  • Integrated mounting brackets for easy surface/wall mounting.
Local Unit
  • Compatible with a USB computer or UHD video source with DisplayPort output.
  • Multiplatform support: Windows 7/10/11, Linux, and MAC OS 10/11/12.
  • One female DisplayPort connector.
  • One female USB Type B connector.
  • One female 3.5 mm port for RS232 connection.
  • One female RJ45 port for sending/receiving UHD video, audio, USB, and RS232 signals.
  • HDCP compliant.
Remote Unit
  • One female DisplayPort connector for display.
  • Four female USB Type A connectors.
    • Transparent data extension.
    • Supports high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices - keyboard, mouse, game controller, USB flash drive, touch screen monitor, whiteboard, etc.
  • One female 3.5 mm port for RS232 connection.
    • Support full-duplex RS232 up to 115200 baud.
  • One female RJ45 port for sending/receiving UHD video, audio, USB, and RS232 signals.
  • Supported video resolutions:
    • Ultra-HD 4Kx2K 4:4:4 resolutions (4096x2160 and 3840x2160) @30Hz
    • HDTV resolutions to 1080p @60Hz
    • Up to 1920x1200 (WUXGA)
  • Supports embedded digital audio through DisplayPort compatible displays or audio receivers.
  • HDCP compliant.
Dimensions
  • WxDxH (in): 4.31x4.31x1.18 (109x109x30 mm)
Power
  • Local unit:
    • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter (US AC adapters included).
      • Optional universal power plug adapters available (not included)
    • Output: 5VDC, 2A
  • Remote unit:
    • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter (US AC adapters included).
      • Optional universal power plug adapters available (not included)
    • Output: 5VDC, 4A
    • The current passing through each USB port cannot exceed 0.5A.
Environmental
  • Operating temperature: 14 to 113°F (-10 to 45°C).
  • Storage temperature: -22 to 167°F (-30 to 75°C).
  • Operating/storage relative humidity: up to 95% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years
Max Distance
  • Extend 4Kx2K up to 328 feet (100 meters) over CAT6/6a/7.
  • Extend 1080p up to 492 feet (150 meters) over CAT6/6a/7.
Cables
  • Interface cables between the source/display and the transmitter/receiver are required for proper operation.
  • Use DP-xx-MM to connect a DisplayPort source or display up to 15 feet (not included).
  • Use DP4K21GB-FO-xxM-MM to connect a DisplayPort source or display up to 100 meters (not included).
  • Use CAT6/6a/7 solid straight through cables for TIA/EIA 568B wiring terminated with standard RJ45 connectors (not included).
  • One male USB Type A to male USB Type B interface cable included.
  • One male 3.5mm to female DB9 RS232 cable included.
  • One male 3.5mm to male DB9 RS232 cable included.

Application Drawings

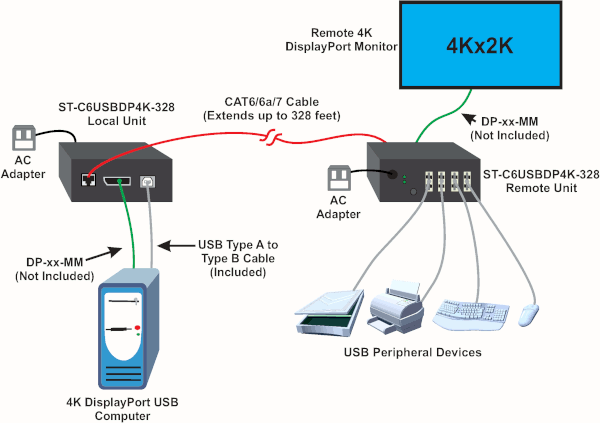

  • 4K 30Hz DisplayPort USB KVM HDBaseT Extender via CATx Cable with RS232
    4K DisplayPort USB KVM HDBaseT Extender via CATx Cable with RS232
    How to extend Ultra-HD 4Kx2K 30Hz 4:4:4 DisplayPort display, audio, 4 USB devices, and RS232 up to 328 feet away from the source

4K 30Hz DisplayPort USB KVM HDBaseT Extender via CATx Cable with RS232
